7000m3 Pump Water Flow Siemens PLC Hydraulic 28inch Cutter Suction Dredger for Dredging
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Siemens PLC Hydraulic 28inch water flow 7000m3 cutter suction dredger
1. 28 inch cutter suction dredger parameter :
| Item | Parameter | Remark |
| Dredging depth | 20m | Add undereater pump can reach the 30meter |
| Solid capacity | 1400m3 | According to 20% concentration to count |
| Discharge distance | 2200m | Add the booster station can reach the long distance transportation |
| Load draft | 2m | |
| Total weight | 700t | |
| Toal length | 45m | |
| Total width | 9.8m | |
| Total depth | 3.6m | it means the dimension is from bottom to the deck |
| Bottom plate thickness | 14mm | CCS Standard |
| Front and back plate thickness | 20mm | |
| Side plate thickness | 12mm | |
| Deck plate thickness | 12mm | |
| Pump brand | Shijiazhuang industrial pump factory | According to the customer's request to choose the brand |
| Water flow | 7000m3 | we can do the over 20000m3 cutter suction dredger |
| Head | 64m | |
| Rotate speed | 400r/m | |
| Efficiency | 81.50% | |
| Suction /Discharge pipe diameter | 600mm | Diameter is not changeless according to the anthentic situation to choice . |
| Main engien brand and power | Cummins 3000kw | Can provide CAT .Weichai so on diesel engine brand |
| Rotate speed | 1900r | Rotate speed is adjustable |
| Auxiliary diesle engine and brand | Cummins 1000kw | Can provide CAT .Weichai so on diesel engine brand |
| Driving Pump and hydraulic system gerbox Brand | Hangzhou Fada | |
| Sup diameter *wall thickness | 860mm*25mm | |
| Weight | 700ton | |
| Lifting winch first layer pull | 200KN | |
| Wire rope diameter | 28mm | |
| Swing winch first layer pull | 160KN | |
| Wire rope diameter | 26mm | |
| Anchor boom length | 18m | |
| Spud carriage stroke | 6m-8m | |
| Spund carriage pontoon length | 12m |

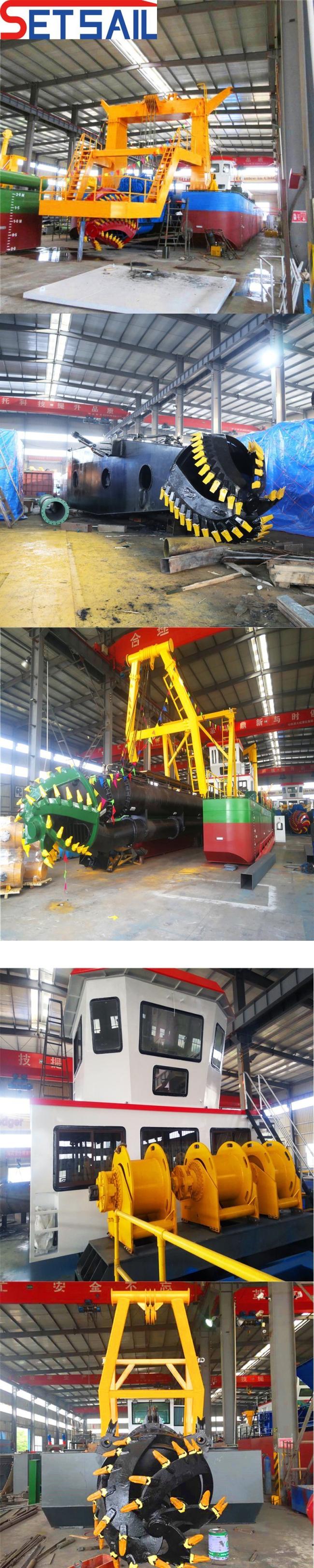

2. Cutter suction dredger shows :
3. Set sail cutter suction dredger feature :
| 1 | A wide range of use applications. General used for river. lake .sea .reservoir .and inland waterway so on |
| 2 | Full hydraulic control with Rexroth. Vickers . all brand from the abroad . |
| 3 | Siemens PLC operation with the operation convenience.modular control all data in the one place. |
| 4 | Dredger components available in factories to allow short delivery times . all conponents is tested serious . |
| 5 | Follow manufacture guideline: CCS-ZC standard .all process can reach the international standard. |
| 6 | Western Dredge brand parts. easy to find globally . All the accessories have overseas service points |
| 7 | Optional equipment is available such as Spud carriage, anchor boom. underwater pump so on . |
| 8 | Gain access to our sales team. design team. manufacture team 24/7. help the customers solves failure in time. |
| 9 | The modular design enables fast assembly with seniors engineers . |

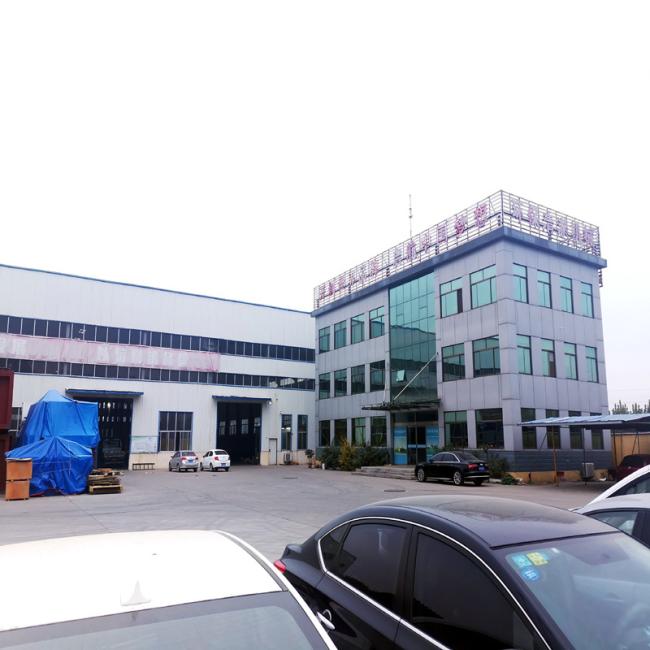

4.About Set Sail dredger factory:
| 1 | 30 years' dredger manufacture workmanship. especially large water flow dredger field . |
| 2 | Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger. |
| 3 | Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service . |
| 4 | 6 manufacture shops .R&D center, testing pool. |
| 5 | Large production. ISO 9001 2015 quality system. CE certification so on . |
| 6 | Presences more than 40 countries. |
5. Customer visit our factory :

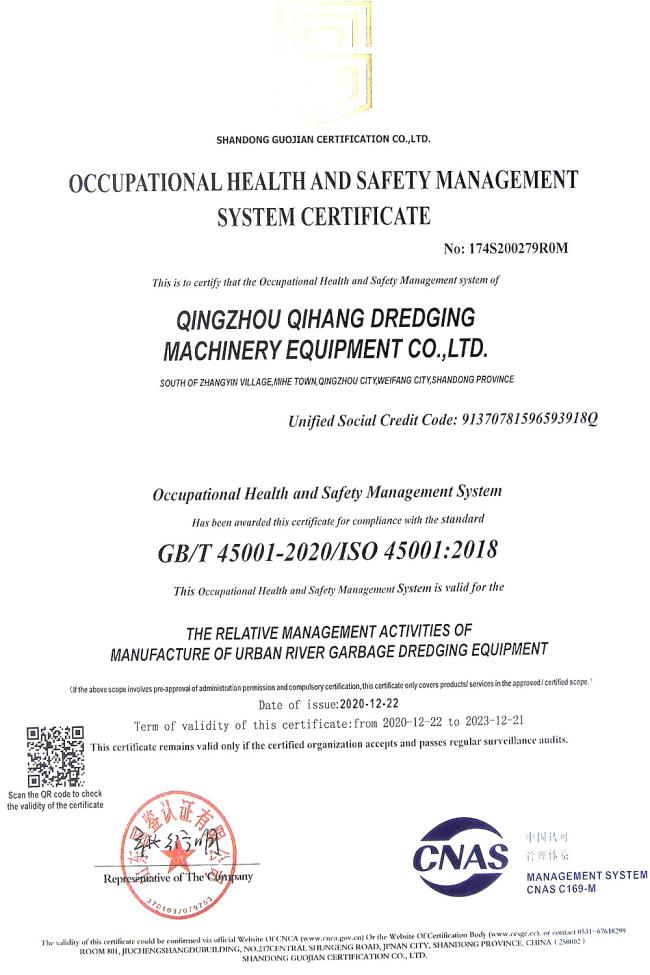

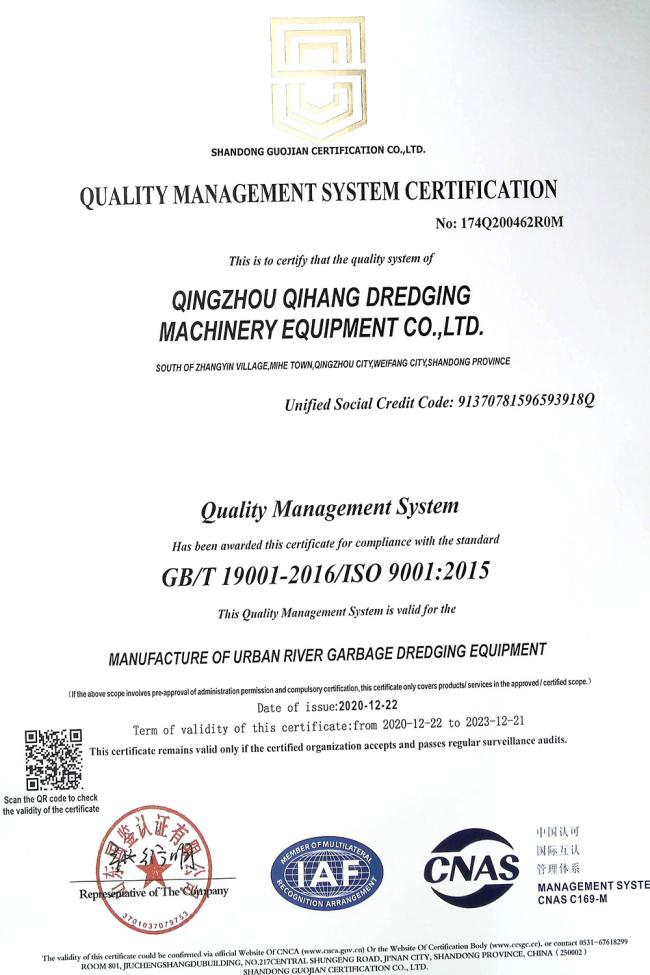

6. Certification :

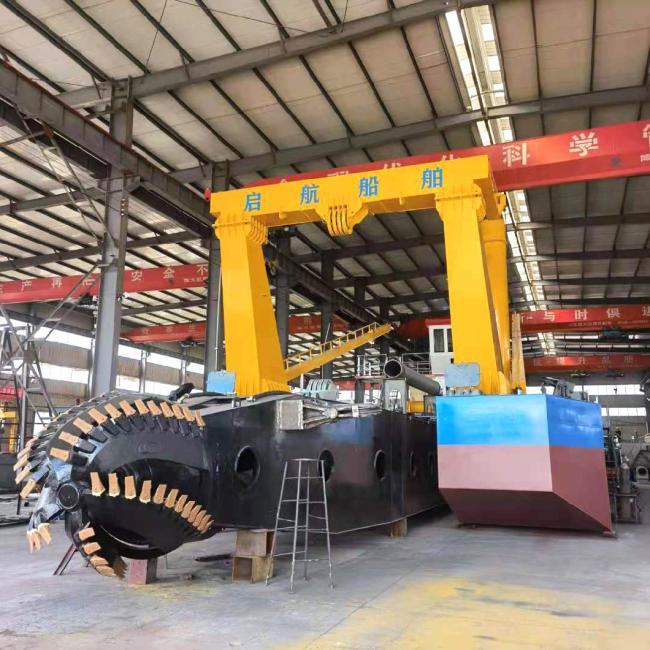

7. Main product picture :
6.FAQ:
Q1: Is Set Sail a reliable company?
Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd. is located in Qingzhou City, Shandong Province, is a high-tech enterprise focusing on the investment, consultation, designing, manufacturing, assembly and operation management of environmental protection projects and machinery with more than 20 years' experience. Our factory covers 6000 m2 and has more than 100 employees.
Q2: What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual requests.
Set Sail always has various dredgers, aquatic weed harvesters etc. in stock. Spare parts are available too. Thus the delivery time can be shortened.
Q3: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.
Q4: What's the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty peride.
Q5: Why choose Set Sail company?
We are factory, so we can design and manufacture the suitable dredger, water cleaning boat, mining machinery according to clients' requirements, and our equipment have good quality and competitive price.
