32 Inch Diesel Engine Cutter Suction Sand Dredger with PLC and ABB Electric System
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description

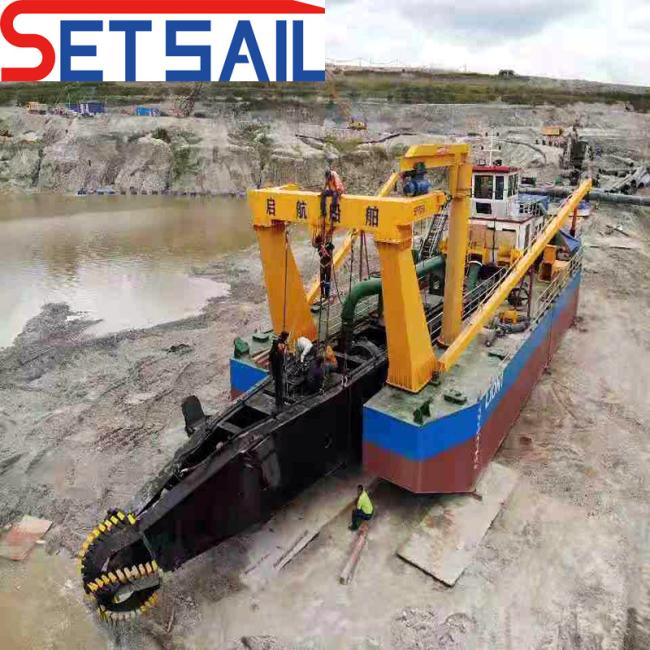

Diesel engine power 32 inch cutter suction sand dredger
1. Company profile:

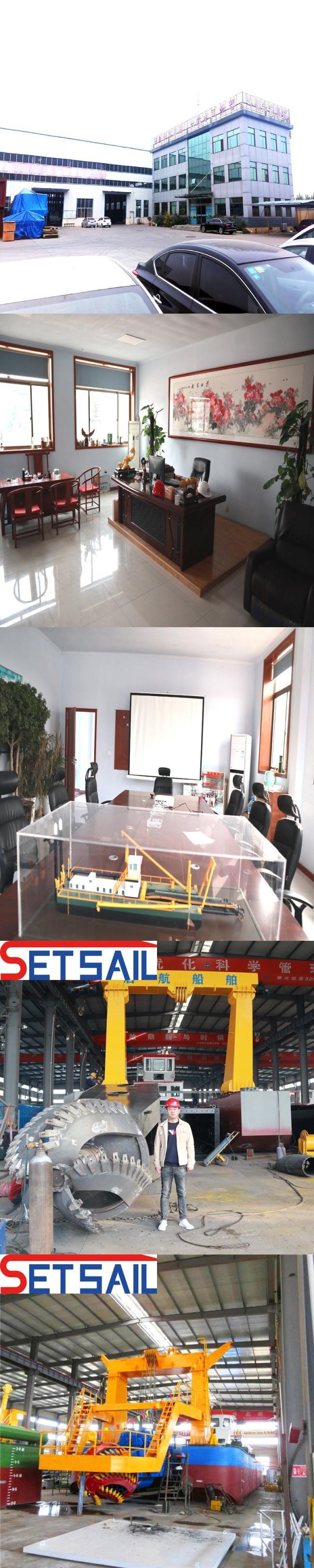

| Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd .our factory is one of China leading company of sand & gold& diamond mining equipments. has more than 25 years' experience in designing.producing.selling cutter suction dredger. jet suction dredger. bucket chain dredger. diamond/gold dredgers. sand washing plant. gold washing plant. sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Afrrica.South America.Middle Easr and other regions. As for more information about our company and products,Please serach https://dredgerfactory.en.made-in-china.com |

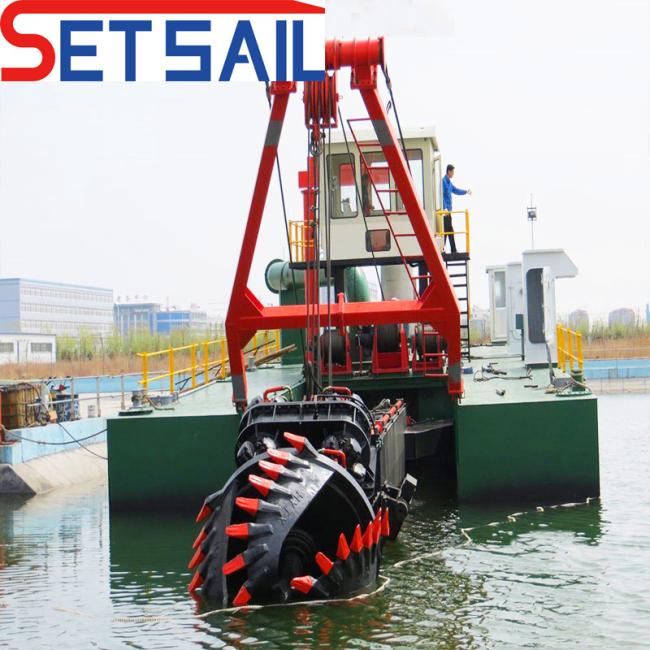

2. Cutter suction dredger introduce :
32 inch cutter suction dredger is the large cutter suction dredger form our factory .it is widely used in the river .lake .sea . reservoir so on large dredging project . all configuration device from the famous state owned factory and abroad . diesel engine and electric power can avaliable for dredger . hydraulic and Siemens PLC control all dredger .equiped flowmeter .concentration meter and monitor system so on . a lots of optional installation:anchor boom . trolley so on . it is can reach the high capacity and long continue working time and long discharge distance .
| Cutter Suction Dredgers are of the highest possible quality. ensuring a long lifetime with a minimum of maintenance. The maxmum capacity of 32 inch dredger can reach to from 1800-2700 m3 water flow can go up to 9000 m³/h, and digging depth to 1-25 meters, discharge distance to 200-3000 meters. |
Set sail cutter suction dredger used the all famous device . Cummins diesel engine , Shijiazhuang slurry pump Germany hydraulic pump Siemens PLC so on . use the hydraulic control the cutter head to improve the concentration to add the output . High pressure slurry pump through the suction pump the get the mixture of sand and mud from the river lake sea or reservoir so on ,then use the discharge pipe transfer the mixture to the land . Slurry pump power the normal from the diesel engine . especially according to the working situation and the requirement of customer power can designed electric . cutter head deck crane anchor rod and all of hydraulic winch. all of electrical equipment form the Siemens to control all . use the winch to control the cutter head to sector work of right and left.3. 32 inch cutter suction dredger parameter:
| Total length | 46m |
| Hull size | 35*10.2*2.7m |
| Discharge pipe diameter | 800mm |
| Water flow | 9000m3/h |
| solid capacity | 1350m3-1800m3 |
| Discharge distance | 1500m |
| Cutter head diameter | 2400mm |
| Cutter head power | 450kw |
| Draught | 1.6m |
| Displacement | 477ton |
| Total weight | 380ton |
| Main engine power | Cummins 2427kw |
| Auxiliary engine power | Cummins 736kw |
| Total fuel consumption | 547 litre |
| Hydraulic control system | Rexroth |
| Electric control system | Siemens PLC |
4. Product advantage :
| 1 | Relable and high efficiency-improtant device is international brand |
| 2 | After sales service -engineer in the working site for installation and training ,24/7 technical support . |
| 3 | Provide free spare part for a year. then cost to offer service and spare part |
| 4 | Can dismantled and easy transportation |

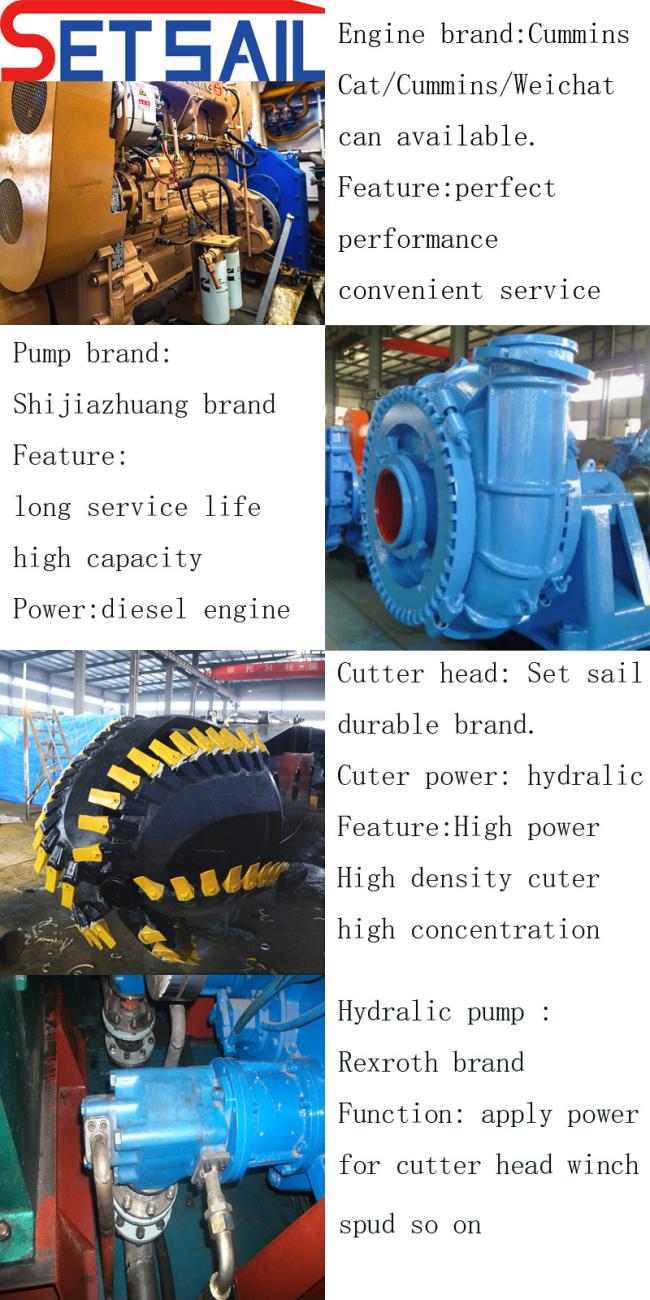

Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
5.our service :Set Sail Services intends to provide added value to a Set Sail vessel. whether this involves a single service or a complete package such as integrated logistics support or a long-term service agreement.
6. Certification:
7. other information :
