32 Inch Customized Cutter Suction Dredger with Hydraulic Pump and 450kw Cutter Power
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Customized 32 inch cutter suction dredger with hydraulic pump
1. Company profile: | Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd .our factory is one of China leading company of sand & gold& diamond mining equipments. has more than 25 years' experience in designing.producing.selling cutter suction dredger. jet suction dredger. bucket chain dredger. diamond/gold dredgers. sand washing plant. gold washing plant. sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Afrrica.South America.Middle Easr and other regions. As for more information about our company and products,Please serach https://dredgerfactory.en.made-in-china.com |
2. Cutter suction dredger introduce :
| Cutter Suction Dredgers are of the highest possible quality. ensuring a long lifetime with a minimum of maintenance. The maxmum capacity of 32 inch dredger can reach to from 1800-2700 m3 water flow can go up to 9000 m³/h, and digging depth to 1-25 meters, discharge distance to 200-3000 meters. |
3. 32 inch cutter suction dredger parameter:
| Total length | 46m |
| Hull size | 35*10.2*2.7m |
| Discharge pipe diameter | 800mm |
| Water flow | 9000m3/h |
| solid capacity | 1350m3-1800m3 |
| Discharge distance | 1500m |
| Cutter head diameter | 2400mm |
| Cutter head power | 450kw |
| Draught | 1.6m |
| Displacement | 477ton |
| Total weight | 380ton |
| Main engine power | Cumins 2427kw |
| Auxiliary engine power | Cumins 736kw |
| Total fuel consumption | 547 litre |

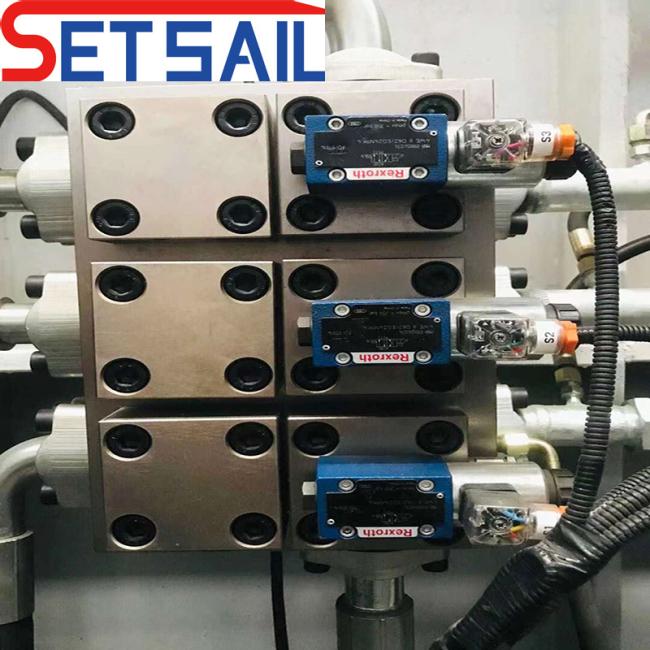

| Hydraulic control system | Rexroth |
| Electric control system | Siemens PLC |
4. Product advantage :
| 1 | Relable and high efficiency-improtant device is international brand |
| 2 | After sales service -engineer in the working site for installation and training ,24/7 technical support . |
| 3 | Provide free spare part for a year. then cost to offer service and spare part |
| 4 | Can dismantled and easy transportation |
5.our service :
Set Sail Services intends to provide added value to a Set Sail vessel. whether this involves a single service or a complete package such as integrated logistics support or a long-term service agreement.
6. Certification:
7. other information :
8.FAQ: Q1, Is Set Sail a factory or trading company?
A: Set Sail - Qingzhou Set Sail Dredging Equipment Equipment Co., Ltd is a leading dredger manufacturer in China, we have 6 factories and over 100 workers to enable large production.
Q2, What are the services the Set Sail company is providing?
A: Free dredger consultation, drawing design, customization, on-site visits, 24/7 availability, free assembly, training, operation testing, and lifetime technical assistance.
Q3, What are the delivery terms?
A: Set Sail Dredger delivery can be in containers or in bulk depends on the dredger size. Set Sail has in-stock dredgers, and constantly storing dredger parts, pipes, pontoons, to shorten the delivery period for special needs.
Q3, What about the payment terms?
A: Payment can be paid in T/T or L/C, payment terms and financial support can be discussed.
Q4, What are the warranty terms?
A: Set Sail provides a standard 1-year warranty, free problem solving with lifetime technical assistance
Q5, Why you say Set Sail is your trustworthy dredger manufacturer?
A: Set Sail is a trustworthy dredger manufacturer because we have 30 years' manufacturer workmanship, trusted by many Fortune 500 companies globally. Set Sail continuing to innovate and develop new products such as amphibious dredger, salt mining dredger and more, upgrades existing dredger technology. Our engineers and designers are hired from prestigious dredger institutions in China. Our products are working in more than 40 countries so far and have 6 global offices to better serve our clients.
