20inch River Sand Dredger with 2000mm Cutter Head Diameter and 5000m3 Water Flow
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Hydraulic diesel engine water flow 5000m3 20inch river sand dredger
| Set sail cutter suction dredger has self-propelled or non self-Propelled portable cutter suction dredger .hull adopts dismantled and re-assemble with box structure. Cutter suction dredger are made of swing winch lifting winch cutter ladder spud device deck crane hydraulic control system PLC system etc. Cutter suction dredger are used widely in sand dredging river dredging lake dredging reservoir desilting waterway dredging and port construction etc |
1.Production description :
| 1. Cutter Suction Dredger of steel construction, the non self-propelled and self-propelled dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers. The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China. |
| 2. It's hull consists of a main pontoon and two side pontoons. Is to be easy to dismantle or mount for transportation by road, rail or water, and is to be easy to reassemble at project site. The engines and dredge pump are located in the center pontoon, the 2 side pontoons serve as fuel bunkers, ballast tanks and store. |
| 3. The dredger is powered by diesel engines. The main diesel engine is to drive the dredge pump and the auxiliary engine is to drive hydraulic system, including cutter, swing and ladder winches, anchor winches, and the spud rams etc. |
| 4. The spacious control cabin is ergonomically designed with 360 degree view. All the operation buttons, swifts, indicators, gauges are equipped on the control desk. Only one worker can control all the dredger in the operation room. |
| 5. The dredger is painted by 4 layers of marine paint to protect from the corrosion. The ZINC anode can be used to give better anti-corrosion function. |
2.Factory part:
| Set sail factory is found in 1992 . it is one of the leader of china dredging machinery equipment industrial. We have manufacture experience more than 20 years so far. Our mainly product : all kinds power of cutter suction dredger (electric hydraulic ) jet suction dredger trailing suction dredger wheel suction dredger chain bucket dredger chain bucket mining dredger land mining machinery multi-function service working boat sand transportation boat sand wishing machinery etc. We can according to customers requirement to make the design and customize the product . |

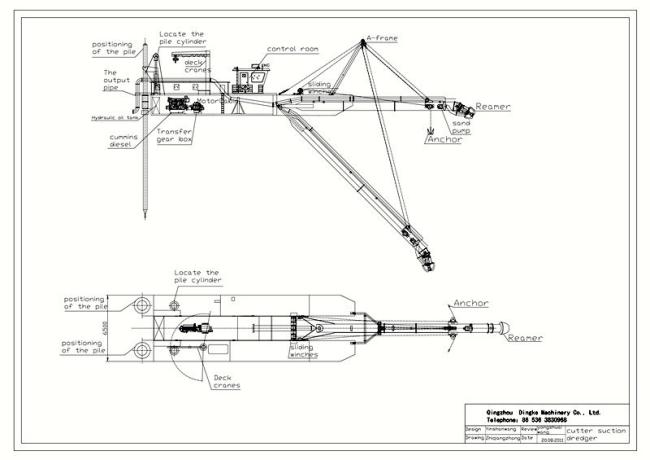

3.Principle drawing :
| Simple to introduce the principle : Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together) |
3. product :( from produce start to the end ) :
| From the product start we purchase the CCS standard plate and to others original material to ready for manufacture .all device adopts high quality and famous brand . normal diesel engine from American Cumins.we can offer the other engine brand Cater . Wechai so on .Slurry pump from Shijiazhuang industrial pump . Siemens PLC system . Hydraulic system from Germany Rexroth etc. |
4.Detailed information :
| set sail workers try the best do each detail perfect from the point to the face . provide the high quality to our customer let customers spend the lowest cost the get the biggest value. We can offer timely and high efficiency service let our customer do not worry anything . |

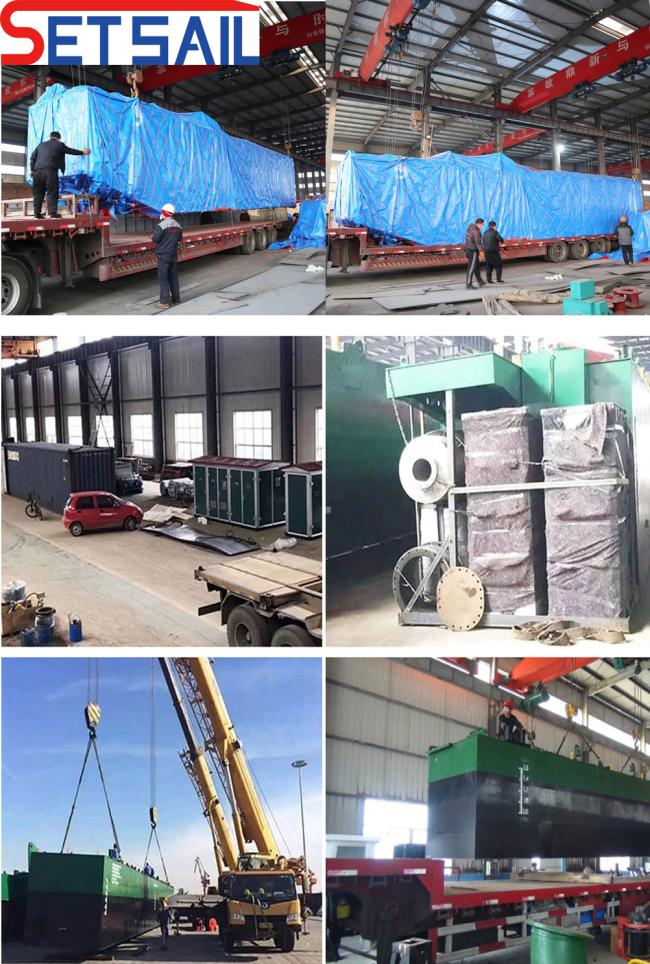

5.Packaging and transportation detail shows:
6.20 inch basic parameter:
| Item / Information | Diesel power water flow 5000m3 20 inch cutter suction dredger |
| Maily electric motor power | 1342kw |
| Auxiliary electric motor power | 582kw |
| Water flow | 5000m3 |
| Concentration | 20% |
| Capacity | 1000m3/h |
| Cutter head diameter | 2000mm |
| Cutter head power | 260 kw |
| Cutter teeth quantity | 50 piece |
Cutter head motor brand | XHS7C7-4300*5.5 |
| Pump size | 500ND |
| Dreding depth | 18m |
| Discharge distance | 1500m |
| Hydraulic brand | Rexroth |
| PLC | Siemens |
| Frequency converter | GD350-1200G-6 |
7.Why choose Set sail cutter suction dredger:
| 1.More than 20 years factory . |
| 2.Exported over 50 countries . |
| 3.Over 500 projects worldwide . |
| 4.Famous brand equipment on our cutter suction dredger . |
| 5.Can offer the all customized cutter suction dredger size . |
| 6.All professional team for servicing customers. |
| 7.Timely safe and high efficiency delivery time. |
| 8.Flexible payment methods . |
| 9.safely transportation methods . |
8.Customers visiting my factory :
| So far . our factory have received more than 100 country customers from the worldwide . we have won the recognition more and more customers with the high -quality product and enthusiastic service . Set sail factory expect you join in our huge family. |
8.Customer feedback :
9.Our certification :
