1342kw Main Engine Power 15m Dredging Depth Cutter Suction Dredger with Hydraulic
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Dredging depth 15m diesel engine cutter suction dredger with hydraulic
| Set sail cutter suction dredger has self-propelled or non self-Propelled portable cutter suction dredger .hull adopts dismantled and re-assemble with box structure. Cutter suction dredger are made of swing winch lifting winch cutter ladder spud device deck crane hydraulic control system PLC system etc. Cutter suction dredger are used widely in sand dredging river dredging lake dredging reservoir desilting waterway dredging and port construction etc |
1.Factory part:
| Set sail factory is found in 1992 . it is one of the leader of china dredging machinery equipment industrial. We have manufacture experience more than 20 years so far. Our mainly product : all kinds power of cutter suction dredger (electric hydraulic ) jet suction dredger trailing suction dredger wheel suction dredger chain bucket dredger chain bucket mining dredger land mining machinery multi-function service working boat sand transportation boat sand wishing machinery etc. We can according to customers requirement to make the design and customize the product . |

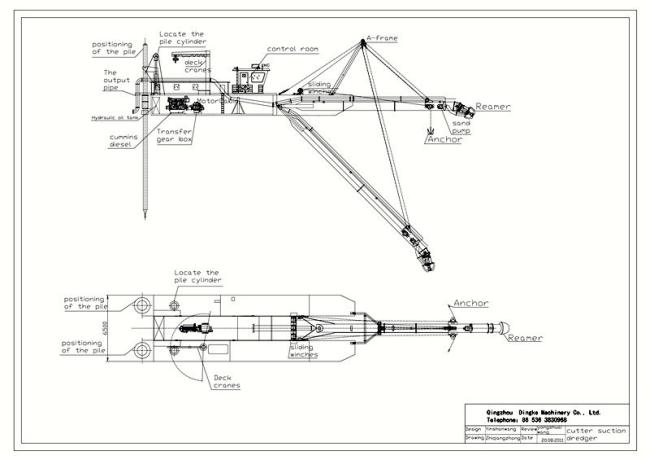

2.Principle drawing :
| Simple to introduce the principle : Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together) |
3. product :( from produce start to the end ) :
| From the product start we purchase the CCS standard plate and to others original material to ready for manufacture .all device adopts high quality and famous brand . normal diesel engine from American Cumins.we can offer the other engine brand Cater . Wechai so on .Slurry pump from Shijiazhuang industrial pump . Siemens PLC system . Hydraulic system from Germany Rexroth etc. |
| set sail workers try the best do each detail perfect from the point to the face . provide the high quality to our customer let customers spend the lowest cost the get the biggest value. We can offer timely and high efficiency service let our customer do not worry anything . Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system. Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves. |
5.Packaging and transportation detail shows:
6.20 inch basic parameter: | Item / Information | Diesel power water flow 5000m3 20 inch cutter suction dredger |
| Maily electric motor power | 1342kw |
| Auxiliary electric motor power | 582kw |
| Water flow | 5000m3 |
| Concentration | 20% |
| Capacity | 1000m3/h |
| Cutter head diameter | 2000mm |
| Cutter head power | 260 kw |
| Cutter teeth quantity | 50 piece |
Cutter head motor brand | XHS7C7-4300*5.5 |
| Pump size | 500ND |
| Dreding depth | 18m |
| Discharge distance | 1500m |
| Hydraulic brand | Rexroth |
| PLC | Siemens |
| Frequency converter | GD350-1200G-6 |
| 1.More than 20 years factory . |
| 2.Exported over 50 countries . |
| 3.Over 500 projects worldwide . |
| 4.Famous brand equipment on our cutter suction dredger . |
| 5.Can offer the all customized cutter suction dredger size . |
| 6.All professional team for servicing customers. |
| 7.Timely safe and high efficiency delivery time. |
| 8.Flexible payment methods . |
| 9.safely transportation methods . |
| So far . our factory have received more than 100 country customers from the worldwide . we have won the recognition more and more customers with the high -quality product and enthusiastic service . Set sail factory expect you join in our huge family. |
