High Capacity 18inch River Sand Pump Dredger for Southeast Asia 1137kw Main Engine Power
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
High capacity 18inch river sand pump dredger for Southeast Asia
![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
3.Set Sail cutter suction dredger type and parameter:
4.Set Sail cutter suction dredger main feature: ![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
![High Capacity 18inch River Sand Pump Dredger for Southeast Asia]()
1 1. cutter suction dredger:
| Set Sail Cutter Suction Dredgers, characterized by strong geographical environment adaptability. simple structure. easy maintenance. reliable performance. long service life, low costs and large workload (500 m3/h to 15000 m3/h) are ideal choice for sand field and river sand mining. It can also be used in salt mining in salt lakes. offshore and river dredging. hard riverbed mining. waterway improvement and development. Dug sand after screening and separation is pure and inclusion-free. which is an ideal choice for the building industry. Cutter suction dredgers can be installed with ore dressing equipment to extract gold, iron ore and other minerals. featuring a high degree of automation. high extraction accuracy and large processing capacity. It leads the industry both at home and abroad. |
2. Set sail cutter suction dredger image:
3.Set Sail cutter suction dredger type and parameter:
| Size | 8inch | 10inch | 12inch | 18inch | 20inch | 24inch | 26inch |
| Dredging depth | 8m | 10m | 12m | 15m | 15m | 18m | 18m |
| Water flow (15%) | 800m3 | 1500m3 | 2000m3 | 3500m3 | 5000m3 | 7000m3 | 9000m3 |
| Capacity | 160m3 | 300m3 | 400m3 | 700m3 | 1000m3 | 1400m3 | 1800m3 |
| Discharge distance | 1000m | 1000m | 1200m | 1500m | 2000m | 2000m | 2100m |
| Total weight | 85t | 90t | 120t | 180t | 230t | 360t | 380t |
| Total length | 31.1m | 31.1m | 31m | 39m | 39m | 46m | 46m |
| Total width | 5.5m | 5.5m | 7m | 8.6m | 8.8m | 10.2m | 10.2m |
| Total depth | 1.48m | 1.48m | 2m | 2.25m | 2.2m | 2.7m | 2.7m |
| Pump size | 200 | 250 | 350 | 450 | 500 | 600 | 650 |
| Head | 46m | 53m | 50m | 65m | 54m | 51m | 57m |
| Discharge pipe dia. | 250mm | 350mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Engine brand | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins |
| Main engine power | 230kw | 456kw | 557kw | 1137kw | 1335kw | 1620kw | 1950kw |
| Auxiliary engine power | 100kw | 122kw | 200kw | 260kw | 405kw | 700kw | 700kw |
| Pump gerbox brand | Fada | Fada | Fada | Fada | Fada | Fada | Fada |
| Hydraulic gerbox brand | Fada | Fada | Fada | Fada | Fada | Fada | Fada |
| Cutter head power | 50kw | 64kw | 78kw/108kw | 180kw | 260kw | 450kw | 450kw |
| Cutter head dia. | 1000mm | 1200kw | 1450kw | 1800kw | 2000kw | 2400kw | 2400kw |
| Spud weight | 2.22t | 3.42t | 7.2t | 16.3t | 18.65t | 26.5t | 26.5t |
| Anchor boom length | 6m | 9m | 12m | 15m | 15m | 18m | 18m |
| Trolley moving distance | 2.5m-3.5m | 2.5m-4m | 2.5m-4m | 4m-6m | 4m-6m | 6m-8m | 6m-8m |
| Hydraulic brand | Rexroth | Rexroth | Rexroth | Rexroth | Rexroth | Rexroth | Rexroth |
| Anchor weight | 200kg | 250kg | 400kg | 1t | 1.5t | 2t | 2t |
| PLC brand | Siemens | siemens | siemens | siemens | siemens | siemens | siemens |
4.Set Sail cutter suction dredger main feature:
| 1 | Easily operation . one worker can handle all . |
| 2 | Original Siemens PLC control system . all documents are appeared on the system |
| 3 | Reliable Rexroth hydraulic system . all brand hydraulic system from import we can offer. |
| 4 | All kinds of filter for hydraulic oil and water to get the fresh water and oil for cooling and hydraulic system |
| 5 | Each mainly device are tested individually and then fully test the whole in the testing pool |
| 6 | Short delivery time . Normally hot dredger we have in stock . others normally is 2-4 month |
| 7 | All spare parts our factory always have in stock . |
| 8 | Long after sales service and foreign service can available. |
| 9 | All of parts can from famous brand . Carter .such as Cummins .Weichai etc engine. Shijiazhang pump . Rexroth hydraulic system . PLC Siemens . high efficiency gear box etc |
| 10 | Economical price and high output to ensure the customers cover the cost for the shortest time and get the largest value . |

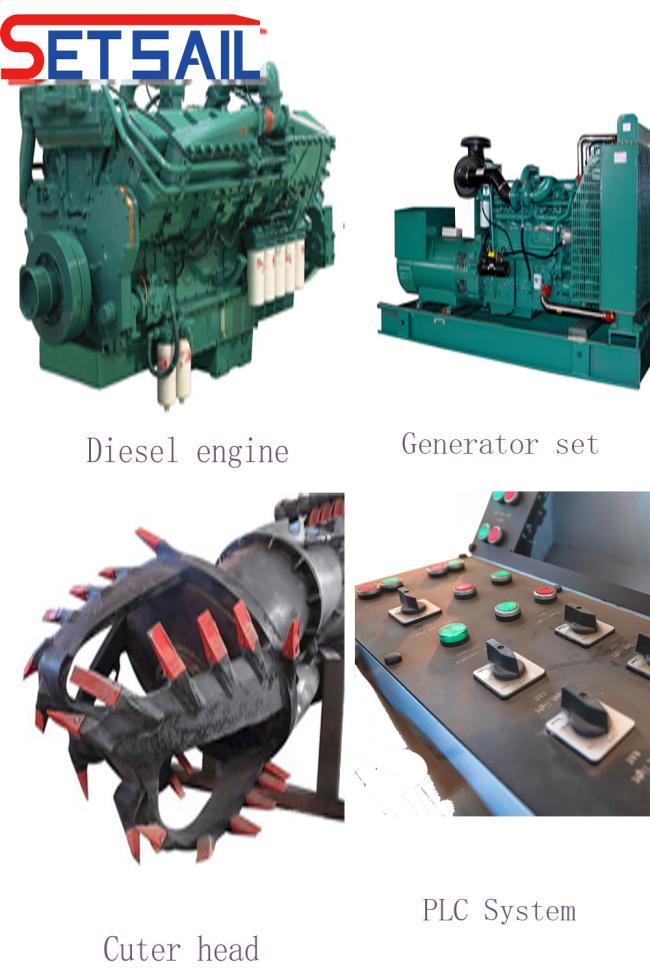

5.Main device introduce :
6.Workshop display :
factory service :
| 1 | Inquiry and consulting support. Our service team all online to guide for every problem |
| 2 | Sample sand dredger testing support. We have testing support for all dredger |
| 3 | View our Factory. Welcome to inspect factory |
| 4 | Training how to install the sand dredger boat, training how to use the sand dredger .training how to repair dredger |
| 5 | Engineers available to service sand dredger boat overseas. When the complex failure we will send the engineer to oversea |
| 6 | After sales team in Nigeria, India, Bangladesh, Colombia etc for 24h sand dredger boat after-sale service |
| 7 | we can offer the all guide service :assemble .repair and free for training the local workers |
7. Sucessful case:
8.Customers feedback:
9. Customer visit our factory :
10. Factory picture:
11.Certification :
