Cutter Suction Dredger with 6mm-20mm Side Plate Thickness and Rexroth Hydraulic System
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
High Efficiency Professional Hydraulic Cutter Suction Dredger
1.General Description :
| Trailing suction hopper dredger is self-propelled and non-self propelled . the dredging pump drives the front of the screw rake head to churn .cut collection to the underwater position . and through the suction pipe to get the bottom silt .sand .and other loose material with water then through the the discharge pipe to transport to destination .during the dredger working process in resevoir . in order increase the suction mud effective . we add the jet in the front of suction pipe to increase the concentration . this type of trailing hopper scution dredger is suitable for underwater sandy and non-viscous soil . as well as soft and easily flowing mud. |
2. suction dredger picture :
Set sail cutter suction dredger used the all famous device . Cumins diesel engine , Shijiazhuang slurry pump Germany hydraulic pump Siemens PLC so on . use the hydraulic control the cutter head to improve the concentration to add the output . High pressure slurry pump through the suction pump the get the mixture of sand and mud from the river lake sea or reservoir so on ,then use the discharge pipe transfer the mixture to the land . Slurry pump power the normal from the diesel engine . especially according to the working situation and the requirement of customer power can designed electric . cutter head deck crane anchor rod and all of hydraulic winch. all of electrical equipment form the Siemens to control all . use the winch to control the cutter head to sector work of right and left.
Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
3. dredger advantage :
| 1. Widely operation area | 2.Easily operation |
| 3.Less wastage | 4.High efficient |
4.Basic parameter :
| Model | QH-150 | QH-200 |
| Tolal dimention | 17m*4.5m*1.5m | 20m*6m*1.7m |
| Dredging depth | 5-6m | 6-8m |
| Capacity | 150m3 | 200m3 |
| Thinckness of steel plate | Bottom : 6mm Side: 6mm Front :5mm | Bottom :6mm Side : 6mm Front : 5mm |
| Main engine power | 230kw | 300kw |
| Pump water flow | 500m3 | 800m3 |
| Draught | 0.85m | 0.9m |

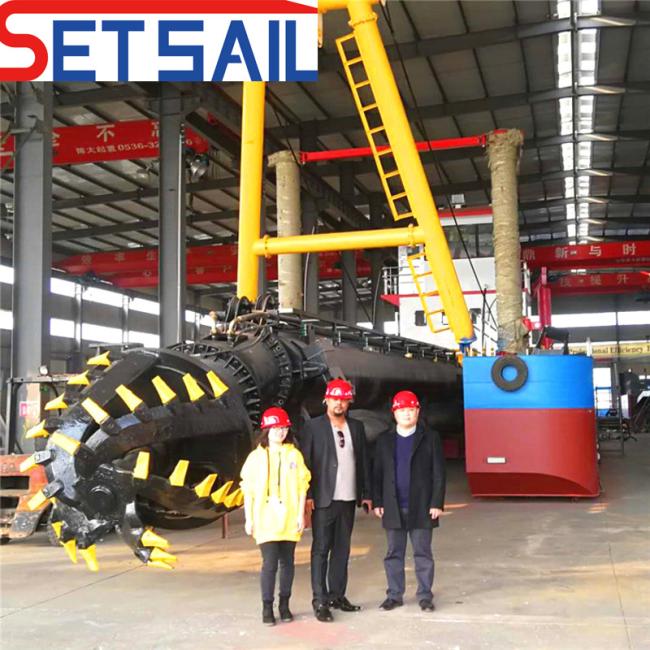

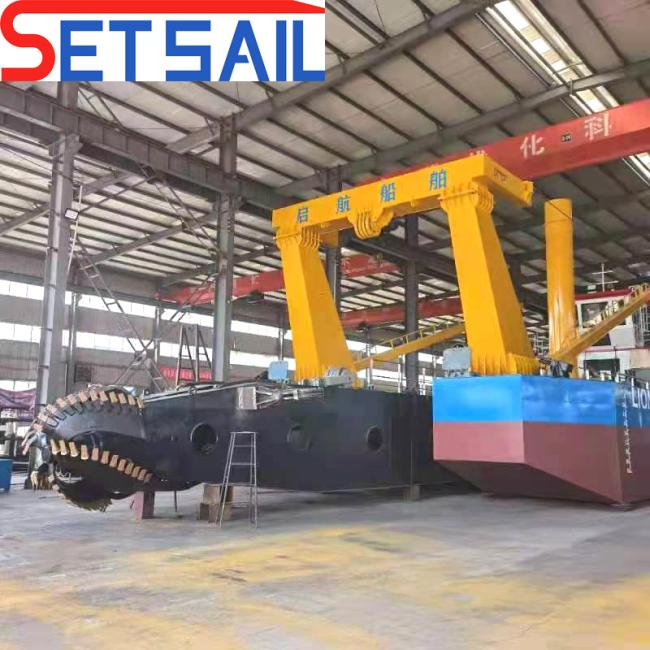

5. suction dredger in factory :

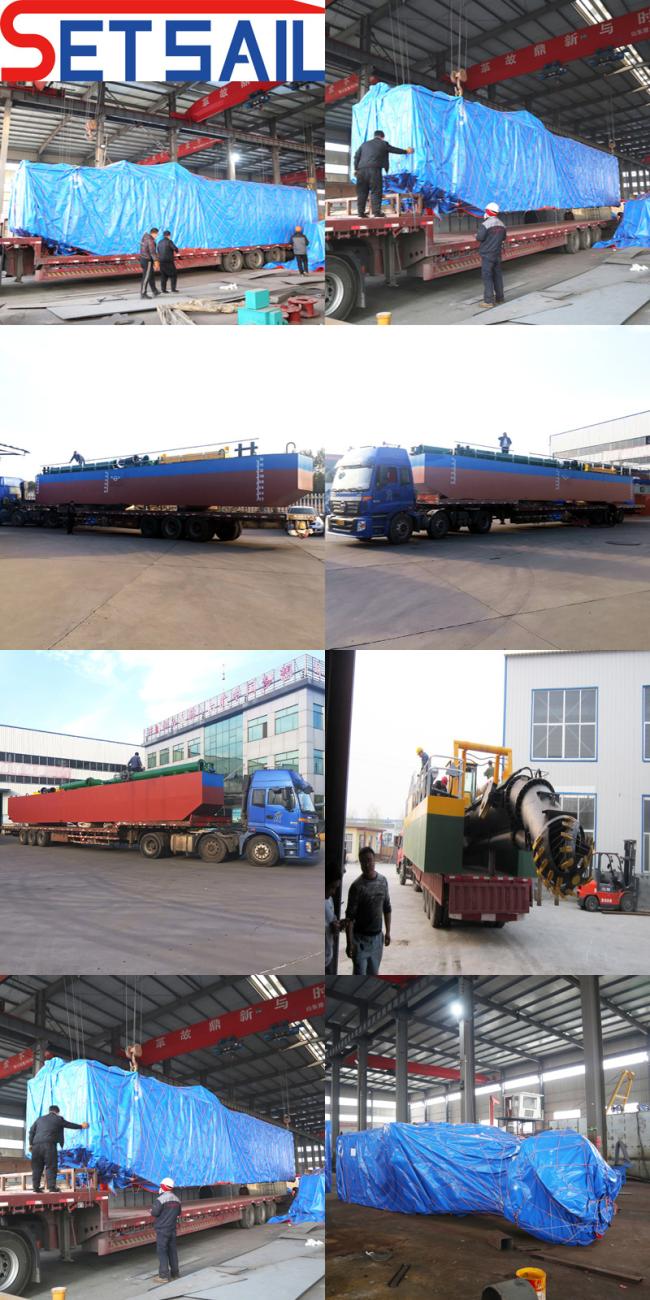

6.Packing and shipment :
7.Customers feedback :

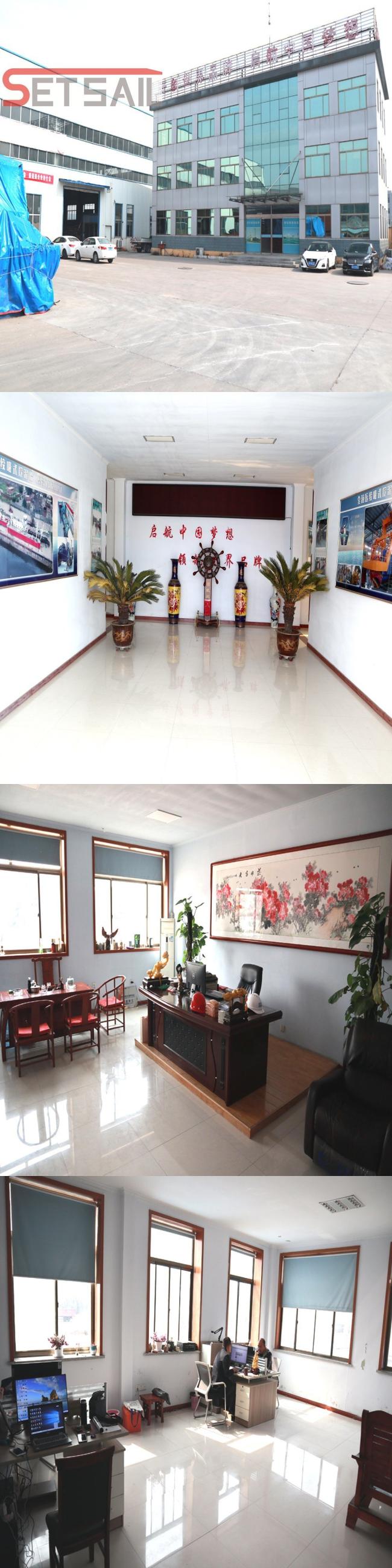

8.Customers visit our factory :
9.Company profile :
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |

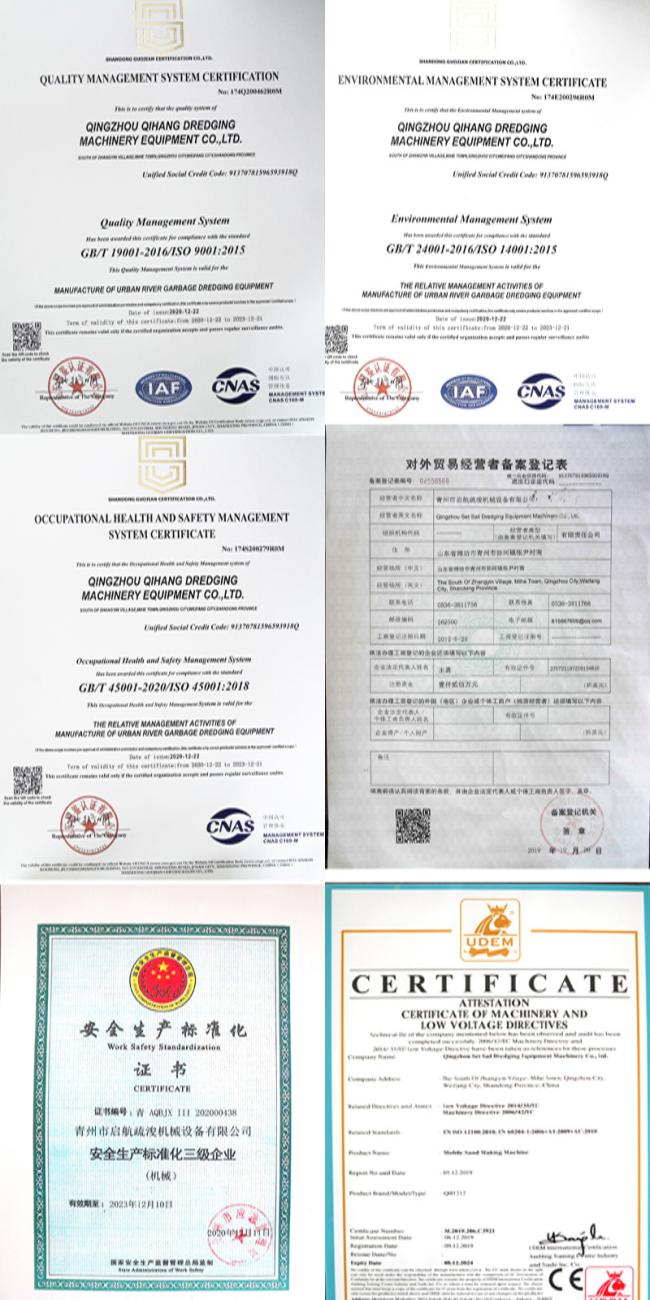

10.Certification :
