Customized Request Powerful Diesel Engine 20 Inch Sand Dredger with Hydraulic Pump
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
diesel engien 20 inch sand dredger with hydraulic pump
1. 20 inch cutter suction dredger introduce :
20 inch cutter suction dredger is the. one of the most popular . Cumins diesel engien .Shijiazhuang dredging pump. gerbox and coupler . anchor boom . depth sounder . Siemens PLC . Rexroth hydraulic control system are provided on my dredger . Dredging depth 15 meter . discharge distance 1500 meter are the best efficiency . normal capacity is 1000 cubic meter per hour . accurate capacity according to the concentraton .
2. 20 inch cutter suction dredger and detailed pictures:
dredger working principle :
using the hydraulic control the cutter head to improve the concentration to add the output . High pressure slurry pump through the suction pump the get the mixture of sand and mud from the river lake sea or reservoir so on ,then use the discharge pipe transfer the mixture to the land . Slurry pump power the normal from the diesel engine . especially according to the working situation and the requirement of customer power can designed electric . cutter head deck crane anchor rod and all of hydraulic winch. all of electrical equipment form the Siemens to control all . use the winch to control the cutter head to sector work of right and left.
3. Brief application :
| Cutter suction dredger has broad range of applications in operations in the rivers . lakes. seas for the dredging. channel excavation. In exceptional circumstances a cutter suction dredger cutter installed on the highpower.devices. can be excavated without blasting rocks such as basalt and limestone strata.With characteristics of high efficiency. large output up to several thousand cubic meters per hour.the sand.or crushed rock material to rely on a strong driving force the mud pumps and mud pipeline, pumping out a few kilometers outside. |
4. Basic informationn
| Item Name | Descriptions /Specifications |
| Dredging depth | 15 meter |
| Discharge distance | 1500 meter Max. 2000 meter |
| Slurry concentration % | Min 15%, Max 20% |
| Capacity | 750m3-1000m3 |
| Total length | 39 m |
| Width | 8.8m |
| Depth | 2.2 m |
| Pump size and water flow | 500ND Water flow 5000 cubic meter |
| Inner Diameter of suction /discharge pipe | 600mm |
| Main engine power and brand | Cumins 1335kw |
| Auxiliary engine power and brand | Cumins 405 kw |
| Cutter head diameter | 2000 mm |
| Cutter head power | 260kw |
| Total weight | 230 ton |
| Fuel tank capacity | 40 Ton |
| NO. item | Total length(m) | Water flow(m3) | Capacity (m3) | Engine power(kw) | Diging depth(m) | Discharge distance(m) | Cutter power(kw) |
| 8 inch | 17 m | 800 m3 | 160 m3 | 220 kw | 8m | 800 m | 30kw |
| 10 inch | 23 m | 1000 m3 | 200 m3 | 336 kw | 9 m | 1000 m | 50 kw |
| 12 inch | 25 m | 1500 m3 | 300 m3 | 559 kw | 10 m | 1200 m | 60 kw |
| 14 inch | 27 m | 2000 m | 400 m3 | 634 kw | 11 m | 1500 m | 70 kw |
| 16 inch | 29 m | 2500 m3 | 500 m3 | 746 kw | 13 m | 1500 m | 70 kw |
| 18 inch | 36 m | 3500 m3 | 700 m3 | 895 kw | 15 m | 2000 m | 170 kw |
| 20 inch | 38 m | 4500 m3 | 900 m3 | 1268 kw | 15 m | 2000 m | 210 kw |
| 22 inch | 38 m | 4500 m3 | 900 m3 | 1491 kw | 16 m | 2000 m | 210kw |
| 24 inch | 41 m | 5500 m3 | 1100 m3 | 2190 kw | 16 m | 2000 m | 300 kw |
| 26 inch | 43 m | 6000 m3 | 1200 m3 | 2380 kw | 16 m | 2000 m | 350 kw |
| 28 inch | 45 m | 7000 m3 | 1400 m3 | 3000 kw | 17 m | 2200 m | 500 kw |
| 32 inch | 50 m | 7500 m3 | 1500 m3 | 3500 kw | 17 m | 2500 m | 500 kw |

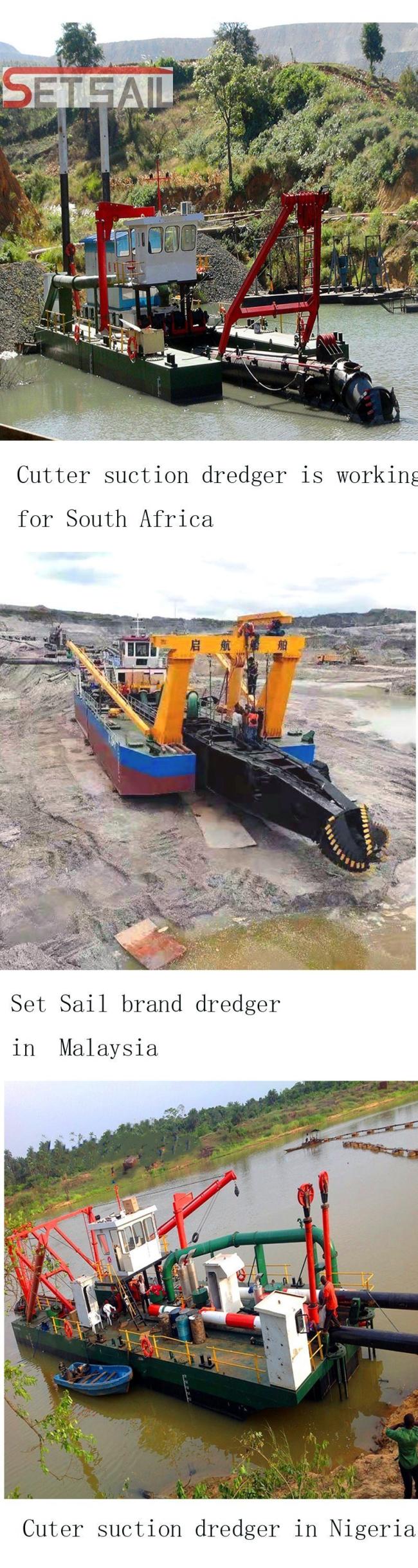

4.Set Sail dredger in abroad :
5.Company profile:
Qingzhou Set Sail Mining And Dredging Machinery Co., Ltd , is one of China leading manufacturer of sand & gold&diamond mining equipments.which has more than 25 years' experience in designing,producing and selling bucket ladder . suction dredgers.diamond/gold dredgers. sand washing plant . gold washing plant. sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Welcome to our factory for discussion! |
6. Company certification :
