54m Head Hydrocyclone Type 20 Inch Cutter Suction Dredging Machine for Capital Dredging
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
20 inch cutter suction dredging machine for capital dredging
1. 20 inch cutter suction dredger introduce :
20 inch cutter suction dredger is the. one of the most popular . Cummins diesel engien .Shijiazhuang dredging pump. gerbox and coupler . anchor boom . depth sounder . Siemens PLC . Rexroth hydraulic control system are provided on my dredger . Dredging depth 15 meter . discharge distance 1500 meter are the best efficiency . normal capacity is 1000 cubic meter per hour . accurate capacity according to the concentraton .

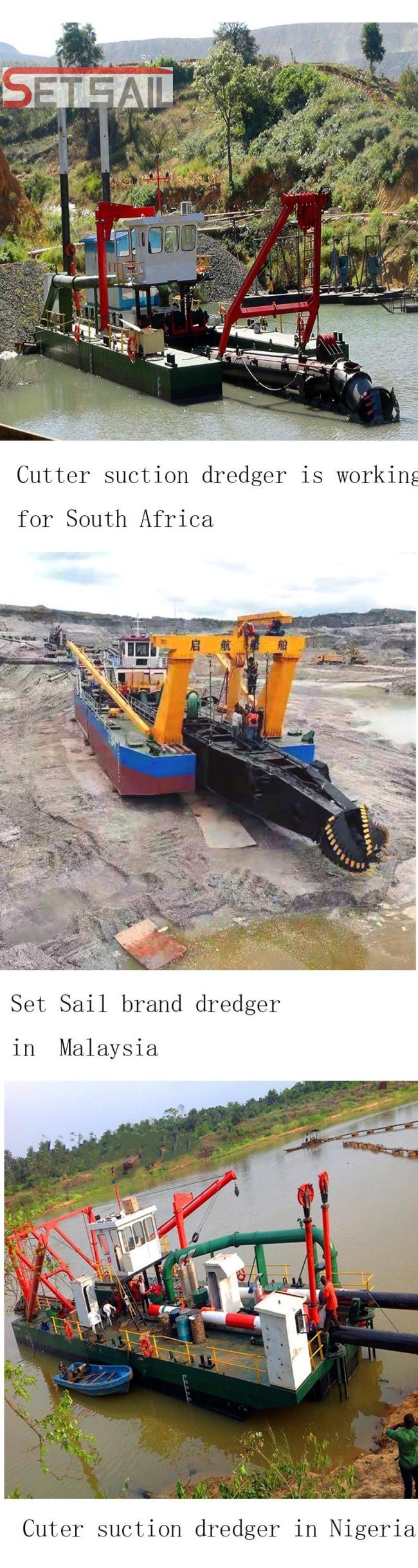

2. 20 inch cutter suction dredger and detailed pictures:
3. Brief application :
| Cutter suction dredger has broad range of applications in operations in the rivers . lakes. seas for the dredging. channel excavation. In exceptional circumstances a cutter suction dredger cutter installed on the highpower.devices. can be excavated without blasting rocks such as basalt and limestone strata.With characteristics of high efficiency. large output up to several thousand cubic meters per hour.the sand.or crushed rock material to rely on a strong driving force the mud pumps and mud pipeline, pumping out a few kilometers outside. |
4. Basic informationn
| Item Name | Descriptions /Specifications |
| Dredging depth | 15 meter |
| Discharge distance | 1500 meter Max. 2000 meter |
| Slurry concentration % | Min 15%, Max 20% |
| Capacity | 750m3-1000m3 |
| Total length | 39 m |
| Width | 8.8m |
| Depth | 2.2 m |
| Pump size and water flow | 500ND Water flow 5000 cubic meter |
| Inner Diameter of suction /discharge pipe | 600mm |
| Main engine power and brand | Cummins 1335kw |
| Auxiliary engine power and brand | Cummins 405 kw |
| Cutter head diameter | 2000 mm |
| Cutter head power | 260kw |
| Total weight | 230 ton |
| Fuel tank capacity | 40 Ton |
4.Set Sail dredger in abroad :
5.Company profile:
Qingzhou Set Sail Mining And Dredging Machinery Co., Ltd , is one of China leading manufacturer of sand & gold&diamond mining equipments.which has more than 25 years' experience in designing,producing and selling bucket ladder . suction dredgers.diamond/gold dredgers. sand washing plant . gold washing plant. sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Welcome to our factory for discussion! |
6. Company certification :
