18 Inch Cutter Suction Dredger Cyclone Type Hydrocyclone at Affordable
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Hot sale18 inch cutter suction sand dredger for sale
1. Introduce: Cutter suction dredger are widely used all kinds of port . river .lake .sea and inland waterway for dredging . Set Sail cutter suction dredger adopt advanced hydraulic control system . this system can reach the longer service life . higher performance and higher capacity . Prower of cutter suction dredger use diesel engine . this diesel engine from Cumins from US and UK. Cumins engine has steady performance . longer continuous working time . don't easy appear error.slurry pump is from famous manufacturing factory. pressure pump is made of high quality material to insure the service life , this pump can reach the output of full power .let customer get the largest capacity . Cutter suction dredger is customized by our factory according to the client request. including engine brand . slurry pump brand . hydraulic control system and the others . all parts of cutter suction dredger adopt advanced device let the cutter suction dredger reach the match well. |
Cutter suction dredger has broad range of applications in operations in the rivers . lakes. seas for the dredging.
channel excavation. In exceptional circumstances a cutter suction dredger cutter installed on the highpower.devices.
can be excavated without blasting rocks such as basalt and limestone strata.With characteristics of high efficiency.
large output up to several thousand cubic meters per hour.the sand.or crushed rock material to rely on a strong
driving force the mud pumps and mud pipeline, pumping out a few kilometers outside.
3. Specification :
| Item Name | Descriptions /Specifications |
| Production Capacity (solid) | 525-700 cbm/hr for medium sand at a distance of 1500 m. |
| Slurry concentration, % | Min 15%, Max 20% |
| Discharge distance (max) | Max 2000 m |
| Dredging depth at 45 degree 45 | 15 m |
| Min. dredging depth | 1.4m |
| Inner Diameter of suction pipe | 500mm |
| Inner Diameter of discharge pipe | 500mm |
| Average Draught | 1.4m |
| Maximum draught | 1.6m |
| Total weight | 180Ton |
| Main engine | 1137kw,Cumins,China |
| Auxiliary engine | 260kw,Cumins,China |
| Total installed power | 1397KW |
| Fuel tank capacity | 30Ton |
| Delivery time | 90 days |

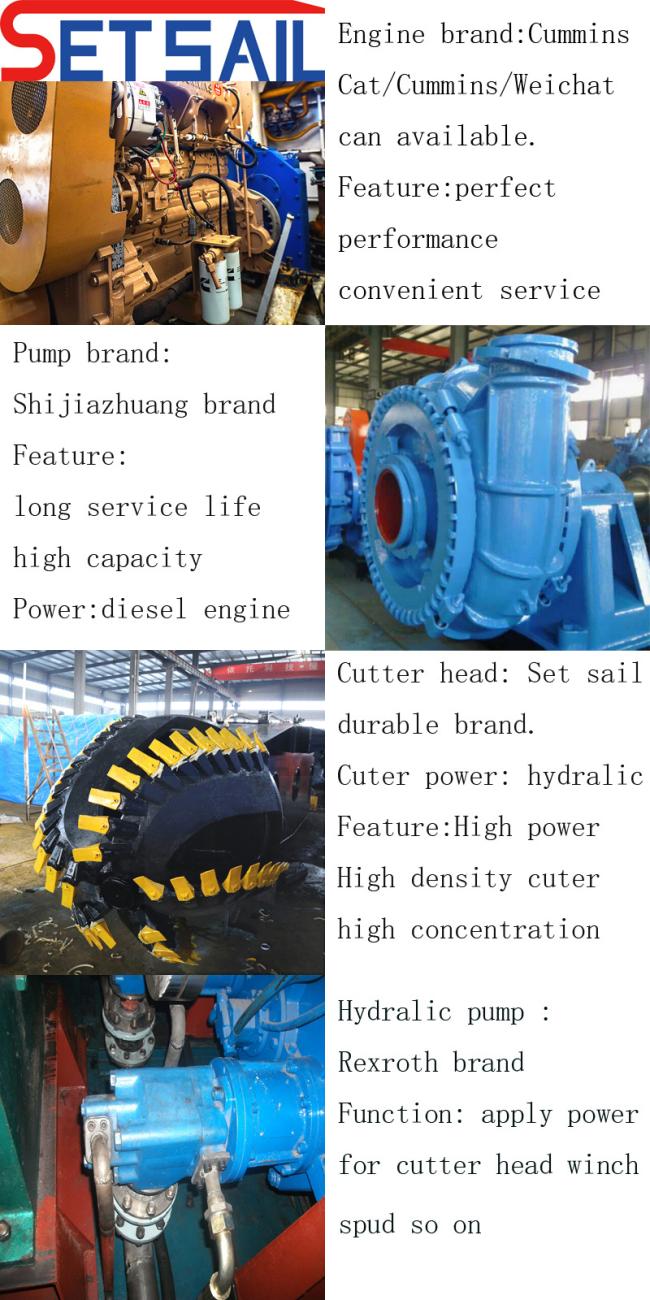

4.Detailed informtion:
All parts on my cutter suction dredger adopts reliable and durable international brand to reach the low failure high efficient. Offering the biggest profit for customers.
Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
5.Packing and shipping :
| Way of Packing * Steel support & iron sheet sea- worthy package. * Load: Export software scientific loading work |
| Transportation * MSK/MSC/APL/EMC/WANHAI/KLINE * Air delivery services * We will remind you before boat arrives. |
6.Company overall :
| Set Sail factory is loated in QINGZHOU city . our factory has more than 25 year produce exprence . More than 60 meployees at my factory . Main product : all sorts of cutter suction dredger jet cutter suction dredger mining machinery sand transportation boat mutil function service boat wishing sand machienry so on. we have complete devolopment and research team and professtion enginner and service team aviliable . |
7. Factory certification:
