20 Inch Cutter Suction Sand Dredger with Weichai Diesel Engine Customized Request
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
20 Inch Cutter Suction Sand Dredger with Weichai diesel engine
1.Cutter suction dredger describe:
| 1. Cutter Suction Dredger of steel construction. the non self-propelled and self-propelled dismountable type. is able to berth and dredge at any waters both in the coastal area and inland rivers. The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China. |
| 2. It's hull consists of a main pontoon and two side pontoons. Is to be easy to dismantle or mount for transportation by road. rail or water. and is to be easy to reassemble at project site. The engines and dredge pump are located in the center pontoon. the 2 side pontoons serve as fuel bunkers. ballast tanks and store. |
| 3. The dredger is powered by diesel engines. The main diesel engine is to drive the dredge pump and the auxiliary engine is to drive hydraulic system. including cutter.swing and ladder winches, anchor winches. and the spud rams etc. |
| 4. The spacious control cabin is ergonomically designed with 360 degree view. All the operation buttons. swifts. indicators. gauges are equipped on the control desk. Only one worker can control all the dredger in the operation room. |
| 5. The dredger is painted by 4 layers of marine paint to protect from the corrosion. The ZINC anode can be used to give better anti-corrosion function. |

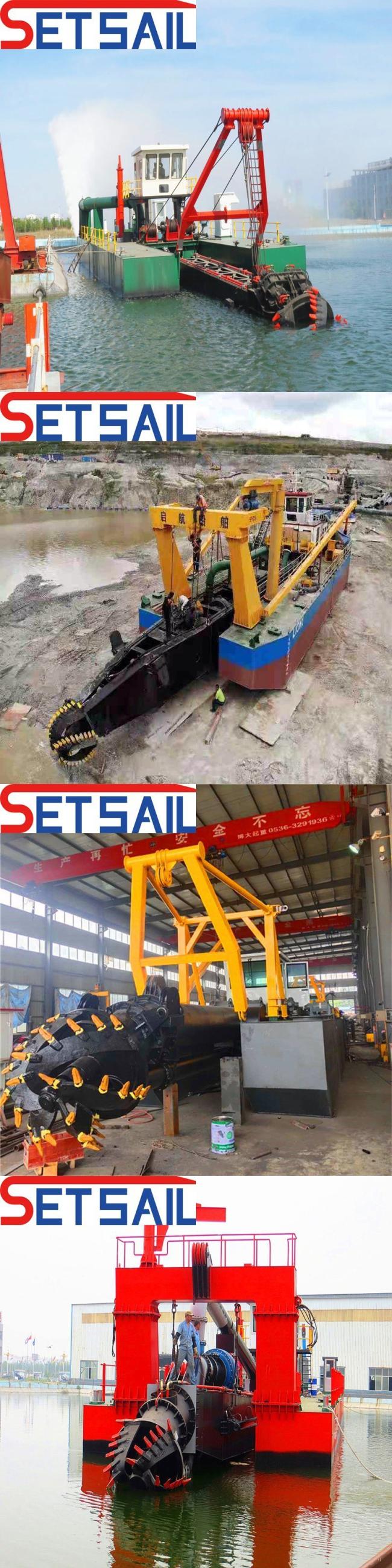

2.Cutter suction dredger image:
3.Basic size parameter:
| Size \item | 8 inch | 10 inch | 12 inch | 14 inch | 16 inch |
| Total length | 20m | 25m | 26m | 30m | 34m |
| Mainly engine brand \power | Cumins220kw | Cumins298kw | Cumins447kw | Cumins447kw | Cumins582kw |
| Auxiliary engine power | -------- | -------- | -------- | Cumins 224kw | Cumins224kw |
| Harbour generator | Cumins 20KW | Cumins20KW | Cumins20KW | Cumins30KW | Cumins30KW |
| Max. dredging depth | 8m | 9m | 10m | 11m | 13m |
| Discharge pipe inner diameter | 200mm | 250mm | 300mm | 350mm | 400mm |
| Head | 30m | 30m | 30m | 45m | 45m |
| Sand pump brand | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang |
| Water flow | 800m3 | 1000m3 | 1500m3 | 2000m3 | 2500m3 |
| Solid sand capacity | 160m2 | 200m3 | 300m3 | 400m3 | 500m3 |
| Discharge distance | 800m | 1000m | 1200m | 1500m | 1500m |
| Cutter head diameter | 1300mm | 1350mm | 1450mm | 1450mm | 1500mm |
| Cutter power | 30kw | 50kw | 60kw | 70kw | 70kw |
| Displacement | 65t | 98t | 116t | 174t | 180t |
| Hydraulic control system | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens |
| Total power | 244kw | 318kw | 467kw | 701kw | 836kw |
| Total weight | 50t | 60T | 70T | 90T | 110T |
| Total fuel oil consumption | 34L | 36L | 78L | 105L | 112L |
| Size \item | 18 inch | 20 inch | 22 inch | 24 inch | 26 inch | 28 inch | 32 inch |
| Total length | 37m | 38m | 41m | 43m | 45m | 47m | 50m |
| Mainly engine brand \power | Cumins895kw | Cumins895kw | Cumins1193kw | Cumins1641kw | Cumins1864kw | Cumins2380kw | Cumins3000kw |
| Auxiliary engine power | Cumins224kw | Cumins298kw | Cumins298kw | Cumins447kw | Cumins 582kw | Cumins720kw | Cumins1000kw |
| Harbour generator | Cumins30KW | Cumins40KW | Cumins40KW | Cumins50KW | Cumins75KW | Cumins75KW | Cumins103KW |
| Max. dredging depth | 14m | 15m | 16m | 16m | 16m | 17m | 17m |
| Discharge pipe inner diameter | 450mm | 500mm | 550mm | 600mm | 650mm | 700mm | 800mm |
| Head | 48m | 54m | 57m | 63m | 63m | 64mm | 66m |
| dredging pump brand | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang |
| Water flow | 3000m3 | 4000m3 | 4500m3 | 5000m3 | 6000m3 | 7000m3 | 7500m3 |
| Solid sand capacity | 600m3 | 800m3 | 900m3 | 1000m3 | 1200m3 | 1400m3 | 1500m3 |
| Discharge distance | 1500m | 2000m | 2000m | 2000m | 2000m | 2200m | 2500m |
| Cutter head diameter | 1500mm | 1700mm | 2000mm | 2050mm | 2100mm | 2200mm | 2350mm |
| Cutter power | 80kw | 170kw | 170kw | 300kw | 350kw | 500kw | 500kw |
| Displacement | 224t | 296t | 302t | 385t | 725t | 780t | 1100t |
| Hydraulic control system | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens |
| Total power | 1149kw | 1233kw | 1531kw | 2138kw | 2521kw | 3175kw | 4103kw |
| Total weight | 130T | 180T | 210T | 245T | 280T | 320T | 510T |
| Total fuel oil consumption | 123L | 179L | 229L | 245L | 290L | 365L | 471L |

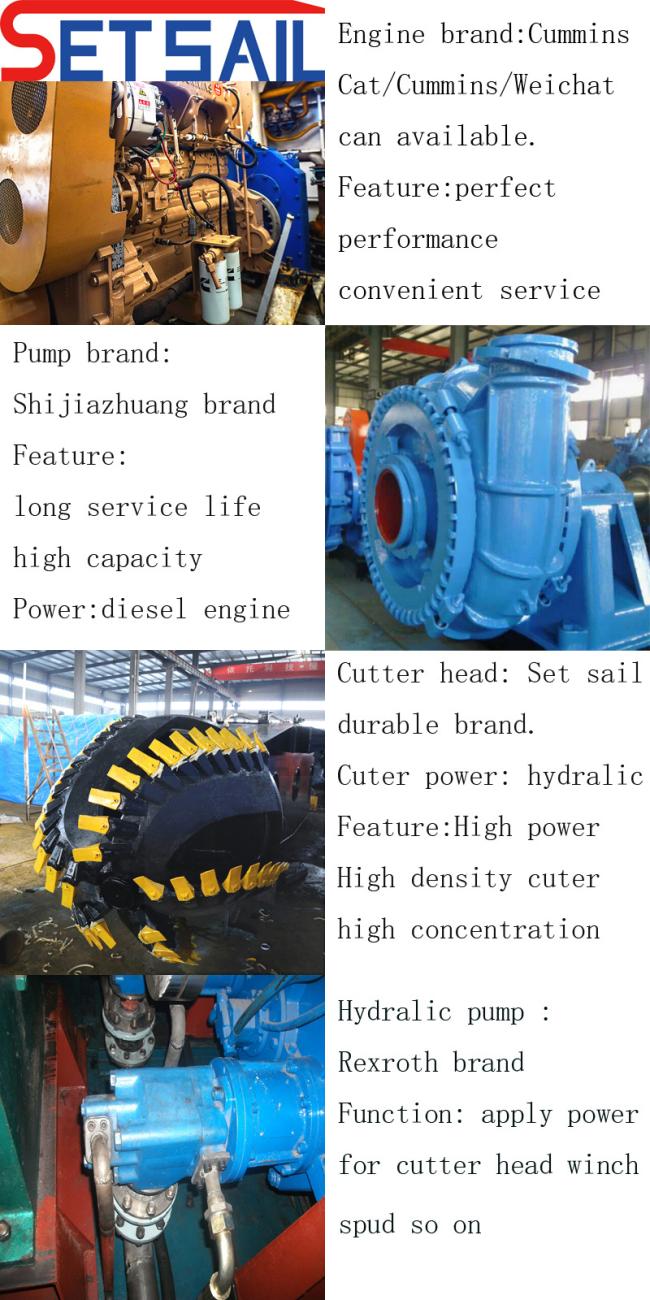

4.Maily parts introduce :

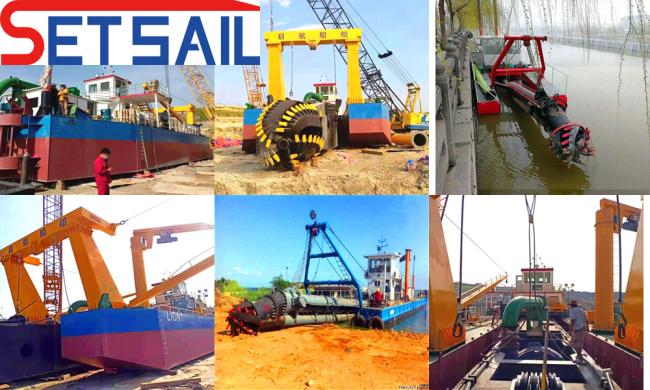

5.Installation site:

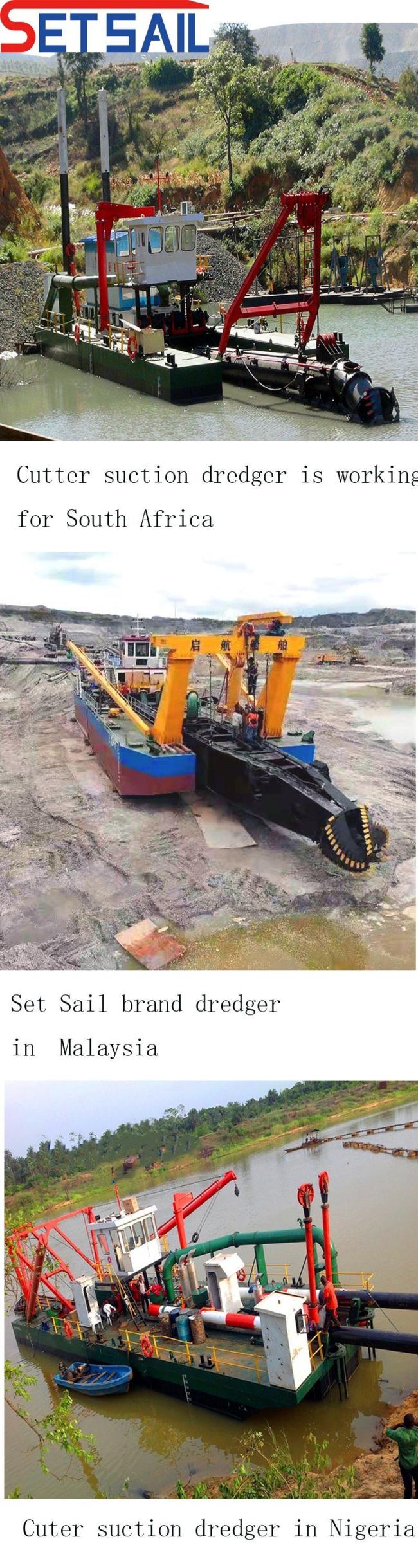

6.Set sail cutter suction dredger in abroad :

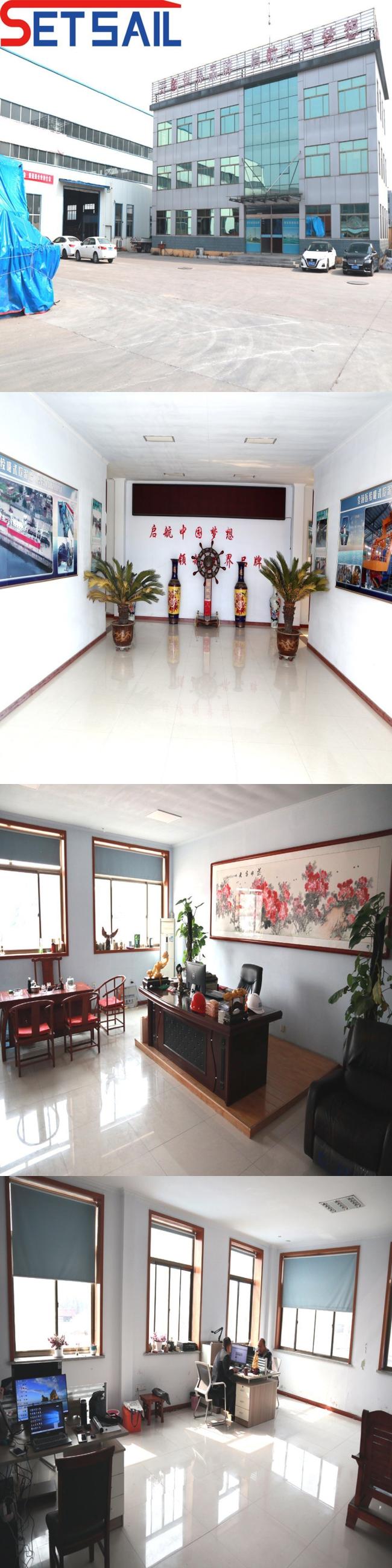

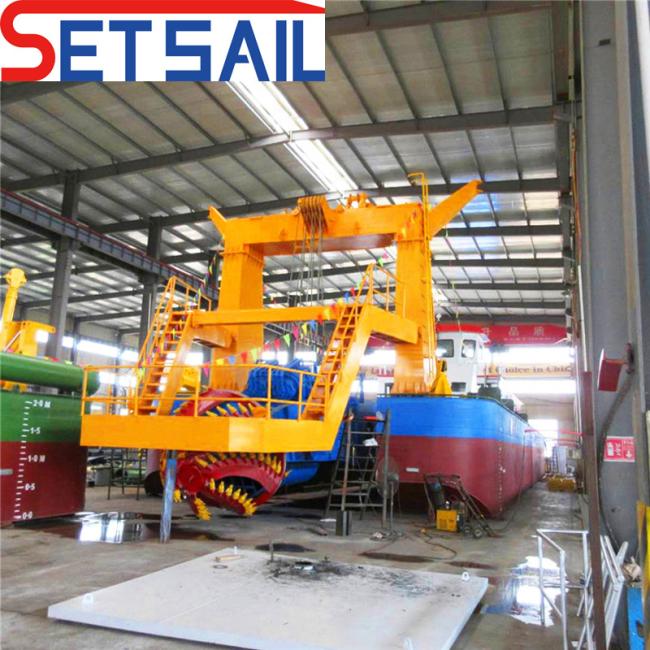

7.Set sail cutter suction dredger factory shows:

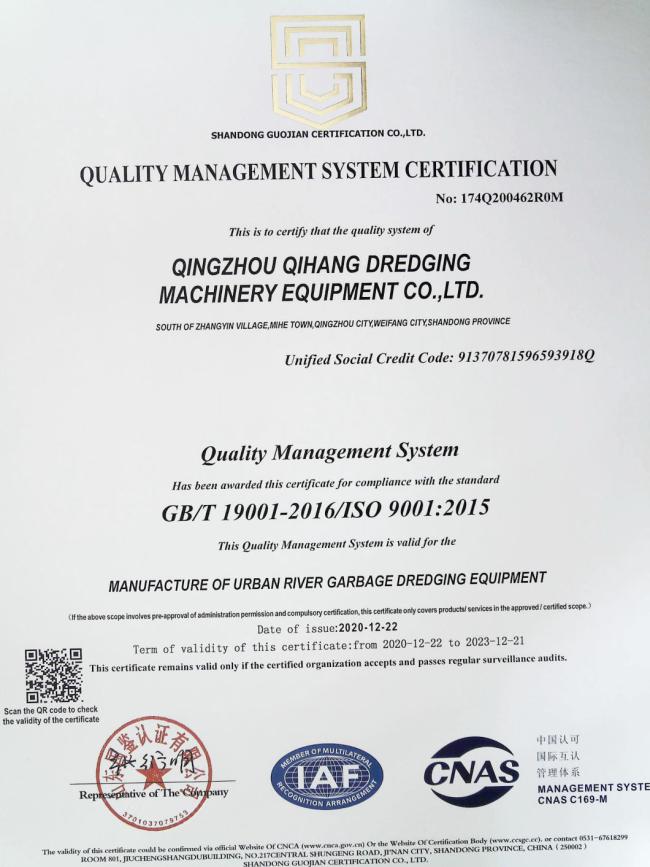

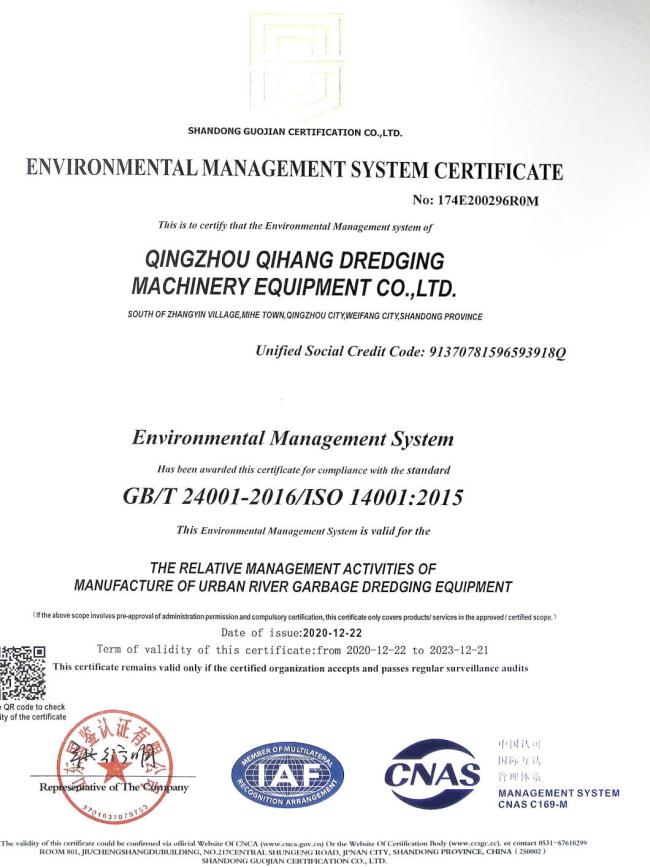

8.Certificate shows:
