Discharge Distance 100m-1500m Manufacture Diesel Engine Trailing Suction Hopper Dredger
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
China manufacture diesel engine trailing suction hopper dredger
General Description : | Trailing suction hopper dredger is self-propelled and non-self propelled . the dredging pump drives the front of the screw rake head to churn .cut collection to the underwater position . and through the suction pipe to get the bottom silt .sand .and other loose material with water then through the the discharge pipe to transport to destination .during the dredger working process in resevoir . in order increase the suction mud effective . we add the jet in the front of suction pipe to increase the concentration . this type of trailing hopper scution dredger is suitable for underwater sandy and non-viscous soil . as well as soft and easily flowing mud. |
Hydraulic rake head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together). all main parts such as sand pump and hydraulic pump power from the Cummins diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch . .hydraulic spud carrier and cutter head so on .
Set Sail main product : cutter suction dredger . jet suction dredger . wheel bucket suction dredger . bucket chain river mining and sand dredger .trailing hopper suction dredger .land mining machinery . multi function service working boat . sand transportation boat . sand washing platform . meantime we can according to the customers request to do the any dredging machinery .
Trailing suction hopper dredger advantage :
| 1. Widely operation area | 2.Easily operation |
| 3.Less wastage | 4.High efficient |
Basic parameter :
| Model | QH-150 | QH-200 |
| Tolal dimention | 17m*4.5m*1.5m | 20m*6m*1.7m |
| Dredging depth | 5-6m | 6-8m |
| Capacity | 150m3 | 200m3 |
| Thinckness of steel plate | Bottom : 6mm Side: 6mm Front :5mm | Bottom :6mm Side : 6mm Front : 5mm |
| Main engine power | 230kw | 300kw |
| Pump water flow | 500m3 | 800m3 |
| Draught | 0.85m | 0.9m |
| 1 | Design the dredger based on the customer's detailed requirements such as : clear water flow per hour. dredge depth. discharge distance and engine brand we can support WeichaiCummins and others. |
| 2 | supply one year's guarantee for the whole dredger except the wear spare parts. |
| 3 | supply after-sales installation. trial operation. training the operators. maintence and other services. |
| 4 | we can offer the lifetime cost price accessories and technical support |

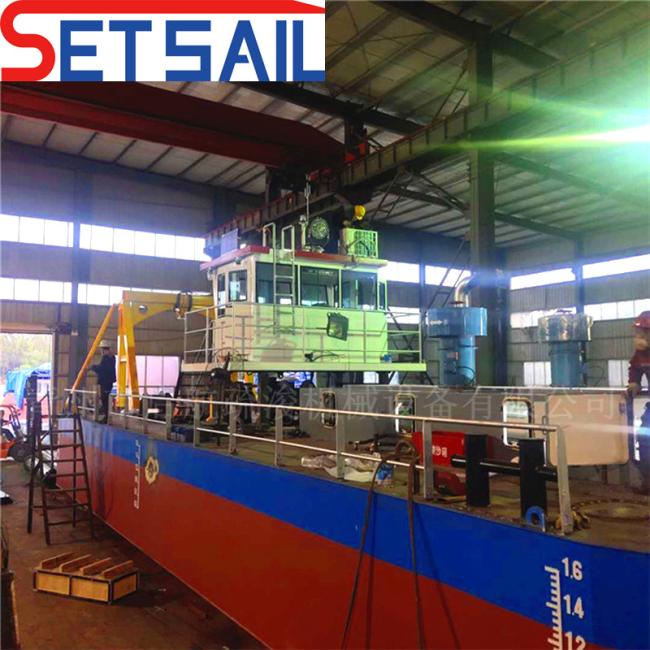

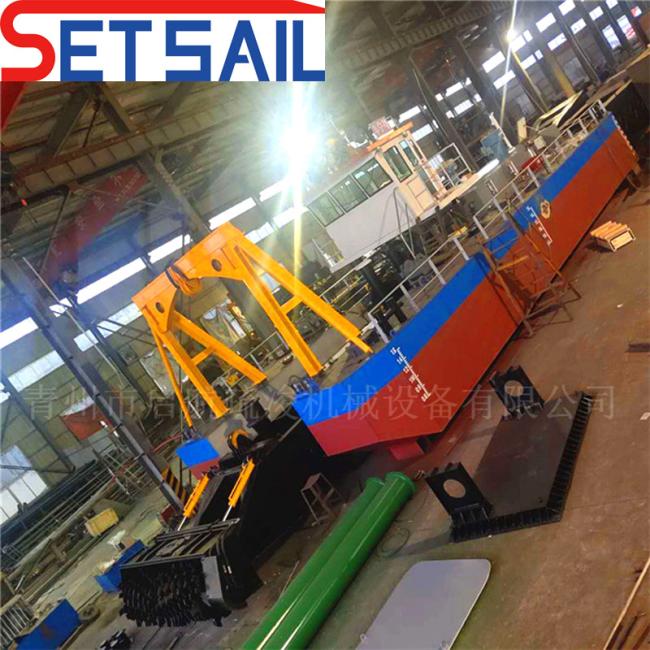

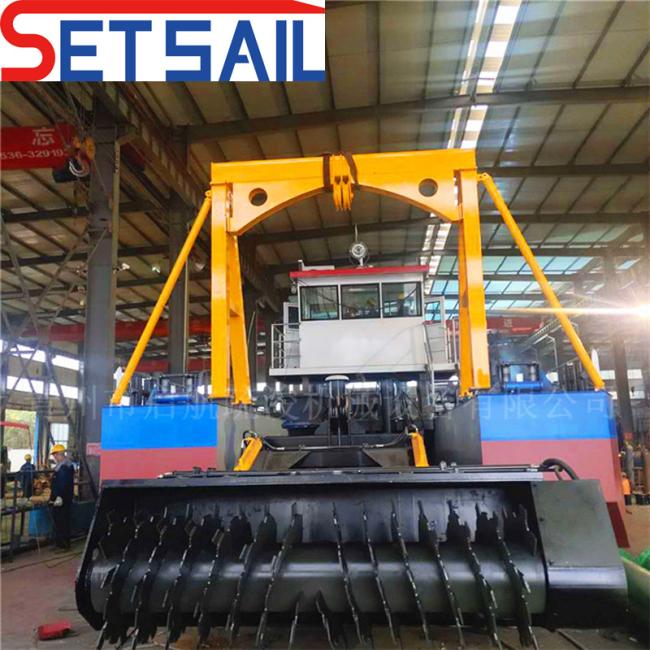

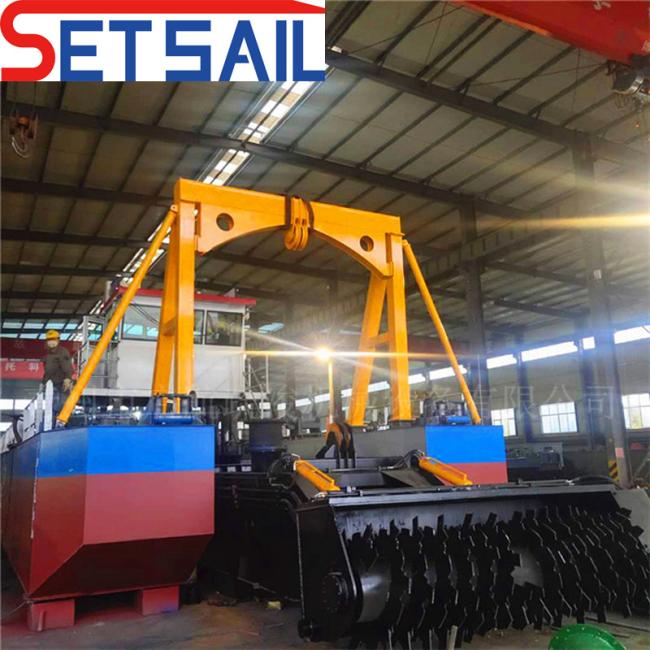

Trailing suction hopper dredger in factory :
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

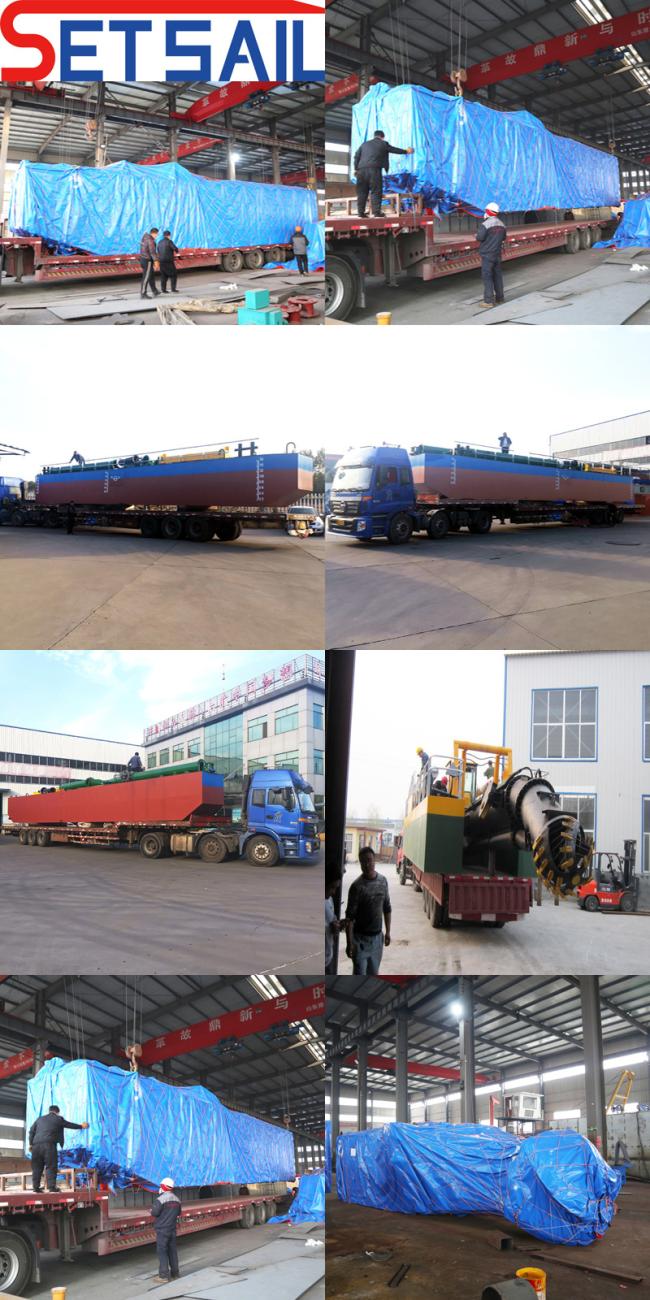

Packing and shipment :
Customers feedback :
Customers visit our factory :
Company profile :
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
| We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc. |
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
