Dredging Power 37kw-150kw Chain Bucket Gold Dredger for Mining River Diamond Machinery
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Chain bucket gold dredger mining machinery for river diamond
1. Chain bucket gold dredger discription : | Bucket chain gold dredger adopts assembled box struture . according to the geographical enviroment to design all operation type . it is made of digging device . lifting device separating sand device . gold selection device . tailing processing device . generator set. positing device so on . |

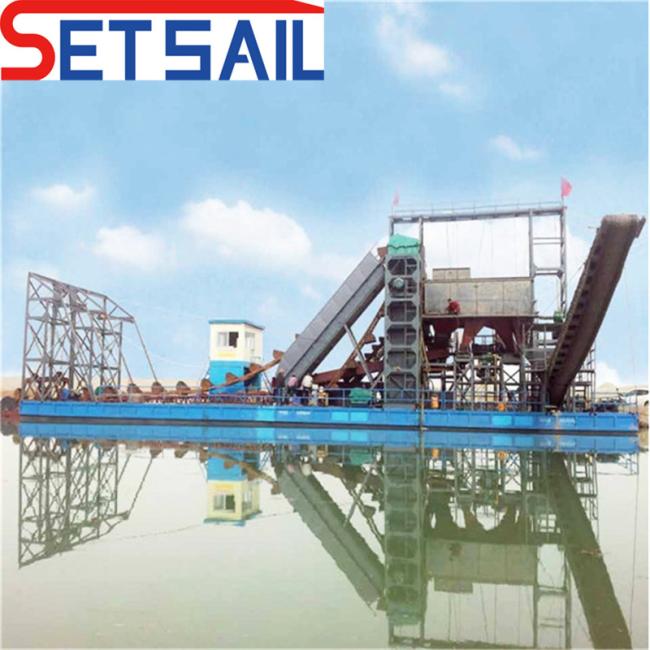

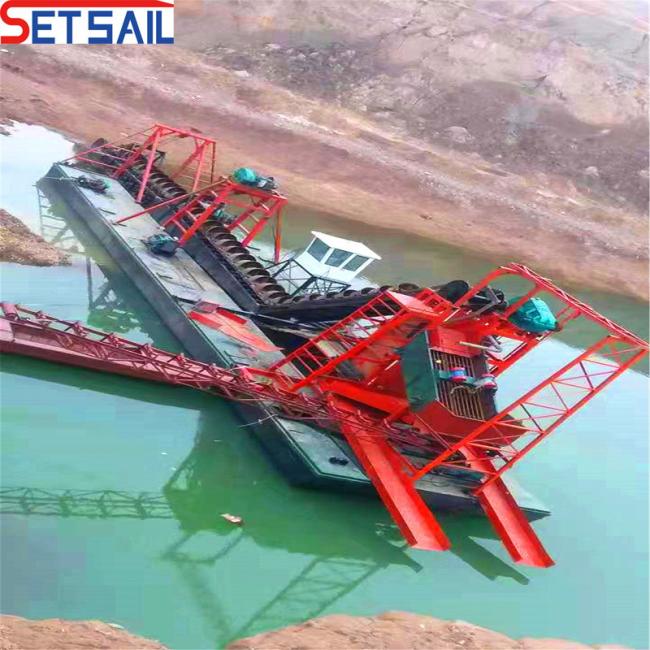

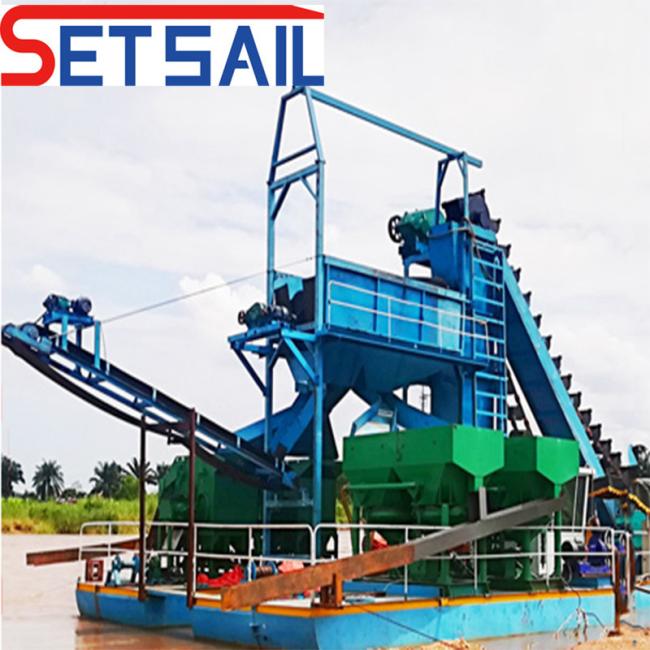

2.Chain bucket gold dredger picture :
3.Chain bucket gold dredger working principle :
| Chain bucket gold dredger . throuth the electric motor to drive chain bucket dig the mixture of sand .mud . stone and gold. then the bucket put mixture into the the drum screen to separate mixture . Standard material will into the gold seledtion device to select by vibration . non -standard material will into the river by belt convery or other place . all power from generator sets . position use the winch to fix the dold dredger when it is working . |
| Item \type | Hull size | Dredging depth | Drum scrren power | Generator power and brand | Dredging power | Lifting power | Chain bucket capacity |
| QH-60 | 24m | 7m | 5.5kw | Cummins /75kw | 35kw | 7.5kw | 0.035m3 |
| QH-80 | 27m | 12m | 5.5kw | Cummins/75kw | 55kw | 18kw | 0.05m3 |
| QH-100 | 30m | 13m | 5.5kw | Cummins /75kw | 55kw | 22kw | 0.08m3 |
| QH-120 | 35m | 15m | 7.5kw | Cummins/75kw | 75kw | 22kw | 0.08m3 |
| QH-150 | 38m | 18m | 11kw | Cummins /75kw | 75kw | 22kw | 0.08m3 |
1.Chain Bucket System
Model:Set Sail -100~300
Dimension:24*5.4*4.8m
Capacity:50~300t/h
Power:150~300KW
Max:dredging depth:20m
Min.Dredging depth:5m
Mesh open size:6-20mm
Max.Dredging size:300m
- 2.Set Sail type centrifugal concentrator
Model:STL100
Capacity:8-100t/h
Feeding Size:0-6mm
Feeding Density:<30%
Recoil Water:40-60m3/h
Fine Ora Output:120-160kg/time
Motor Power:15kw
Recovery Rate: 99%
Diamension:2500*2000*2400
Weight:3500kg
3.Pulsating Sluice Box
Capacity:40-50m3/h
Motor Power:5.5kw,1.1kw(hydraulic)
Feeding Size:0-15mm
Feeding Density:30%
Water Consumption:50-65m3/h
Vibration Frequency:32/min
Dimension:6000*1100*1000mm
Weight:1850 kg
4.Screen System
Name: Gold Trommel Screen
Size (mm): φ1500*3500 or according to processing capacity
Remark: 2 layer trommel screen
Function: for washing, screening and separating the minerals
Water spray pipes: on both sides of the trommel
Mesh size: `12mm and 6mm or according to clients requirement
Size (mm): φ1500*3500 or according to processing capacity
Remark: 2 layer trommel screen
Function: for washing, screening and separating the minerals
Water spray pipes: on both sides of the trommel
Mesh size: `12mm and 6mm or according to clients requirement
5.Power System
Name: Cummins diesel Generator
Power: 100Kw-400Kw
Brand: Cummins, Weichai, or as required
Function: supplying power to all the systems
Power: 100Kw-400Kw
Brand: Cummins, Weichai, or as required
Function: supplying power to all the systems

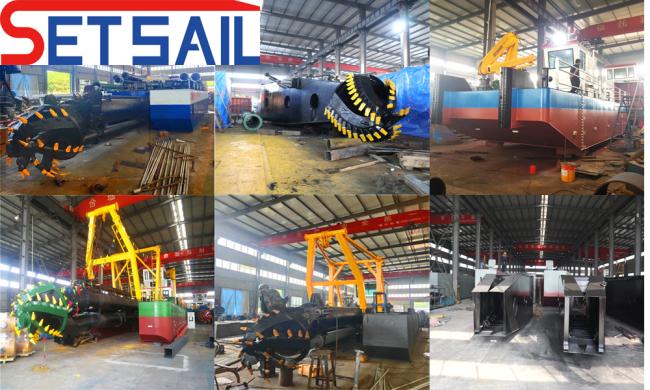

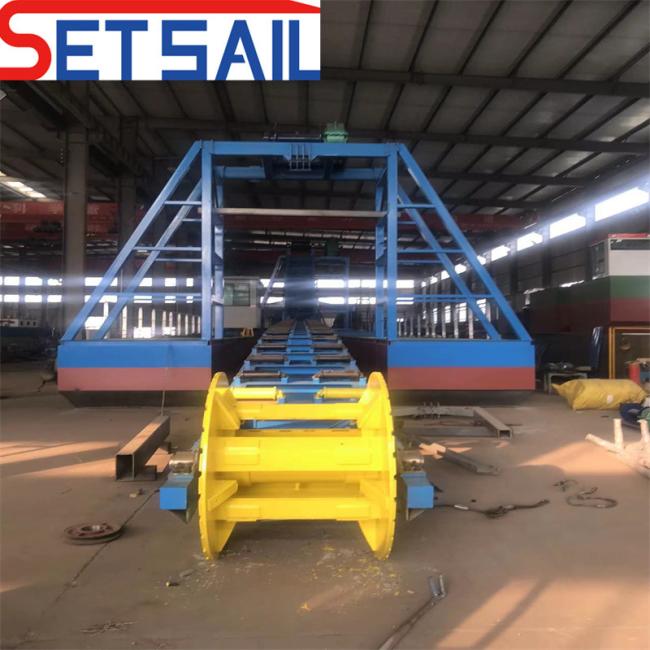

6.workshop :
7. Set sail service :
| 1 | Profestional people serve the technical consult. |
| 2 | All the mining machinery can be coustomed. |
| 3 | We are factory which can provide the higher quality and lower price. |
| 4 | Offering spare parts at a discounted price. |
| 5 | Responsible Sales team design team manufacture team available 24/7 to best serve clients. |
| 6 | Free repair if quality problems happen. |
| 7 | Provide professional service and providesolution in a timely manner. |
| 8 | Free field Installation commissioning training and and free product drawings. |
8.Company profile :
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
9.Product feature :
| The dredging bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed, then trommel classifier, with single layer or double layer screens, will separate the gravels, clay balls, water plants with need sand. The find sand with fine gold & gold nuggests will be finished selection by the gold centrifuge,pulsating sluice box and fixed sluice box. After 3 process of gold panning, the gold recovery percentage can be upto 90%. |
| 1 | the gold particle size in mm? |
| 2 | if you will require the diesel generator? and any special requirement for the generator brand? |
| 3 | In the dredging raw ore, the sand & stone percentage? stone's size in mm? |
| 4 | How many meters for the dredge depth? |
| 5 | How many cubic meter per hour for the deal capacity? |
12. Customer visit and factory certification :
