Gravity Separator for Agitating Chute Gold and Diamond Machinery Advanced Technology
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description

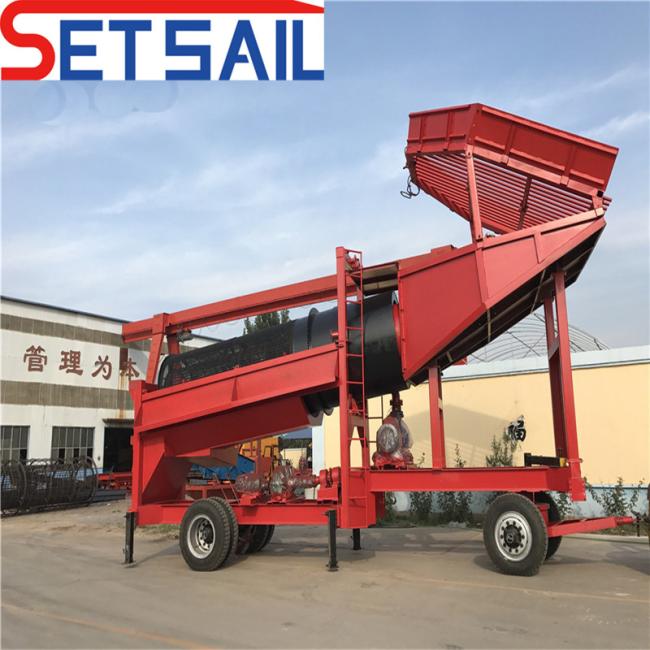

Agitate chute gold and diamond machinery for land
General description : | Land mining machinery is widely used for land gold .diamond and iron sand so on , according to the different material and proportion to choose the fine selection device . general seletion device : agitate chute with fixed chute can get the high recovery rate. centrifuge is the new technecal for gold . we will according to the different terrain to choose the most suitable device . jig is mainly selection way for land diamond . we can combine these selection device together to get the all kinds of material |
Picture:
All processing power from the generator sets or electric power . all production processing can be combined flexibly . all processing is consist of feeding system .screening system . water supply system.iielection mining system . according to the different mining to match the didderent election mining device and tailing processing system . generally electric machine : agitation chute with fixed chute . jigging and centrifuge so on .meantime we can according to the customer's inquirement to match the refine device .
Fine selection device and description :
| 1 | Land gold |
| 2 | Land diamond |
| 3 | Land gold and diamond |
| 1 | Agitate chute: this structure improve the the sectetion gold rate . can reach the 70%-80% . it is used conbine with the fixed chute (2 pictures) can reach the over 90%. power form the electric moter througt the transfer device to get the agitate . |
| 2 | Fixed gold chute . it is always used with agitate gold chute . centrifuge and jig. can get the gold and diamond . it assist the jig and centrifuge to improve the seclection rate . |
| 3 | Centrifuge : it is used for land and river gold .centrifuge make the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading. |
| 4 | Jig: it is used for the land and river diamond . according to the material different proportion to get the damond .The pulsation curve of a jig is a sawtooth shape, with fast upward flow and slow downward flow.The whole bed rises slowly and decreases slowly, the effective loosening time is long, the screen surface handling capacity of the unit increases significantly, the lower limit of particle size recovery is reduced, and the feeding material with too small particle size saves a lot. |
Basic size and parameter :
set sail 120 land mining machienry :
set sail 200 land mining machienry :
| Specifications of Professional Diamond Mining Equipment Machine on sale | |||
| Model | Set Sail 50 | Set Sail 100 | Set Sail 200 |
| Parameters | |||
| Size /mm | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
| Capacity | 50-80 tph | 100-150 tph | 200-300 tph |
| Power | 50 kw | 120 kw | 150 kw |
| Feeder Hopper /mm | 2000*2200 | 3000*2200 | 3800*3000 |
| Clay Scrubber /mm | φ1000*2000 | φ1200*3000 | φ1500*3000 |
| Trommel Screen /mm | φ1200*3000 | φ1500*3500 | φ1800*4000 |
| Sluice Box | 2 sets | 3 sets | 4 sets |
| Water Supply /m³ | 120 m³ | 240 m³ | 370 m³ |
| Wheels | 6 wheels | 10 wheels | 10 wheels |
| Recovery Rate | 98% | 98% | 98% |
| 1 | simple structure . portable machiner conbine togehter |
| 2 | This machiner can elect gold and diamond in the same time |
| 3 | High recovery gold and diamond ratio. |
| 4 | Low failure . High capacity . |
About Set Sail factory :
| 1 | 30 years' dredger manufacture workmanship. especially large water flow dredger field . |
| 2 | Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger. |
| 3 | Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service . |
| 4 | 6 manufacture shops .R&D center, testing pool. |
| 5 | Large production. ISO 9001 2015 quality system. CE certification so on . |
| 6 | Presences more than 40 countries. |
