QHLMM-10 Selecting Gold and Diamond Mining Machinery From The Land Capacity 100m3-500m3
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Selecting gold and diamond mining machinery from the land
General description : | Land mining machinery is widely used for land gold .diamond and iron sand so on , according to the different material and proportion to choose the fine selection device . general seletion device : agitate chute with fixed chute can get the high recovery rate. centrifuge is the new technecal for gold . we will according to the different terrain to choose the most suitable device . jig is mainly selection way for land diamond . we can combine these selection device together to get the all kinds of material |
Picture:
material feeds into the hopper with grille is lifted up by loader and excavator . This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
The trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal concentrator, spiral chute, jig, sluice, etc.
Our trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
Fine selection device and description :
| 1 | Agitate chute: this structure improve the the sectetion gold rate . can reach the 70%-80% . it is used conbine with the fixed chute (2 pictures) can reach the over 90%. power form the electric moter througt the transfer device to get the agitate . |
| 2 | Fixed gold chute . it is always used with agitate gold chute . centrifuge and jig. can get the gold and diamond . it assist the jig and centrifuge to improve the seclection rate . |
| 3 | Centrifuge : it is used for land and river gold .centrifuge make the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading. |
| 4 | Jig: it is used for the land and river diamond . according to the material different proportion to get the damond .The pulsation curve of a jig is a sawtooth shape, with fast upward flow and slow downward flow.The whole bed rises slowly and decreases slowly, the effective loosening time is long, the screen surface handling capacity of the unit increases significantly, the lower limit of particle size recovery is reduced, and the feeding material with too small particle size saves a lot. |
Basic size and parameter :
| Model | Capacity (t/h) | Power (Kw) | Drum dia. (mm) | Drum len. (mm) | Screen size (mm) | Dimension (mm) | Weight (Kg) |
| 1015 | 10-15 | 4 | 1000 | 1500 | 2-25 | 3400*1500*2030 | 2200 |
| 1020 | 15-25 | 5.5 | 1000 | 2000 | 2-25 | 3808*1500*2130 | 2800 |
| 1225 | 25-40 | 7.5 | 1200 | 2500 | 2-25 | 4176*1506*2232 | 4200 |
| 1230 | 40-60 | 7.5 | 1200 | 3000 | 2-25 | 4780*1506*2450 | 4800 |
| 1530 | 60-80 | 11 | 1500 | 3000 | 2-25 | 5535*1860*2525 | 5100 |
| 1545 | 80-150 | 15 | 1500 | 4500 | 2-25 | 7021*1860*2528 | 6000 |
| 1848 | 150-200 | 22 | 1800 | 4800 | 2-25 | 7400*2150*3000 | 7500 |
| 2055 | 200-260 | 30 | 2000 | 5500 | 2-25 | 8500*2500*3600 | 8600 |

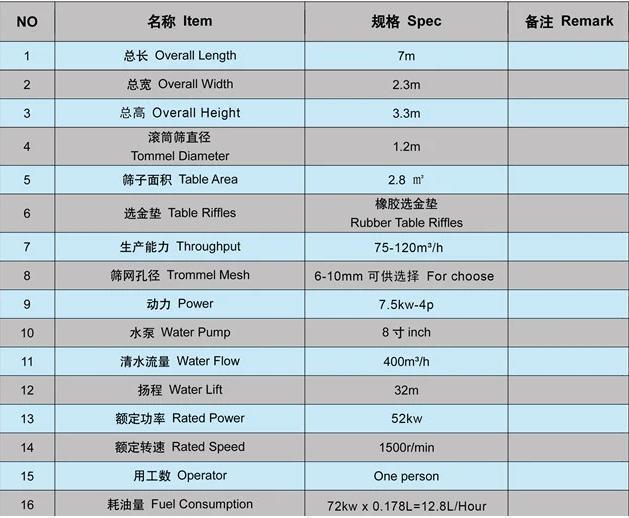

set sail 120 land mining machienry :

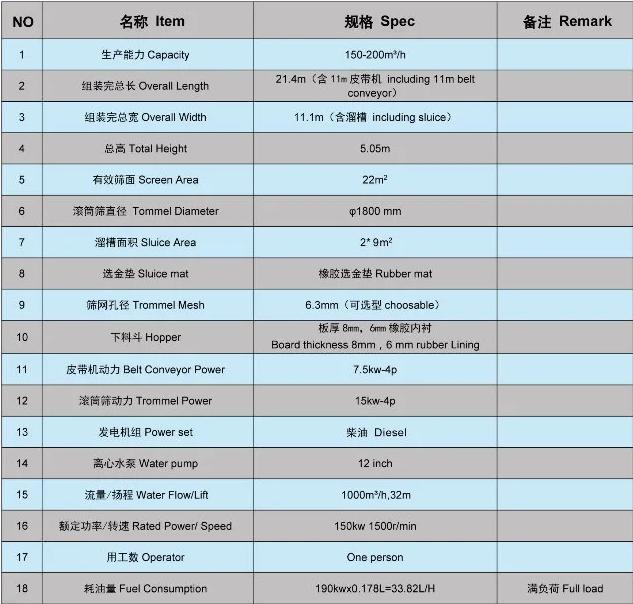

set sail 200 land mining machienry :

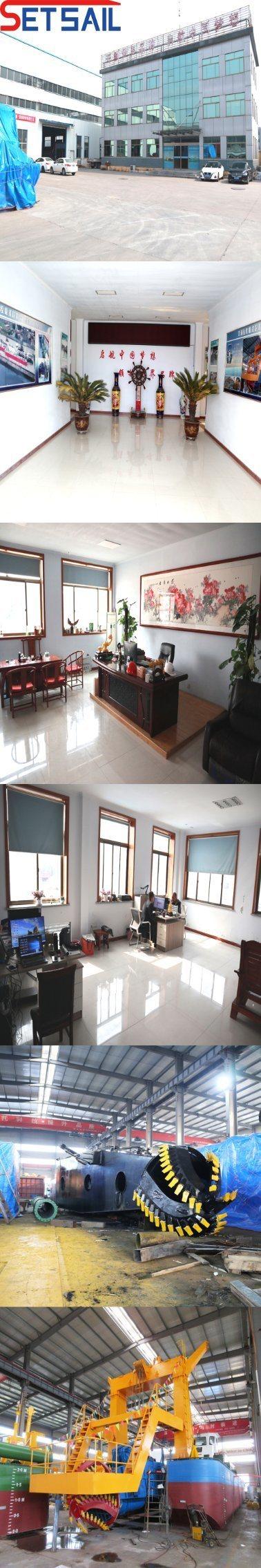

About Set Sail factory :
| 1 | 30 years' dredger manufacture workmanship. especially large water flow dredger field . |
| 2 | Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger. |
| 3 | Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service . |
| 4 | 6 manufacture shops .R&D center, testing pool. |
| 5 | Large production. ISO 9001 2015 quality system. CE certification so on . |
| 6 | Presences more than 40 countries. |

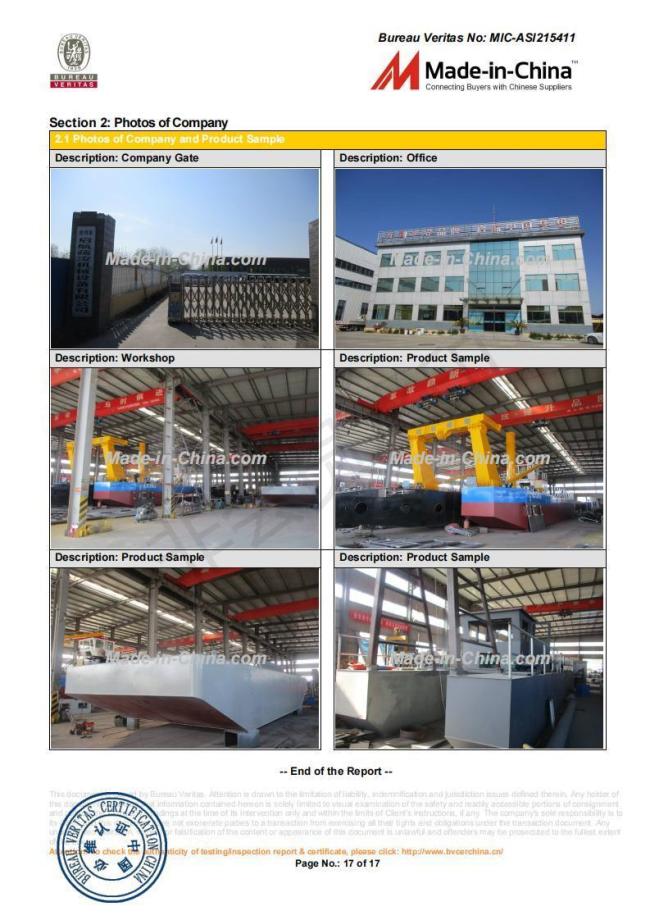

Made In China Platform authentication :
