Corrosion Resistant Land Mining Equipment with Fixed Chute and Full Payment Option
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Land mining gold diamond equipment with agitation and fixed chute
1. Description:
All processing power from the generator sets or electric power . all production processing can be combined flexibly . all processing is consist of feeding system .screening system . water supply system.iielection mining system . according to the different mining to match the didderent election mining device and tailing processing system . generally electric machine : agitation chute with fixed chute . jigging and centrifuge so on .meantime we can according to the customer's inquirement to match the refine device .
2.Images:
3.Land mining machiery application :
| 1 | Land gold |
| 2 | Land diamond |
| 3 | Land gold and diamond |
4. Basic prameter:
| Specifications of Professional Diamond Mining Equipment Machine on sale | |||
| Model | Set Sail 50 | Set Sail 100 | Set Sail 200 |
| Parameters | |||
| Size /mm | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
| Capacity | 50-80 tph | 100-150 tph | 200-300 tph |
| Power | 50 kw | 120 kw | 150 kw |
| Feeder Hopper /mm | 2000*2200 | 3000*2200 | 3800*3000 |
| Clay Scrubber /mm | φ1000*2000 | φ1200*3000 | φ1500*3000 |
| Trommel Screen /mm | φ1200*3000 | φ1500*3500 | φ1800*4000 |
| Sluice Box | 2 sets | 3 sets | 4 sets |
| Water Supply /m³ | 120 m³ | 240 m³ | 370 m³ |
| Wheels | 6 wheels | 10 wheels | 10 wheels |
| Recovery Rate | 98% | 98% | 98% |

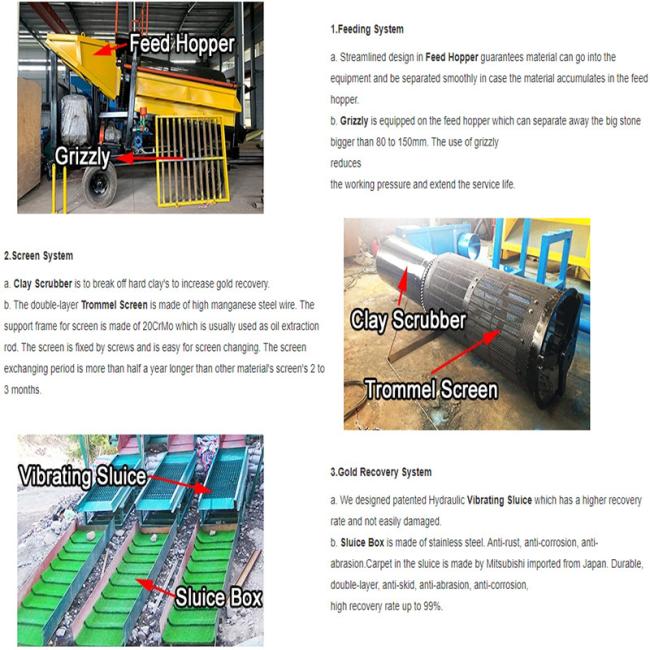

5.Detailed image :
6.Feature: | 1 | simple structure . portable machiner conbine togehter |
| 2 | This machiner can elect gold and diamond in the same time |
| 3 | High recovery gold and diamond ratio. |
| 4 | Low failure . High capacity . |

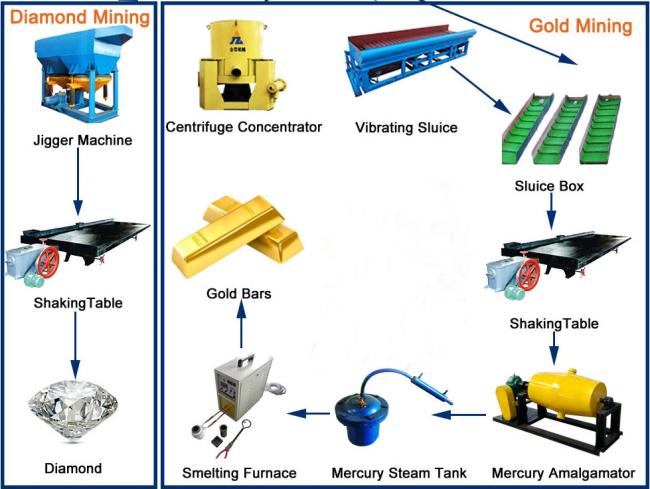

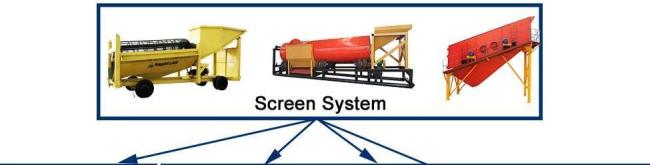

7. All device in the land mining production line :

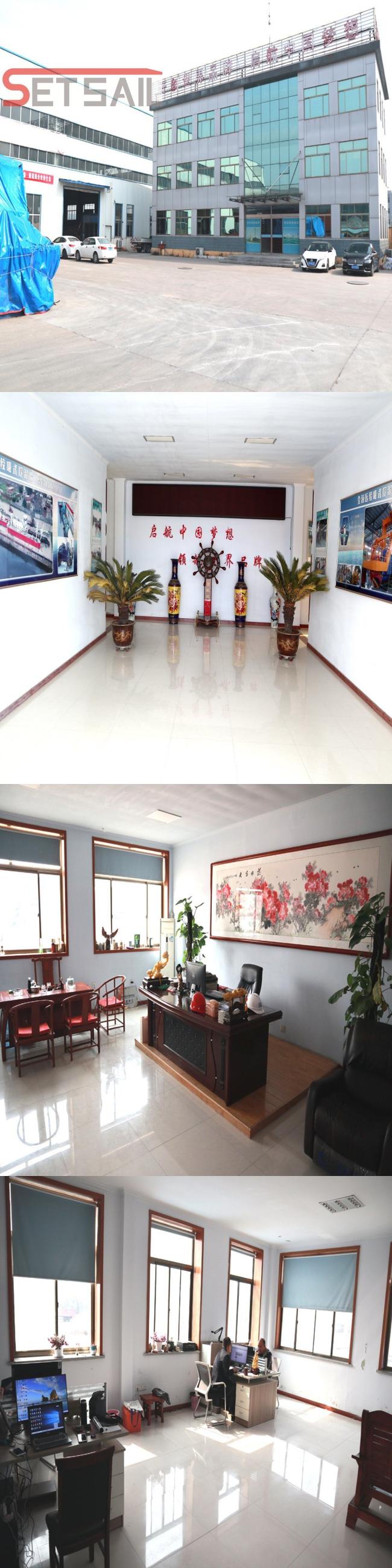

8.Company profile :
| Set sail factory is found in 1992 . it is one of the leader of china dredging machinery equipment industrial. We have manufacture experience more than 20 years so far. Our mainly product : all kinds power of cutter suction dredger (electric hydraulic ) jet suction dredger trailing suction dredger wheel suction dredger chain bucket dredger chain bucket mining dredger land mining machinery multi-function service working boat sand transportation boat sand wishing machinery etc. We can according to customers requirement to make the design and customize the product . |
