10T Washing Sand Gold Machine with Crusher Lifelong After-sales Service and Efficiency
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Hot Selling Washing sand gold Machine with Crusher
1. General description: | Wheel sand washing machine (stone washing machine )driven by the motor and reducer keep the impeller in the water tank making the circular to get rid of silt and others .after sand is cleared through the mesh in the wheel to into the belt converyor to the destination . if the sand so dirty we use the double water wheel washing wheel sand washing machine. wheel sand washing machine combins with crusher and drum scrren so on equipment to make the complete the production line |
mining dredger overview :
Chain bucket river mining dredger is used for river gold . diamond . tin and sand iron powder so on . The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed. then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water
mining dredger application :
Our factory is a professtional enterprise in the mineral field . our chain bucket mining dredger is suitable for river .lake .reservoir and gangue so on . use bucket gold dredger can get the gold . diamond and orin ore and other minerals . outstanding performance can get 85%-95% in recovery percentage .meantime we can offer the first -class fine seletion equipment .
3. Basic parameter :
| Basic Parameters of Sand Washer | ||||
| Type | QHSWM12-26 | QHSWM15-28 | QHSWM18-30 | QHSWM20-30 |
| Dimension(L*W*H) | 3400x2300x2700 | 3600x2800x2900 | 3800x3100x3100 | 3800x3400x3100 |
| Water wheel dimension | φ2600x1200double row | φ2800x1500double | φ3000x1800triplex | φ3000x2000triplex |
| Material | 8mm | 8mm | 10mm | 10mm |
| Feeding hopper dimension | 3400x1300 | 3600x1600 | 3800x1900 | 3800x2100 |
| Material | 4mm | 4mm | 5mm | 5mm |
| Working capacity m³/h | 50-60 | 80-100 | 120-150 | 150-180 |
| Max.approval grain size(mm) | ≤12 | ≤12 | ≤12 | ≤12 |
| Main Power(kw) | 7.5kw-4 | 11kw-4 | 15kw-4 | 18.5kw-4 |
| Submersible pump | ||||
| Power | 5.5kw | 7.5kw | 7.5kw | 5.5kw x2 |
| Clean Water Flow m³/h | 60 | 65 | 65 | 60 |
| Conveyor | ||||
| Length mm | 10000 | 10000 | 10000 | 10000 |
| Belt width mm | 600 | 800 | 1000 | 1000 |
| Frame material | 12#channel steel | 12#channel steel | 12#channel steel | 14#channel steel |
| Electromotor kw | 5.5 | 7.5 | 11 | 15 |
4.Product advantage:
| 1 | Very simple and fast assembly and dis-assembly. simple operation .easy to control. |
| 2 | Self propulsion system. can be propulsed in place when moved. |
| 3 | High efficience. large output and long distance of pump.Pumping depth reaches up to 20-30m underwater |
| 4 | Hull consists of multiple pontoons connected by proven coupling system. |
| 5 | Highly efficient fuel consumption and minimum overall operational costs |
| 6 | Good access to all parts.especially the dredge pump wearing parts.Fresh water cooling system |
| 7 | OEM. ODM. ISO .CE .customization are available |

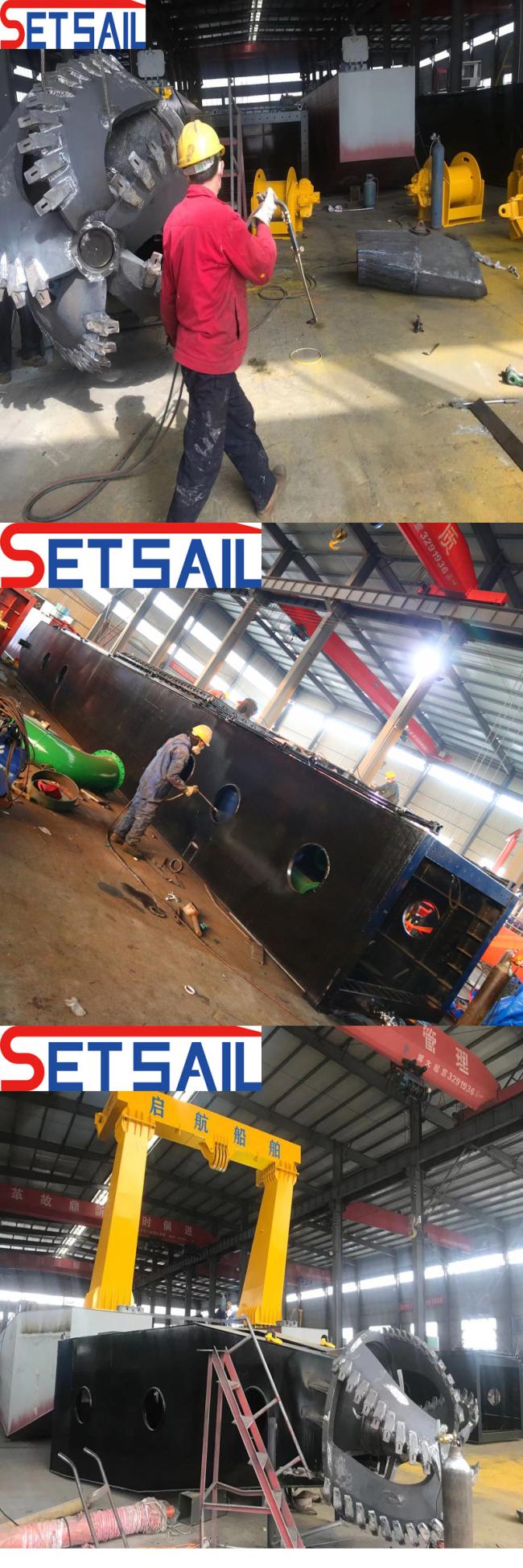

5.our wrokshop:

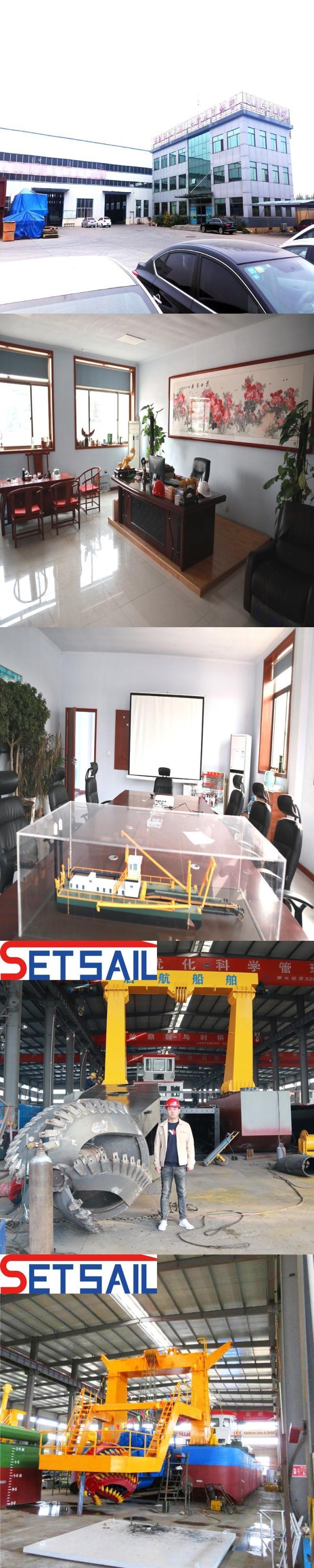

6.our factory :
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
 |
7. customer visited our factory :
8. Factory certificate:
9. other product:
10. Contact card:
