Durable Thermoplastic Road Marking Paint with Highly Reflective Glass Beads for White and Yellow Traffic Safety Solutions

Price Negotiable
Price: Pending
MOQ: 1bag
Delivery Time: 5-8 working days
Brand: Huaqun
Product Description
Durable Thermoplastic Paint With Highly Reflective Glass Beads For White And Yellow Road Marking Traffic Safety Solutions

Guangzhou factory Reflective Thermoplastic Powder Coatings Paint Road Marking Paint. Thermoplastic Road Marking Paint is a kind of road marking material that uses thermoplastic petroleum resin as binder with qualified pigment filler and additive. This material offers advantages of fast drying, easy execution, high reflection, and long service life.

Road Marking Paint product display
Product Specifications
ItemRoad marking paint
AppearancePowder
Model NumberHQT-MP401
ColorWhite, yellow, or custom
Main Raw MaterialPetroleum resin
Weight25kg/bag
Dry speed≤3 min (23℃)
Intermix glass bead0%, 10%, 20%, 25%, 30%
Theoretical Spreading rate4-5 kg/㎡
Application MethodScreeding, spray, extrusion, structural
StorageDry, cool, avoid direct sunlight
Expiration DateOne Year
Road Marking Paint application processRoad Marking Paint materials
Main Materials
  • Titanium dioxide: Good whiteness, high purity, small particle size, low oil absorption
  • C5 resin: Outstanding affinity for pigments, good compatibility with EVA, good heat stability
  • PE wax: Heat resistance, abrasion resistance, acts as lubricant, increases paint processing performance
  • Calcium carbonate: High precise classification, high whiteness
  • Glass beads: Drop on glass beads, intermix glass bead using top brand beads for high reflectivity
Available Standards
Chinese StandardBS StandardAmerican StandardOther Standard
JT/T280-2004BS3262AASHTOCustomized
Key Features
Strong adhesion strength: Reasonable resin content with special rubber elastomer in primer ensures strong adhesion and no peeling off when applied correctly
Good cracking resistance: Superior cracking resistance compared to normal paint
Bright color: Highest level color with reasonable proportion ensures good weather resistance without color change during long-term exposure
High usage ratio: Low density, big volume, and high usage ratio
Good dirt resistance: High-quality PE wax from Germany ensures excellent dirt resistance
Features of Road Marking Paint
Road Marking Paint in useRoad Marking Paint application diagram

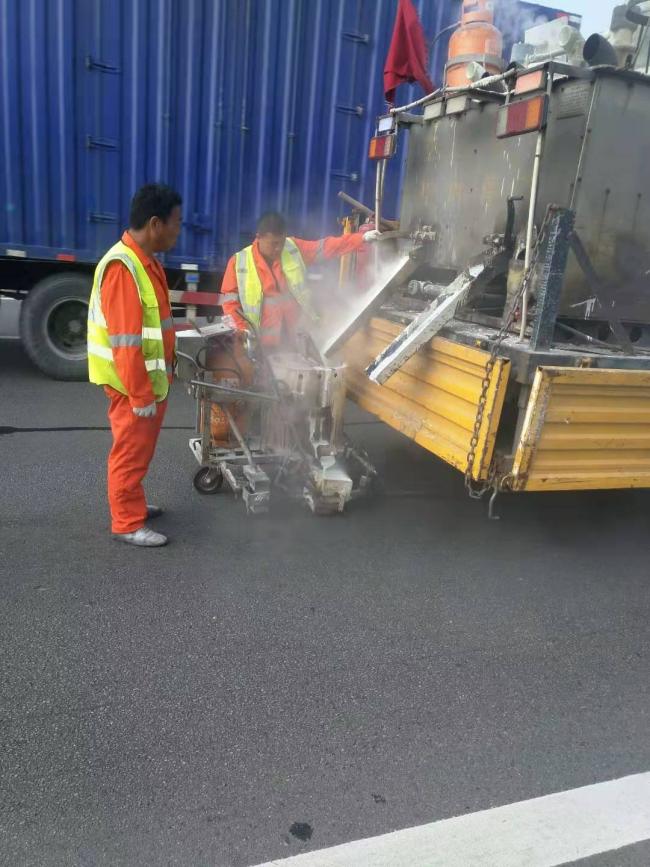

Application Process
The marking line should be applied after the primer is completely dried. Applying before drying may cause flux penetration and bubbles in the coating film.
Thermoplastic paint is solid powder at normal temperature. Place paint into melting kneader and stir while melting at 200-210°C. Transfer molten coating to marking machine's insulation hopper and maintain material in molten state.
For optimal night reflection, spread glass beads simultaneously with line application. Glass beads should sink 60-70% into coating film for best reflective effect.
Allow marking line to solidify naturally for optimal adhesiveness and trimming. If speed-limiting cooling is necessary, wait briefly after coating before applying water.
Application Step 1Application Step 2Application Step 3Application Step 4Application Step 5Application Step 6Application Process overview
Project Showcase
Project Showcase 1Project Showcase 2Project Showcase 3

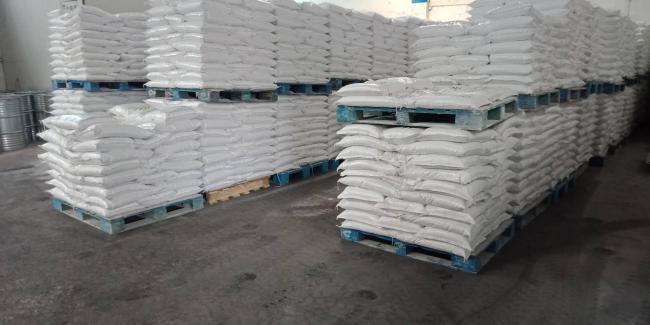

Packaging & Delivery
  • 1 color per bag
  • 25kg per bag
  • 27 tons per 20' container for road marking paint
Packaging DetailsPackaging and Delivery
Company Information

Guangdong Hua Qun Traffic Facilities Co., Ltd. By Shares was founded in 2010 with two factories located in Guangzhou and Zhanjiang, Guangdong province. With registered capital of 13.66 million RMB and import/export rights, Hua Qun specializes in road safety products for over 10 years.
We provide thermoplastic paint, glass beads, traffic signs, speed bumps, rubber wheel stoppers, and traffic cones with competitive pricing, having cooperated with more than 100 government projects. Our company holds ISO 9001 certifications and provides OEM and ODM services with worldwide export coverage.
