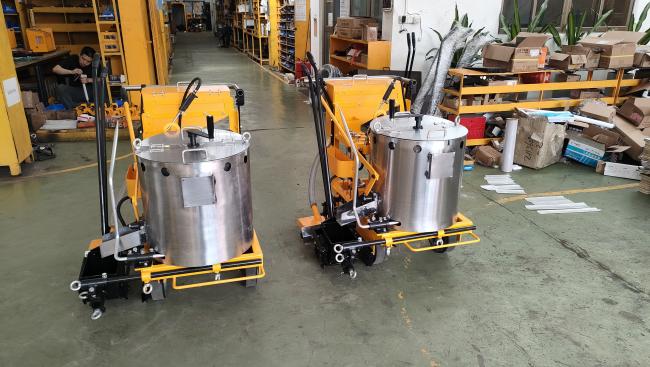

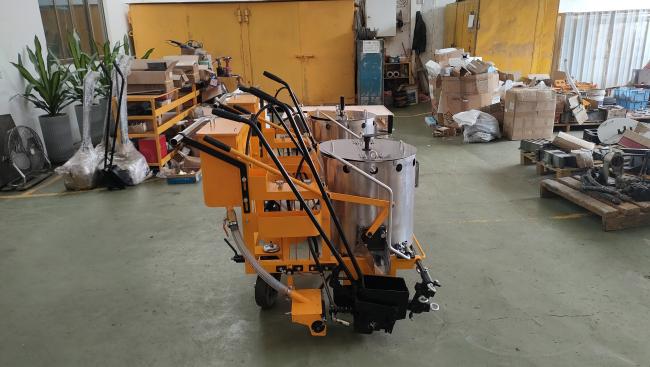

Hand Push Thermoplastic Road Marking Machine Screed Type Road Line Marking Equipment
The HQ-H Hand Push Thermoplastic Road Marking Machine (Screed Type) is one of the key pieces of equipment used in thermoplastic road marking construction. It is widely applied for road line marking, parking lot marking, factory area marking, pedestrian crossings, and other thermoplastic traffic marking projects.This machine adopts a manual hand-push structure without engine drive, offering flexible operation and easy maintenance. It is suitable for urban roads, residential areas, parking lots, and medium to small road marking projects. The machine structure has been optimized for better stability, smoother operation, improved marking quality, and reduced operator fatigue.During thermoplastic marking construction, the machine keeps the paint in a molten condition through its insulated hopper system, while the screed-type marking shoe ensures even coating thickness and smooth line edges. At the same time, reflective glass beads are automatically dispensed onto the marking surface to improve nighttime visibility and road safety.Thermoplastic road markings are widely recognized for their excellent wear resistance, strong adhesion, fast drying speed, and high reflective performance.
1. Improved Stability for Straighter Lines
The machine adopts a widened wheelbase and optimized center-of-gravity design, ensuring smoother and more stable operation, especially during zebra crossing and double-line applications.
2. Lightweight and Labor-Saving Design
The upgraded frame structure and shaft system make the machine lighter and easier to operate for long working hours.
3. Smooth and Clean Line Edges
The screed-type marking shoe helps control paint flow evenly, reducing rough edges and ensuring clean, professional road markings.
4. Automatic Glass Bead Dispensing System
The gear-driven automatic clutch bead dispenser provides synchronized and uniform glass bead spreading, enhancing nighttime reflectivity.
5. Excellent Thermal Insulation Performance
The large-capacity insulated paint tank helps maintain thermoplastic paint temperature for continuous operation and improved efficiency.
6. Multiple Line Width Applications

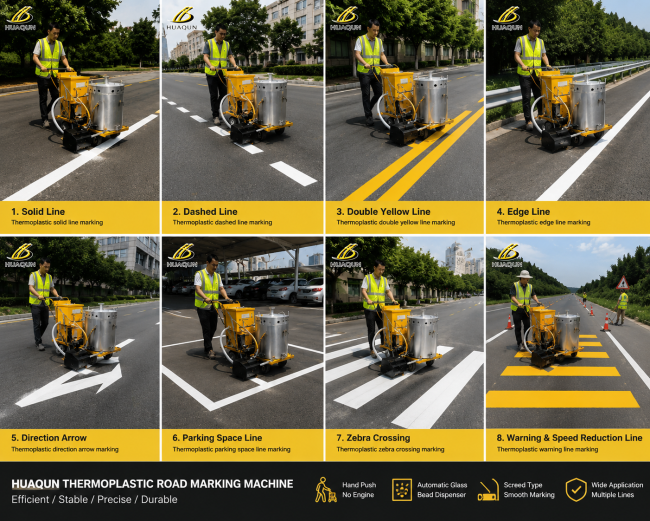

Supports 100mm, 150mm, and 200mm line widths for solid lines, dashed lines, and double-line applications.
| Item | Specification |
|---|---|
| Model | HQ-H |
| Drive Type | Manual Hand Push / No Engine |
| Dimensions | 1200mm * 900mm * 900mm |
| Output Capacity | About 1500m/h for standard single continuous line |
| Application Width | 100mm / 150mm / 200mm |
| Max. Working Temperature | 230℃ |
| Line Types | Continuous, dual, dashed |
| Thermoplastic Tank Capacity | 105kg |
| Function | Keep melted paint warm and perform marking |
| Total Machine Weight | 125kg |
| Glass Bead Box Capacity | 25kg |
| Bead Dispensing Method | Gear Driven, Automatically Clutch |

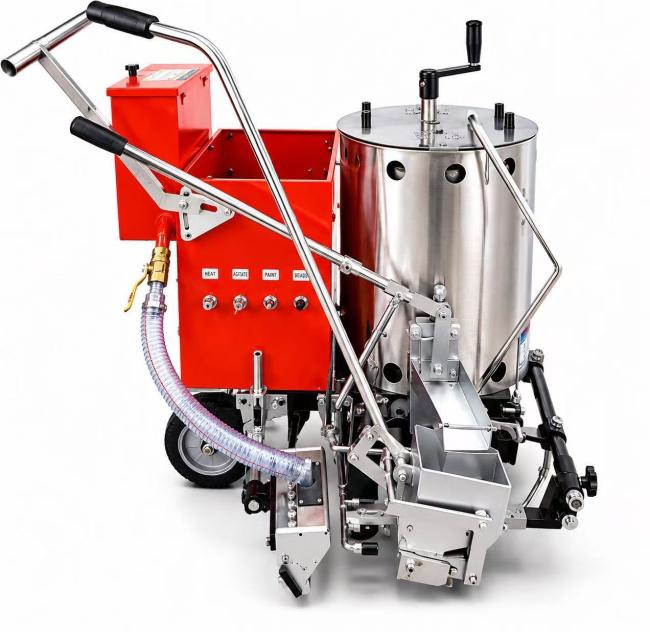

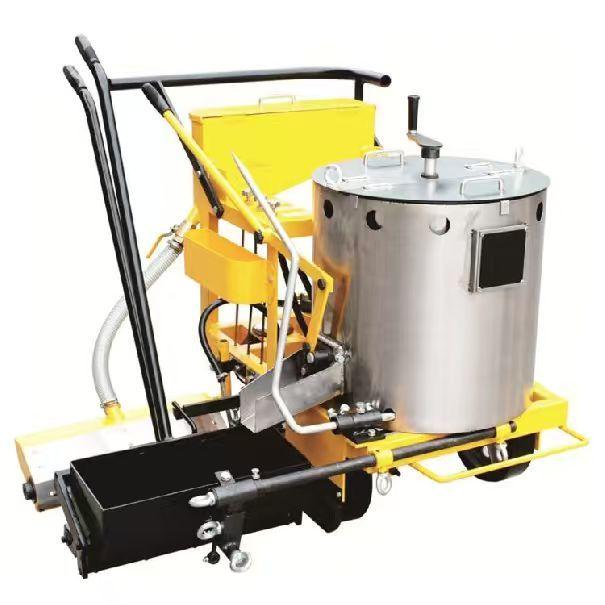

①Stainless Steel Insulated Paint Tank: Large-capacity stainless steel tank with strong heat resistance and durability for long-term thermoplastic marking work.
②Screed-Type Marking Shoe: Ensures uniform coating thickness and smooth marking edges for professional line quality.
③Glass Bead Dispenser: Automatically spreads reflective glass beads immediately after marking application for enhanced nighttime visibility.
④Guide Wheel Design: Improves straight-line operation accuracy and reduces marking deviation.
⑤Ergonomic Handle Structure: Provides comfortable operation and reduces operator fatigue during long construction periods.

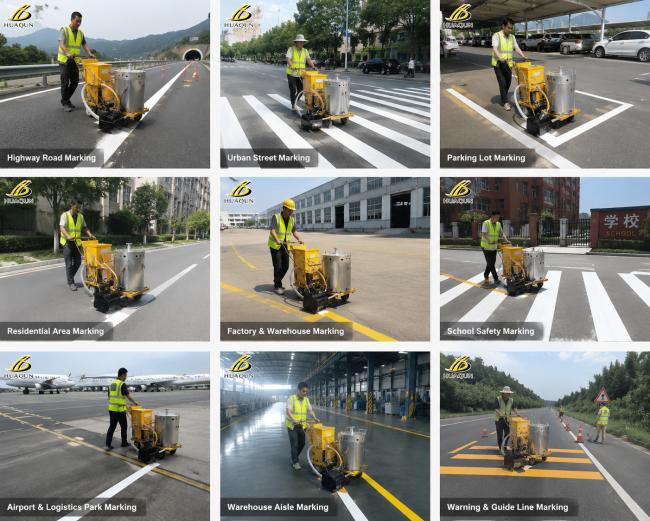

- ①Highway road marking
- ②Urban road marking
- ③Parking lot line marking
- ④Residential area marking
- ⑤Factory and warehouse traffic lines
- ⑥School safety markings
- ⑦Airport and logistics park markings
- ⑧Zebra crossing and warning lines
- ①Highway road marking
- ②Urban road marking
- ③Parking lot line marking
- ④ Residential area marking
- ⑤Factory and warehouse traffic lines
- ⑥School safety markings
- ⑦Airport and logistics park markings
- ⑧ Zebra crossing and warning lines
