High Power DM113 Electric Drum Motor Belt Conveyor Roller With Antislip Thread 230 Voltage 1.1KW Effective Power

Product Description

If you're looking for a high-performance drum motor that delivers robust power, low noise, and exceptional durability for modern belt conveyor roller applications, the DM113 series is the perfect solution. This electric drum motor is engineered for demanding environments where space optimization, low noise levels, and consistent high torque output are key.

Designed with a precision-ground high alloy steel gear system, an antislip threaded roller surface, and IP66/67 sealing, this motorized roller is ideal for light to medium load conveyors in sectors such as airport logistics, packaging, pharmaceuticals, food processing, and steel/plastic modular belt systems.

Product Features

• High Power Output: Up to 1.1KW effective power and 81.21 N·m torque for medium to heavy-duty conveyor applications

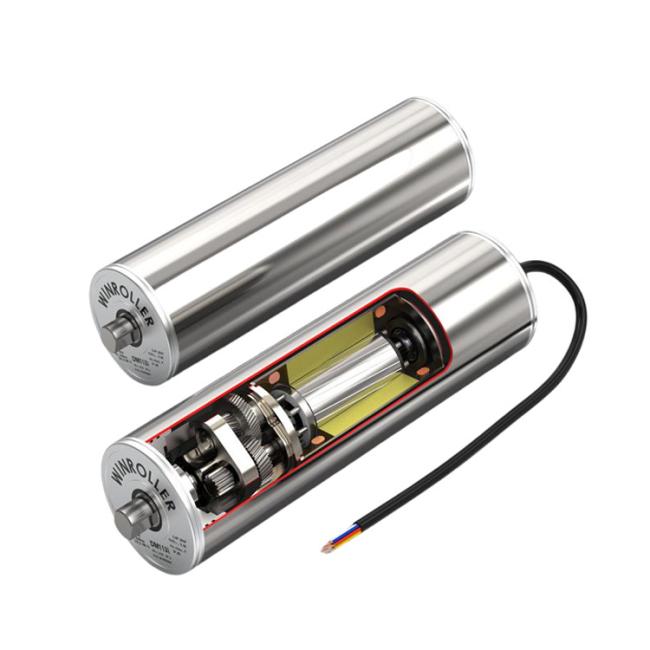

• Integrated Design: All-in-one construction with motor, gearbox, and roller combined for space-saving and easy installation
• Global Voltage Compatibility: Supports 230V, 50Hz/60Hz, with F-class insulation and built-in thermal overload protection
• Low Noise Operation: Equipped with precision-ground high alloy steel gears to ensure smooth and quiet transmission
• IP66/IP67 Protection: Dual-seal design offers superior dust and water resistance, suitable for harsh and washdown environments
• Antislip Surface: Roller surface is treated with antislip threading for enhanced belt grip and reduced slippage

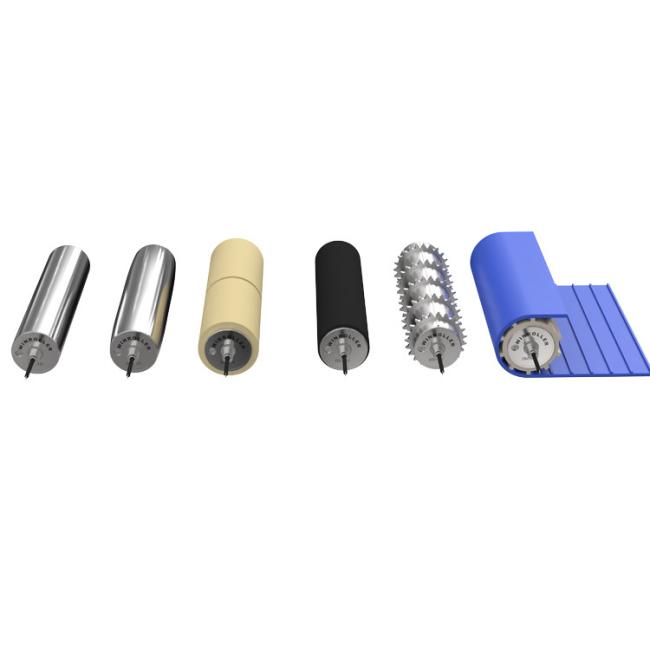

• Material Options: Available in galvanized carbon steel or food-grade SS304 stainless steel to suit various industries
• Efficient Cooling: Oil-immersed motor structure improves heat dissipation and extends service life
• Low Maintenance: Factory pre-lubricated; oil replacement required only every 50,000 operating hours
• Customizable Design: Tailored roller length, belt speed, and optional backstop device available
• Certified Safety: CE-certified to meet international safety and performance standards

Application Scenarios

The DM113 electric drum motor is widely applied in:

• Airport check-in conveyors

• Small-scale belt conveyors

• Packaging and labeling equipment

• Belt weighers and sortation lines

• Pharmaceutical manufacturing lines

• Food-grade processing systems

• Modular steel or plastic belt conveyors

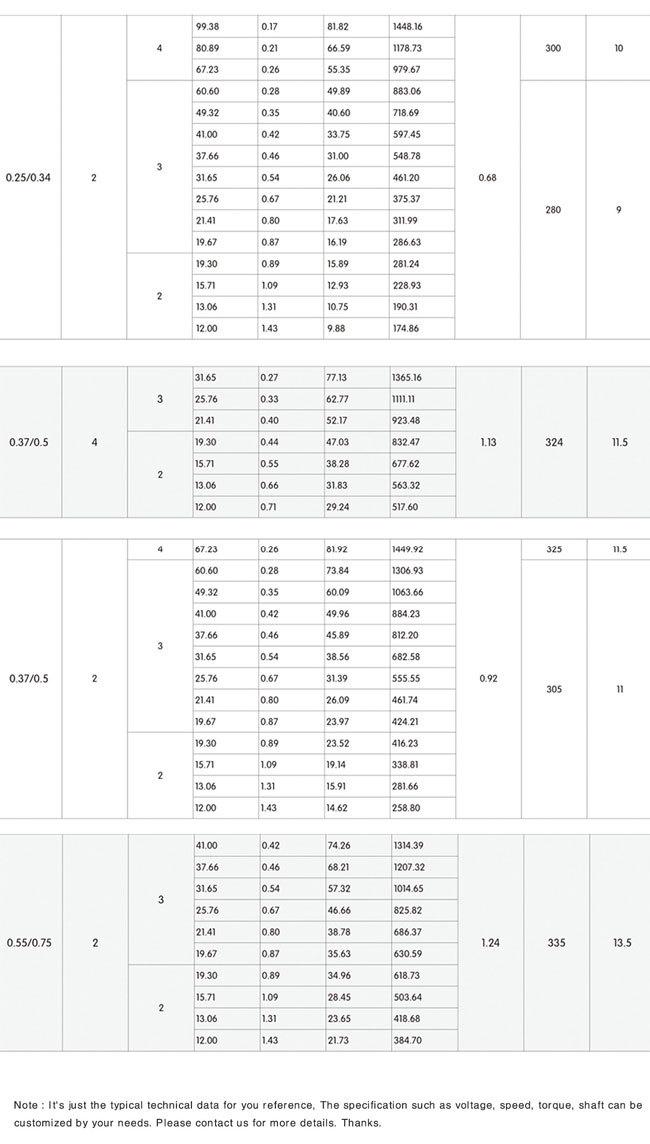

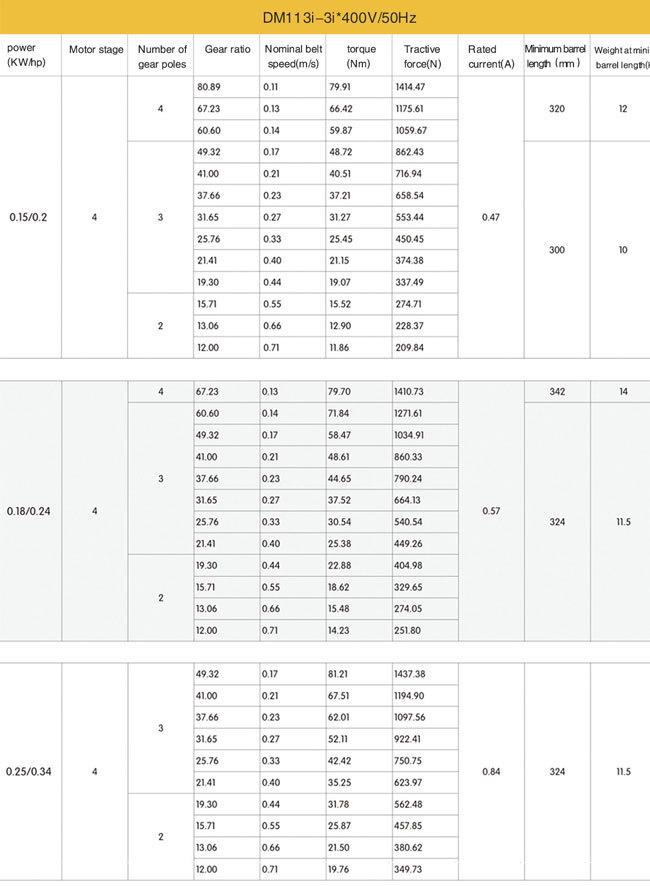

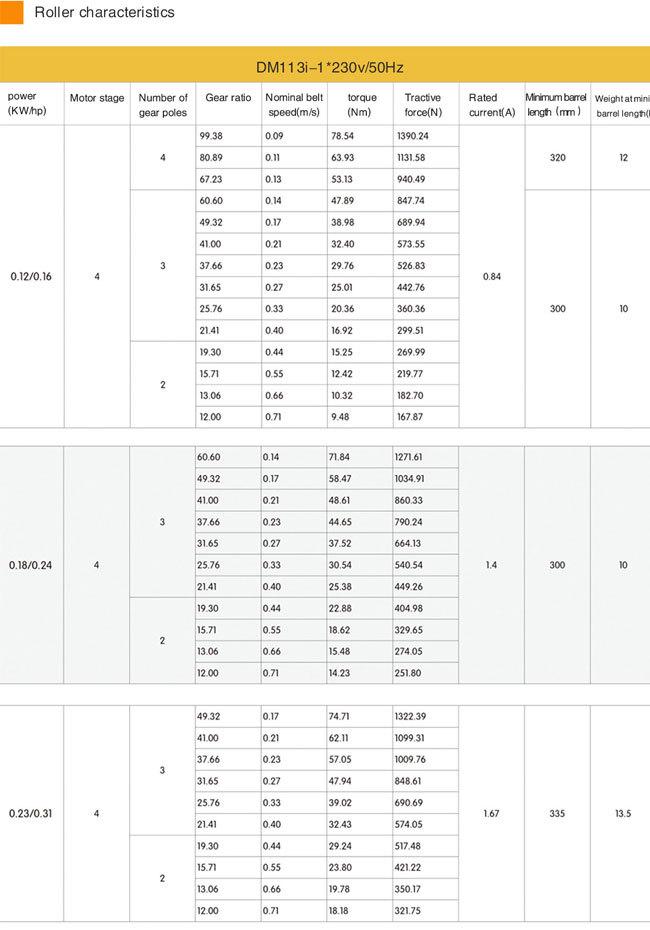

Product Parameters

Frequently Asked Questions (FAQ)

1. What is a drum motor used for?

A drum motor is a compact, self-contained drive system used to power conveyor belts. It combines motor, gearbox, and drive roller into one sealed unit for easy installation and maintenance.

2. How is this drum motor different from a traditional motor and gearbox?

Unlike traditional systems that require separate motors, gearboxes, and chains, this drum motor integrates all components inside the roller, reducing space, noise, and maintenance needs.

3. Is the DM113 suitable for food processing?

Yes. The DM113 is available with SS304 stainless steel construction and antislip thread, making it suitable for hygienic applications like food and pharmaceuticals.

4. Can the roller be customized for different conveyor sizes?

Absolutely. Roller length, speed, and diameter can be tailored based on your conveyor's specific design and load requirements.

5. Is the product CE certified?

Yes. The DM113 drum motor is CE-certified and meets international safety and performance standards.
