Semi-Automatic Hydraulic Vibration Compressed Interlocking Building Block Brick Making Machine
Multi-functional Bricks Making Machine And Blocks Equipment Manual Concrete Block Making Machine
Product Description
The block forming machine uses stone powder, river sand, cement, tailings, clay, construction waste and other industrial waste as raw materials, and uses vibration extrusion power to process it into various new building materials, such as tile bricks, colored bricks, and road bricks. , hollow cement blocks, porous bricks, standard bricks, etc., small in size, flexible, low investment, and no need for sintering. This equipment typically works by compressing concrete or other building materials into blocks of specific shapes and sizes. Block forming machines play an important role in the production of building materials as they increase production efficiency and ensure block consistency and quality.
MC4-30/35A Block Molding Machine
Details Images 1. Name:Reverse-switching. It improves the operability of the machine.
2. Name:Vibrating Motor. Domestic famous motor, the advantages of rapid braking, simple structure, high reliability, strong versatility, etc.
3. Name:Mold. All frame from the steel by carburizing treatment, enhance the surface hardness and wear resistance,extende the using life.
4. Name:Wearing Part. Low friction bearings are often important for efficiency, to reduce wear and to facilitate high speeds.

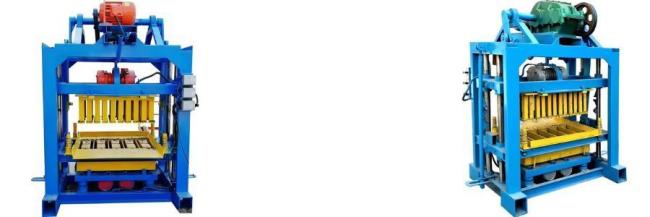

Other Types:1.MC4-30/35B Block Forming Machine with Hopper
2.MC4-40A Block Molding Machine
3.MC Manual Brick Making Machine
Applicable materials Our company's block molding machine has a wide range of applications, such as river sand, construction waste, slag, stone powder, coal powder, pottery, coal gangue, pebbles, cement, etc.

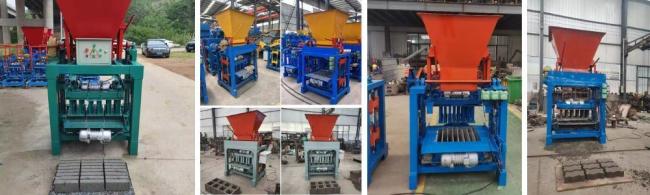

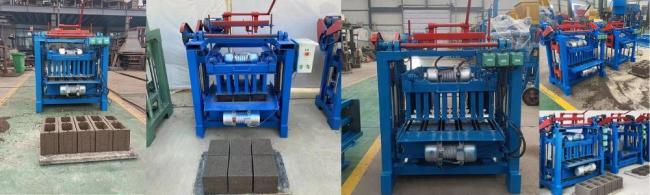

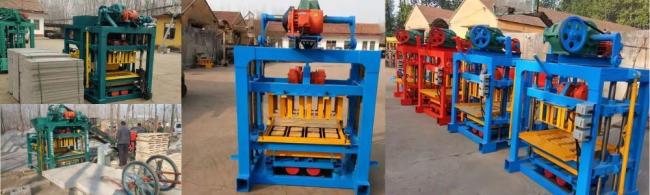

Effect Display
| Model | Molding Cycle | Equipped with Power | Class is Produced(Block) | Plate Size | Overall Size | The Wight | Number of Operators |
| MC 4-30A | 35 s | 6.4 Kw | Standard Bricks 240*54*115 mm 15000 Pieces Hollow Bricks 390*190*190 mm 2400 Pieces | 850*550*30 mm | 1250*1350*1550 mm | 800 Kg | 2-3 People |
| MC 4-35A | 35 s | 4.8 Kw | Standard Bricks 240*54*115 mm 15000 Pieces Hollow Brick 390*190*190 mm 2400 Pieces | 850*550*30 mm | 1250*1350*1550 mm | 750 Kg | 2-3 People |
| MC 4-40A | 35 s | 7.5 Kw | Standard Bricks 240*54*115 mm 20000 Pieces Hollow Bricks 390*190*190 mm 3200 Pieces | 850*550*30 mm | 1500*1300*1850 mm | 1100 Kg | 2-3 People |
| MC 4-30B | 35 s | 6.3 Kw | Standard Bricks 240*54*115 mm 20000 Pieces Hollow Bricks 390*190*190 mm 3200 Pieces | 850*550*30 mm | 1200*1300*1950 mm | 835 Kg | 2-3 People |
| MC 4-35B | 35 s | 4.8 Kw | Standard Bricks 240*54*115 mm 20000 Pieces Hollow Bricks 390*190*190 mm 3200 Pieces | 850*550*30 mm | 1200*1300*1950 mm | 780 Kg | 2-3 People |
Product Display
Henan Mingchuang Machinery Manufacturing Co., Ltd. is a professional supplier of crushing, sorting, drying equipment, environmental protection machinery. With 18 years of experience in machinery and equipment processing, The production of multifunctional shredder machine, metal crusher, plastic crusher washing line ,copper granulator recycling equipment, etc.
we can provide highly customized solutions according to customers' needs, and win the recognition of industry users with advanced technology and excellent product quality. For a long time, we always adhere to the road of globalization,we have exported to Central Asia, Southeast Asia, South America,and other more than 130 countries and regions.
FAQ
1,How do I get the right device for my needs?
Tell me what are your raw materials? Pebble,River sand,Stone power,Construction waste,waste slag and more?
What is the approximate size of the raw material in millimeters? Describe the shape of the raw material.
How many kilograms of raw materials are processed per hour? Capacity 500-800 Kg/H or 1000-1400 Kg/H?
What is the final product? Pebble,river sand,stone power,etc can be processed into specific sizes.
2,Why choose us?
We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.
