14th Gen Core Ultra 5 125U Industrial Mini PC with Fanless Design and Din-Rail Mount for Edge Computing

Price Negotiable

Price: US $360-490

MOQ: 1

Delivery Time: 5-8 Work Days

Brand: SMATiPC

Product Description

14th Gen Core Ultra 5 125U Industrial Mini PC with Fanless Design and Din-Rail Mount for Edge Computing

Product Overview

14th Generation Industrial Mini PC featuring Intel Core Ultra 5 125U processor in a fanless DIN-rail design for edge computing and industrial control applications.

14th Generation Industrial Mini PC front view

Technical Specifications

Model	N3422
Case Color	Metal gray (Custom colors available)
Material	Aviation grade aluminum alloy for fanless efficient heat dissipation
Processor Options	Intel Core Ultra 5 125U (12 cores, 14 threads, Max Turbo 4.3 GHz) Intel Core Ultra 7 155U (12 cores, 14 threads, Max Turbo 4.8 GHz) Intel AI Boost NPU (Max Frequency 1.4GHz)
Memory	1× DDR5 4800 SODIMM slot, Maximum 32 GB
Storage	1× M.2 2280 Slot, 1× 2.5" HDD or SSD bay
Display	Intel Graphics with 3× HD and 1× Type-C display ports, Maximum resolution 4096×2160 @ 60Hz
Front I/O Ports	2× COM (RS232/485), 1× SIM card slot, 2× USB 3.1, 2× USB 2.0, Power Button
Rear I/O Ports	1× DC power input, 3× 2.5G LAN ports, 1× Audio (supports microphone & speaker)
Expansion Slots	1× M.2 2280 M-Key (NVME protocol, PCIE4.0×4) 1× M.2 2230 E-key (supports WiFi, BT) 1× Mini PCIE slot (PCIE & USB2.0, supports 4G/WiFi) with external SIM card slot (Nano card) Optional expansion: 2× USB 2.0, 4× GPIO
Network	3× Intel i226-V 2.5G Ethernet ports
System Functions	Auto power-on, Timing boot, Wake On LAN, PXE boot, Watchdog (0-255 level), TPM2.0 security encryption
Power Supply	DC 12V
Operating Temperature	0℃ to +40℃ (Commercial HDD), -20℃ to +50℃ (Industrial SSD) with surface air flow
Operating Humidity	5% to 95% non-condensing

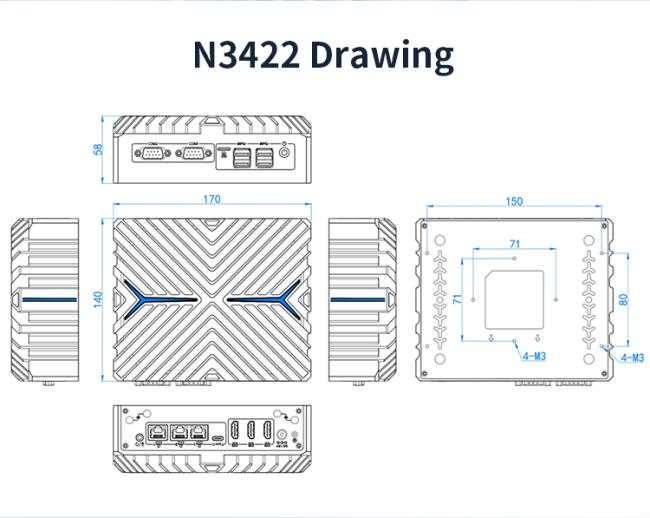

Dimensions	170 × 140 × 58 mm
Weight	1.1 kg
Applications	Industrial Control, Industrial Automation, Robotics, IoT Gateway, Edge Computing, Machine Vision, AGV/ARM, and more

Product Images

Industrial Mini PC side view showing ports

Industrial Mini PC rear panel connections

Industrial Mini PC in industrial environment

Industrial Mini PC close-up of processor area

Ordering & Shipping

Delivery Time: 1-3 days for samples, 15 working days for bulk orders
Packaging: Each unit in individual neutral box
Shipping Methods: DHL, FedEx, UPS for small quantities; air or sea freight for bulk orders

About SMATiPC

IWILL TECHNOLOGY quality control process

Why Choose SMATiPC

Frequently Asked Questions

Are you a manufacturer?

Yes, we have more than 20 years of R&D and manufacturing experience.

What is the Minimum Order Quantity (MOQ)?

We accept single unit sample orders for testing purposes.

What payment methods do you accept?

T/T, PayPal.

What is the lead time for your products?

3-5 days for samples, 15 working days for bulk orders.

Can you put my brand name (logo) on these products?

Yes, we provide comprehensive OEM/ODM services. The customization process includes:

Provide your specific requirements
Our design engineers create design drafts
You confirm the design draft
We begin production

How long is the warranty period?

All products include a 3-year warranty from delivery date (covering non-artificial damages). During warranty, we provide free repairs, though replacement parts may incur charges.
