N150 Mini PC Firewall Appliance with Dual 10GbE SFP+ Ports and DDR5 Memory for OPNsense
Price:
220-260
MOQ:
1
Delivery Time:
5-8 work days
Brand:
SMATiPC
Product Description
N1342 Intel Twin Lake Mini PC Firewall Appliance
A high-performance mini PC firewall appliance featuring Intel® Processor N150 with dual 10G SFP+ and dual 2.5GbE LAN ports, designed for network security, industrial automation, and edge computing applications.
Key Features
- Intel® Processor N150 - 4 cores, 4 threads
- DDR5 4800MHz memory support up to 16GB
- Dual 10G SFP+ & Dual 2.5GbE LAN ports
- Dual 4K display support
- Compact all-aluminum alloy chassis
- Multiple expansion options
Technical Specifications
| Model | Nano-N1342 |
| Color | Metal ash (color can be customized) |
| Material | High quality all aluminum alloy |
| Processor | Intel Twin Lake N150, 4 cores 4 threads |
| BIOS | AMI EFI BIOS |
| Memory | 1 DDR5 4800MHz SODIMM slot, up to 16 GB |
| Storage | 1 × M.2 2280 slot, 1 × 2.5 inch HDD/SSD |
| Display Ports | 1 × HD, 1 × DP, Resolution up to 4096×2160 @ 60Hz |
| I/O Ports | 1 × power button, 1 × USB 3.1, 5 × USB 2.0, 1 × Nano-SIM card slot, 2 × 3-pin Phoenix terminal COM (2×RS232/485 modes, COM1 support console), 1 × DC, 2 × Intel 2.5G Ethernet ports, 2 × 10 GbE SFP+ ports |
| Expansion Slots | 1 × M.2 2280 M-key (SATA & PCIe 3.0 X1 NVME) 1 × M.2 2230 E-key (PCIe & USB / CNVIo2) 1 × M.2 3052 B-key (USB 3.0, 4G/5G) with external Nano-SIM slot Expandable interface: 4 GPIO channels (not included) |
| Network | 2 × Intel i226-V 100/1000/2500M Ethernet ports 2 × 10 GbE SFP+ ports (Intel 82599) |
| Power Management | Auto power on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255) |
| Power Supply | DC 12V input |
| Operating Temperature | 0℃ to +40℃ (commercial HDD), -20℃ to +50℃ (industrial SSD) |
| Operating Humidity | 5% to 95% non-condensable state |
| Dimensions | 135 × 135 × 48 mm |
| Weight | 0.8 kg |
Applications
Industrial control, industrial automation, robotics, Internet of Things, edge computing, machine vision, AGV/AMR, network gateway, server, digital signage, media playback, and OPNsense firewall appliance.

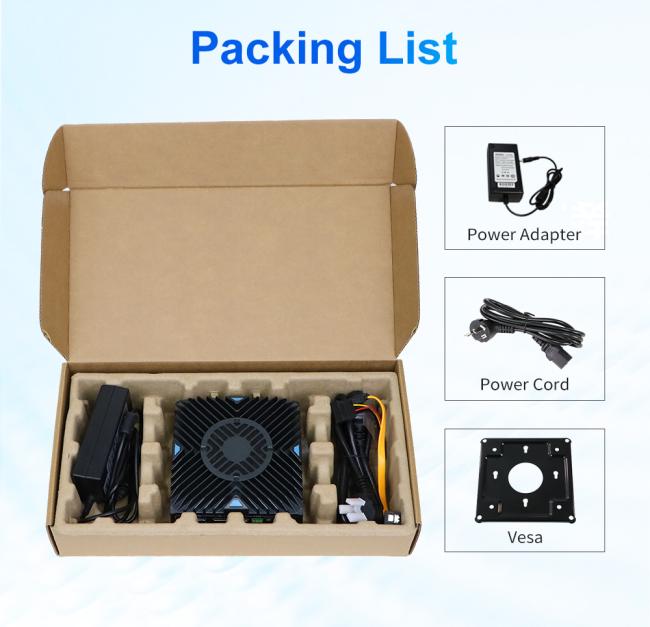

Product Images
Shipping & Delivery Information
- Delivery Time: 1-3 days for samples, 15 working days for large quantities
- Packaging: Each unit in neutral box packaging
- Shipping Methods: DHL, Fedex, UPS for small quantities; air or sea freight for large quantities
