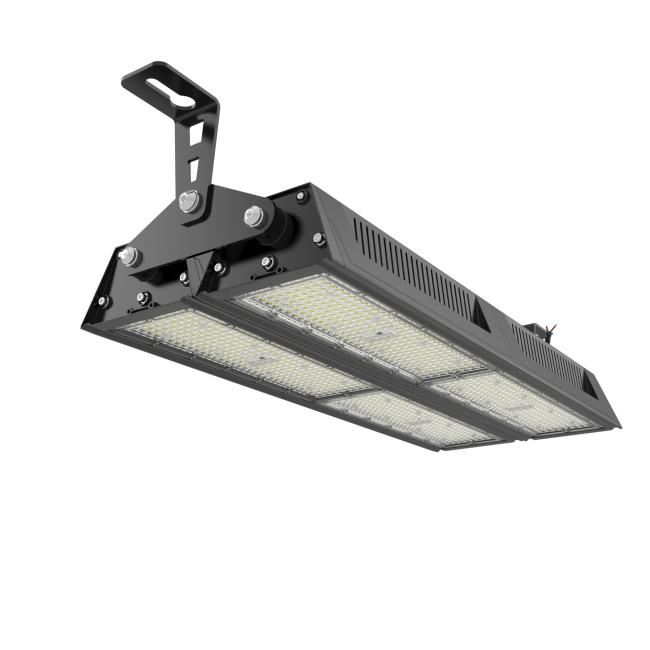

480W LED Linear High Bay Light 170lm/W Commercial And Industrial Lighting 30x70° 60x90° 40x110°

Product Description

The LED Linear High Bay is the best replacement for industrial or commercial applications. Its lumen output is much more better than metal halide high bay lights and high-pressure sodium lights, offering high performance, energy saving and long life. Light can be dimmed to ideal brightness levels and achieve the exact light level that needed for the applications. LED High Bays have a sleek, robust design that meets a variety of application needs, such as warehouses, factory, supermarkets, retail stores, gyms and garages and many other applications.

This linear high bay is available from 100W to 480W,high visual comfort,rectangular light type specially designed for warehouse aisles or storage rack, the efficacy is available for 150lm/w and 170lm/w, the professional light distribution makes maximum use of lumens,  Multiple mounting options for replacement and new installations.

ECO LED linear high bay data sheet.pdf

Features

●Die-casting Aluminium housing with Polycarbonate (with integrated lenses)

●House finish, Electrostatic polyester powder coating

●Offer ultra high efficiency up to 150lm/w or 170lm/w

●Options for beam angle, 30x70°,60x90° , 40x110°

●Safety, open circuit protection,short circuit protection and overvoltage protection

●Driver brand could be own brand, Lifud or MEANWELL

●Suitable for wet locations, IP65 rated, IK09

●Surge protection, 6KV-Line-Line 6KV-Line-Earth

●Installation height 4m to 12m

●Operation Condition temp:-40 ° to +50 °, Humidity:10%-90%RH

●Plug and Play PIR or microwave sensor and emergency kit

●Mounting options, pendant mounting and ceiling mounting

Specification
