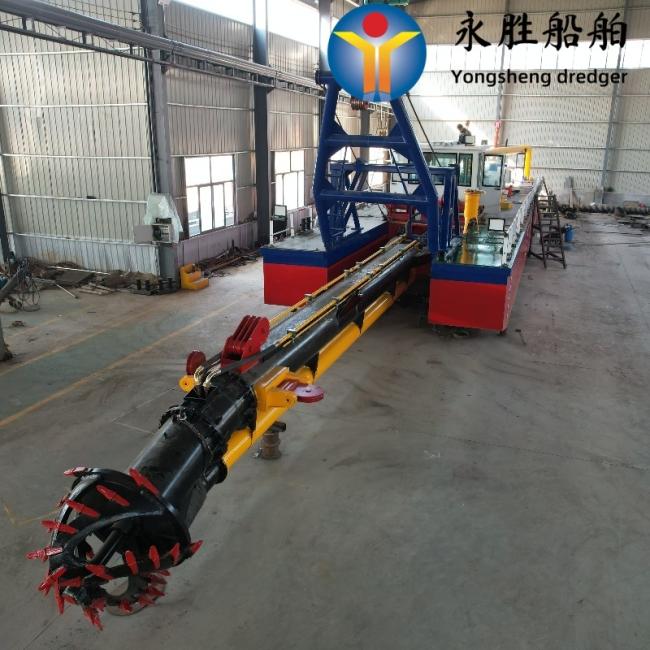

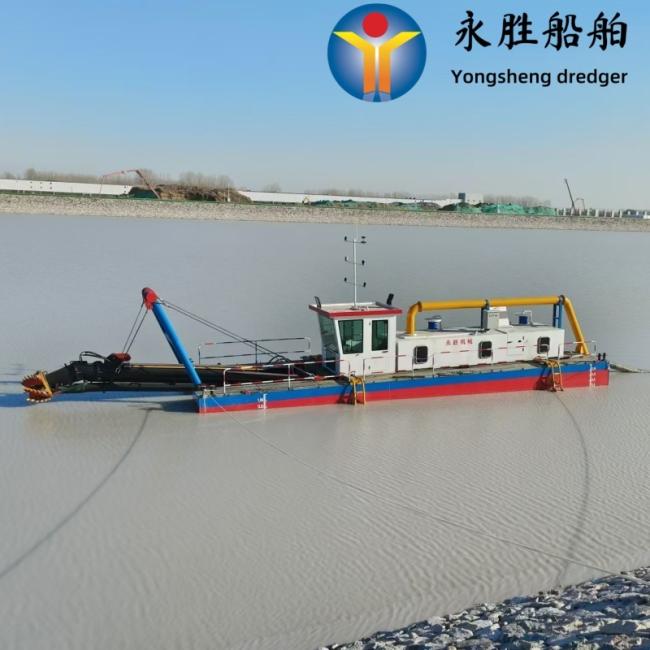

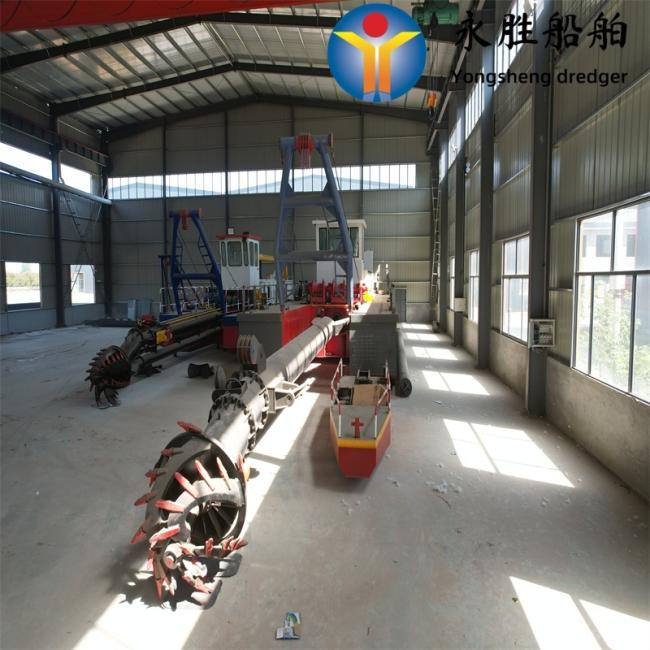

10 inch full hydraulic cutter suction sand dredger for sale
10 inch full hydraulic cutter suction sand dredger for sale
The cutter suction dredger we manufacture is mainly used in the river channel, river harbor, sea
harbor, pood, lake, reservoir and other water body,
depth,like 5m-25m. The dredger we make can discharge different distance, like 100m-3000m.
| Model list for hydraulic cutter suction dredger | |||||||
| Model | Inch |
Diameter pipe |
Water flow |
Solid capacity |
Total power |
Dredging depth |
Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
The key features include:
-Efficiency and high performance due to the pump, gearbox and fresh-water engine cooling system.
-Engine mounted in the major pontoon for protection and low noise levels.
-Durable heavy-duty marine engine.
-Safe and robust pump drive.
-Heavy duty robust design.
-Easy to operate for a single person
Our Service Gaurantee:
* Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.
