FBP1630 Glass Tube Fast Acting Fuse Disposable 250V 6.3A 3.6*10
Price:
0.02-0.5
MOQ:
3000
Delivery Time:
5-7days
Brand:
RFan
Product Description
FBP1630 250V 6.3A 3.6*10 Fast-Acting Glass Tube Fuse Disposable Fuse
FBP Series 3.6*10mm Fast-Acting Glass Tube Fuse
●Materials
| Rart Name | Material |
| Cap | Nickel Plated Brass |
| Body | Glass Tube |
| Fuse element | Alloy |
| Lead wire | Tin Plated Copper |
●Packaging
| Packing type | Description |
| Bulk | 500PCS per bag |
| Tape | 1,000PCS per box |

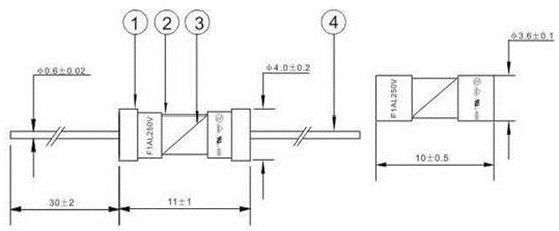

●Dimensions
●Electrical Characteristics
| %of Ampere Rating(In) | Blowing Time |
| 210%*In | (30 min Max) |
| 275%*In | (10 ms~3 s) |
| 400%*In | (3 ms-300 ms) |
| 1000%*In | (20 ms Max) |
●Fuse List
| Catalog Number | Ampere Aating | Voltage Rating | Max Voltage Drop(mv) | T Melting Integral(Ais |
| FBP0050A/B | 50mA | 250V/125V | 850 | 0.0003 |
| FBP0063A/B | 63mA | 250V/125V | 750 | 0.0007 |
| FBP0080A/B | 80mA | 250V/125V | 650 | 0.0009 |
| FBP0100A/B | 100mA | 250V/125V | 600 | 0.0022 |
| FBP0125A/B | 125mA | 250V/125V | 550 | 0.0064 |
| FBP0160A/B | 160mA | 250V/125V | 500 | 0.0090 |
| FBP0200A/B | 200mA | 250V/125V | 480 | 0.015 |
| FBP0250A/B | 250mA | 250V/125V | 440 | 0.02 |
| FBP0315A/B | 315mA | 250V/125V | 400 | 0.03 |
| FBP0400A/B | 400mA | 250V/125V | 370 | 0.05 |
| FBP0500A/B | 500mA | 250V/125V | 350 | 0.20 |
| FBP0630A/B | 630mA | 250V/125V | 320 | 0.3 |
| FBP0800A/B | 800mA | 250V/125V | 300 | 0.7 |
| FBP1100A/B | 1A | 250V/125V | 280 | 0.8 |
| FBP1125A/B | 1.25A | 250V/125V | 280 | 2.4 |
| FBP1160A/B | 1.6A | 250V/125V | 250 | 3.5 |
| FBP1200A/B | 2A | 250V/125V | 240 | 3.9 |
| FBP1250A/B | 2.5A | 250V/125V | 200 | 4.7 |
| FBP1315A/B | 3.15A | 250V/125V | 180 | 10.8 |
| FBP1400A/B | 4A | 250V/125V | 180 | 13.9 |
| FBP1500A/B | 5A | 250V/125V | 150 | 25.4 |
| FBP1630A/B | 6.3A | 250V/125V | 137 | 31 |
| FBP1800A/B | 8A | 250V/125V | 124 | 49 |
| FBP2100A/B | 10A | 250V/125V | 110 | 65 |
| FBP2160A/B | 16A | 250V/125V | 88 | 87 |
| FBP2200A/B | 20A | 250V/125V | 80 | 124 |
