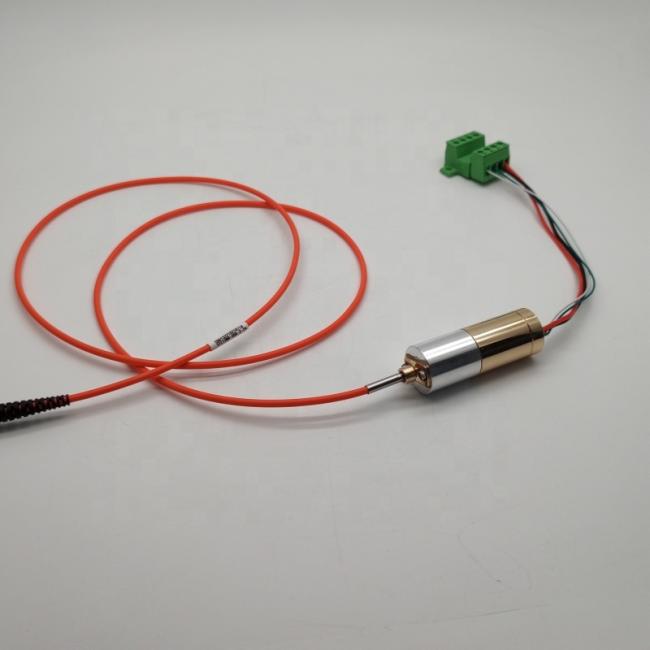

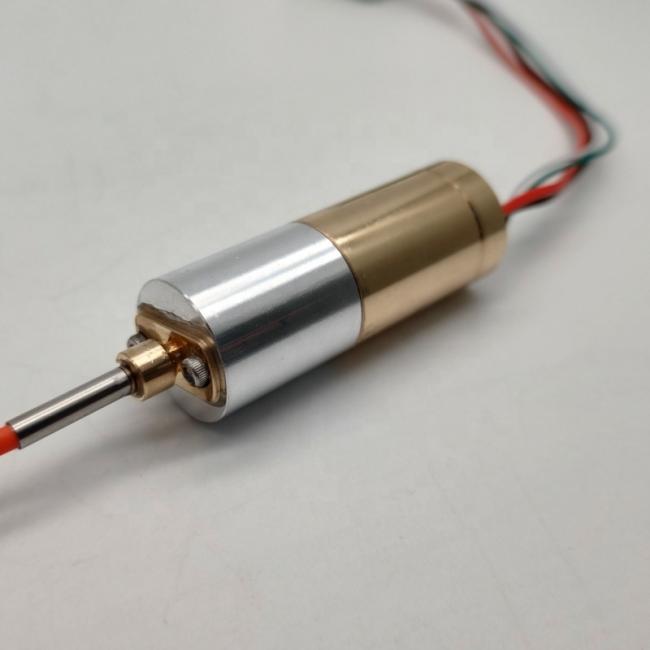

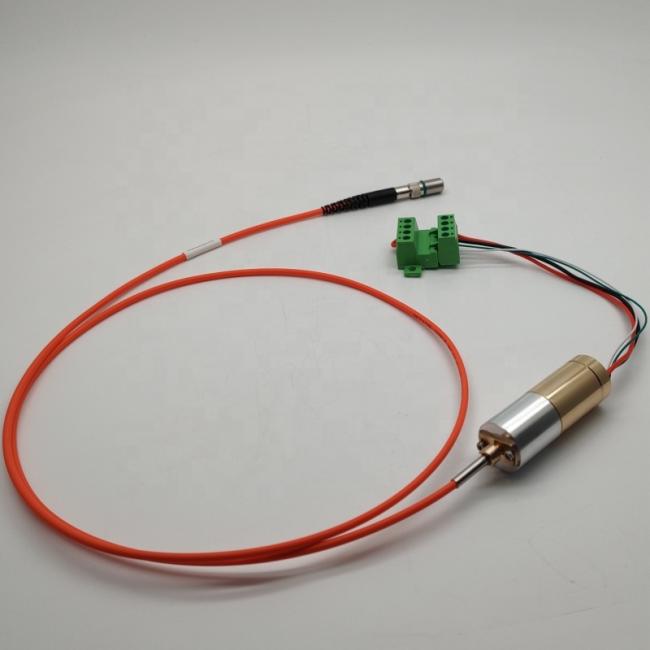

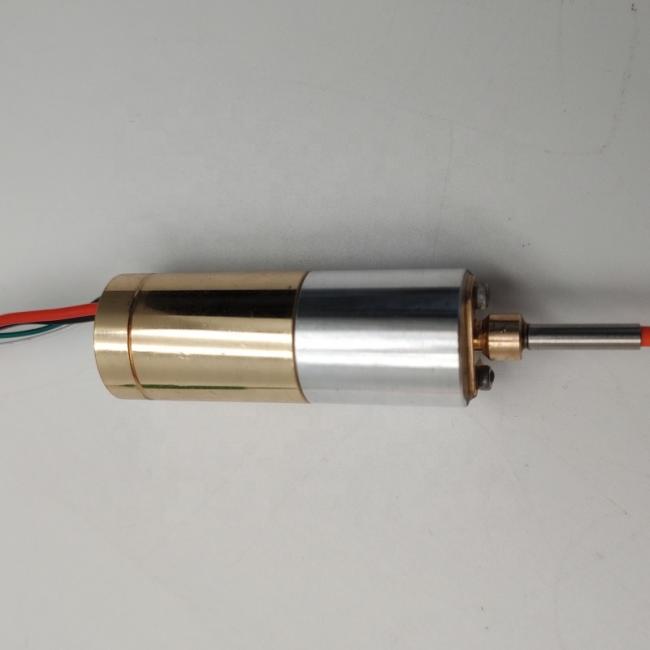

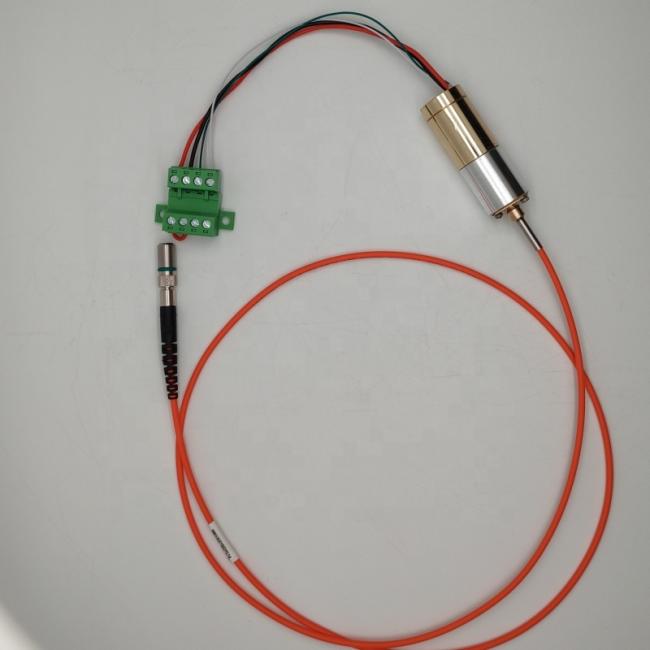

1.5W industrial DPSS high power laser with fiber output
Features：
· DPSS Laser
· 1500mW after fiber@545nm
20x55mm
Any others can be customized
· Fast Rise Time
· High Reliability
Please contact us for detailed datasheet.
Technology Fiber Coupled Laser Module 1000mW 1500mW for Medical and Biological Devices
Price:
$3,000.00/pieces >=1 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Lasence
Product Description
Products Description
Dimensions (Unit: mm) | ||||||||
Specifications
Laser Head Diameter: 20mm
Length (mm): ≤55
Weight (g): ≤200
Housing Material Brass with gold-plating
Wavelength (nm): 545nm±2nm
Output Power after fiber (mW) : ≥1500
Output Power after fiber (mW) : ≥1500
Power Stability at const. Temperature: +/- 2% OR +/- 5%
Output Power Mode:CW
Laser Class:4
Fiber Type: 200um with 3mm loose tube
Fiber Numerical Aperture: 0.22
Fiber Length (m): 1
Fiber Termination: SMA905(2) Power Type:ACC LD Voltage (DC, V) ：2.6V LD Operating Current (mA) at 2.6V：≤10,000 Wire Length
(mm)：200 (+/-50) Wire Type：20AWG / 28AWG Lifetime (hours)≥5,000 RoHS Compliance Declaration ：Yes
Fiber Type: 200um with 3mm loose tube
Fiber Numerical Aperture: 0.22
Fiber Length (m): 1
Fiber Termination: SMA905(2) Power Type:ACC LD Voltage (DC, V) ：2.6V LD Operating Current (mA) at 2.6V：≤10,000 Wire Length
(mm)：200 (+/-50) Wire Type：20AWG / 28AWG Lifetime (hours)≥5,000 RoHS Compliance Declaration ：Yes
Company Profile
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser modules, line laser modules and ring laser modules, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
