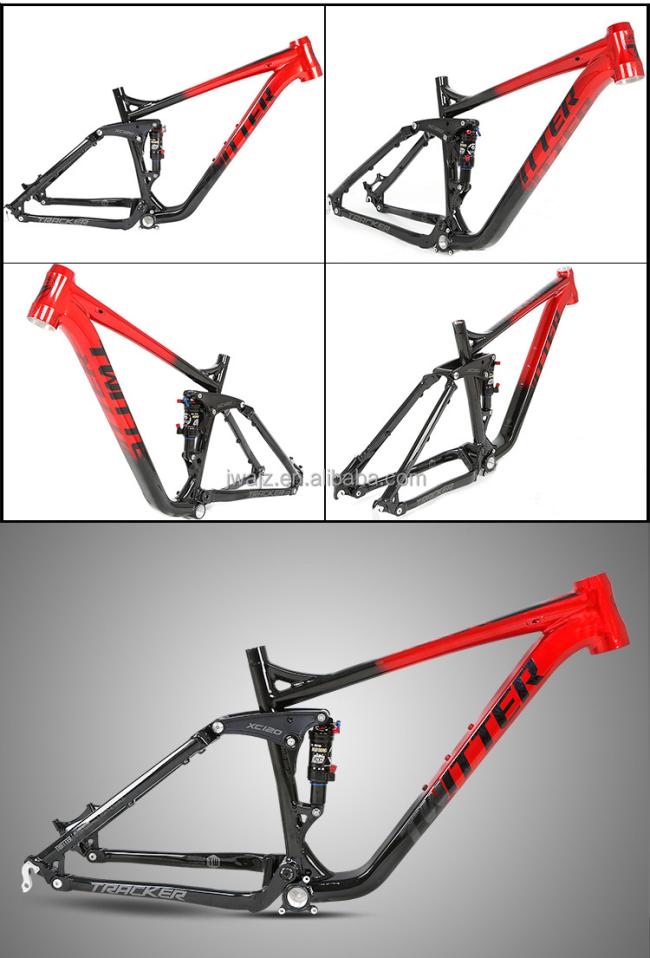

AL7005 Dual Suspension Mountain Bike Frame 120mm Travel for 17 19 Inch Downhill Bikes
Price:
$460.00/pieces 1-4 pieces
MOQ:
1
Delivery Time:
Negotiable
Brand:
JWA
Product Description
Hot Selling Top Quality Dual Suspension Alu Alloy MTB Frame 17 19 Inch Aluminum Downhill Mountain Bike Frame
Product Description
Product Name | Full suspension Mountain Bike Frame |
Wheel Size | 27.5+ (apply to 27.5" and 29" wheel) |

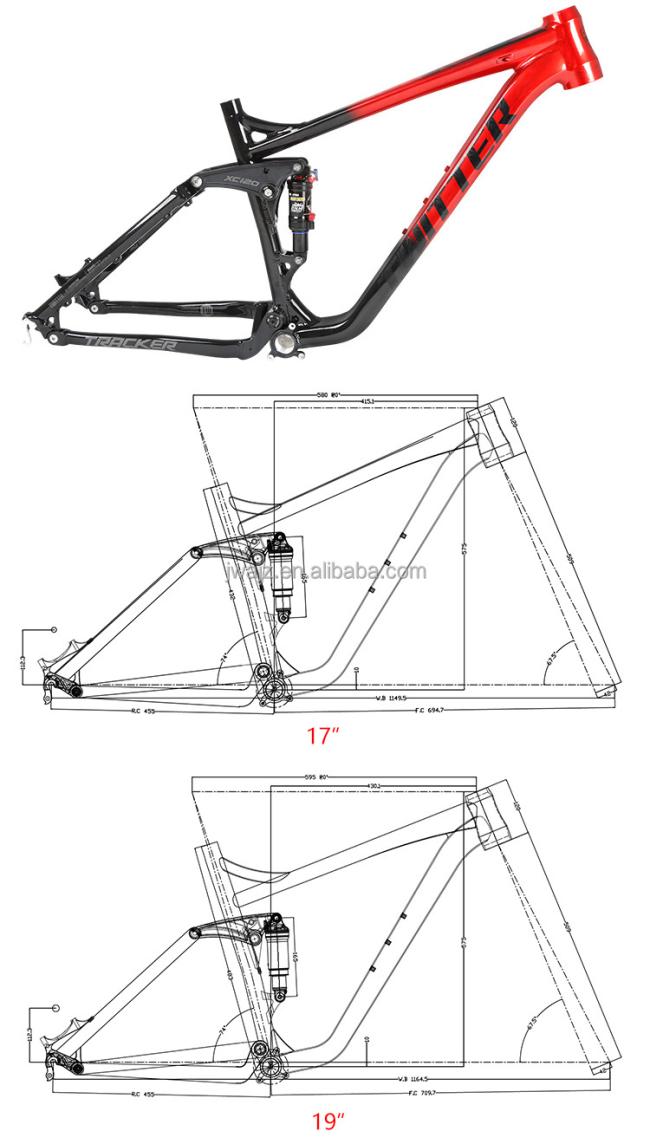

Frame size | 17"/ 19" |
Material | Alu alloy AL7005 |

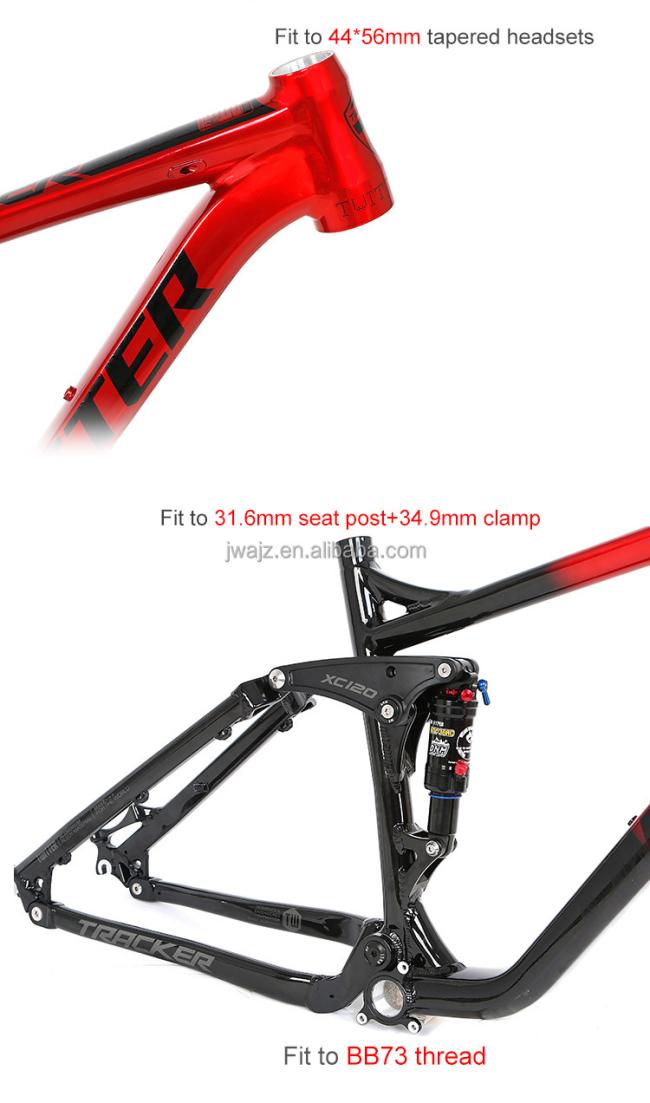

Seat post size | 31.6mm+Clamp 34.9mm |
Head tube size | 44*56mm Tapered |
BB width | BB73mm Threaded |
O.L.D: Quick release | 10*135mm |

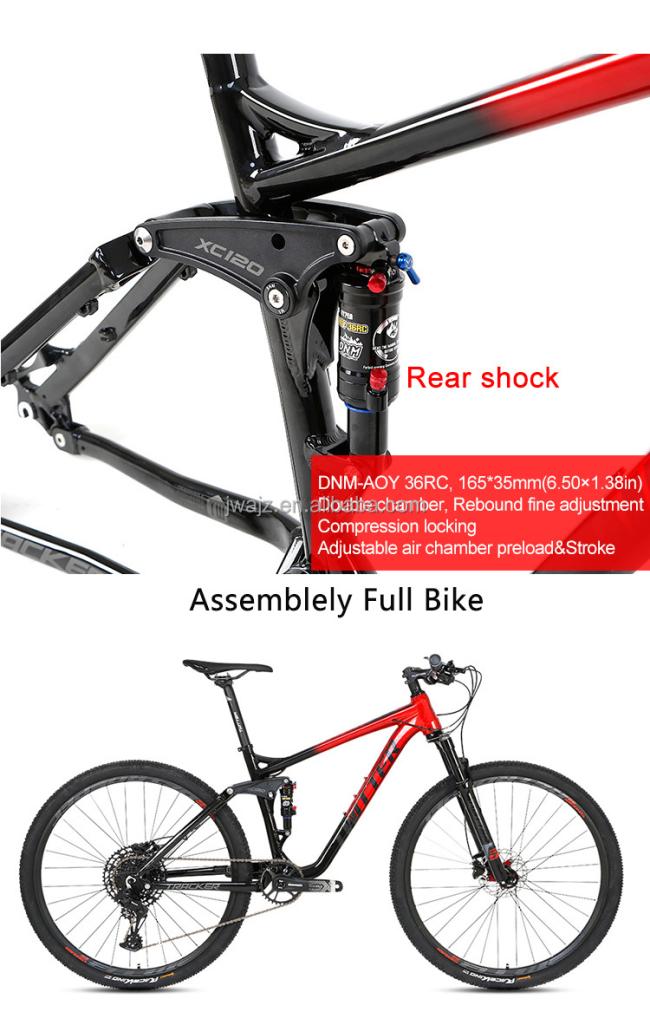

Rear shock | DNM-AOY 36RC, 165*35mm(6.50×1.38in) Double chamber, Rebound fine adjustment, Compression locking, Adjustable air chamber preload&Stroke |
Frame travel | 120mm |
Fork travel | 120mm |

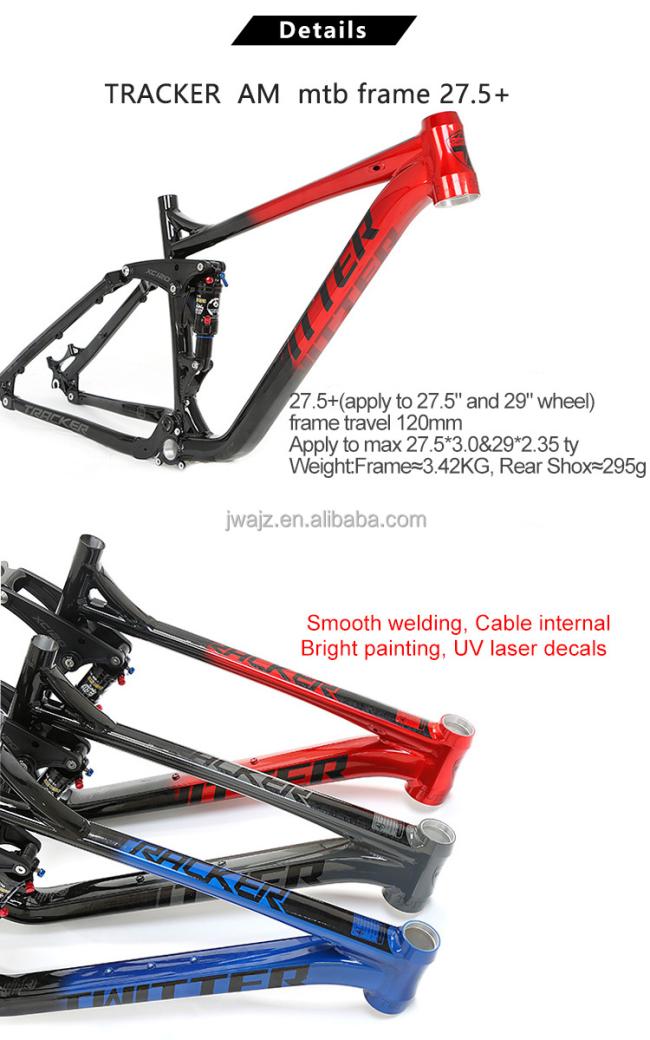

Apply to tyre max | 27.5*3.0" or 29*2.35" |
Brake | Disc Brake |
Cable Routing | Internal |
Front deraillure amount | Can not |
Compatible with Fork | Straight or Tapered |
Level | XC, AM |

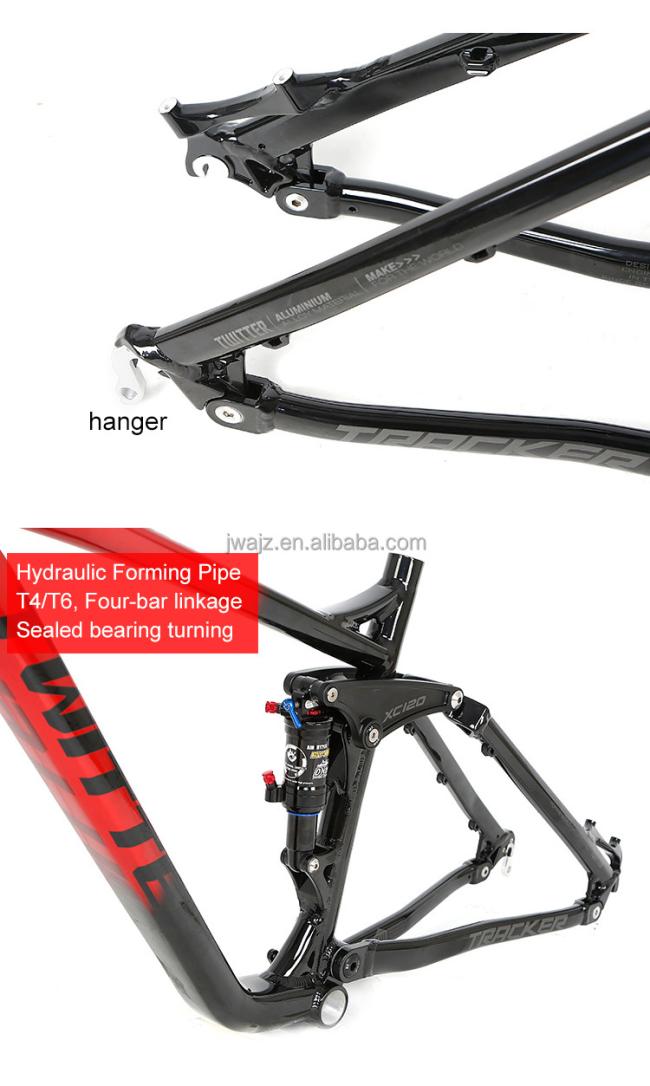

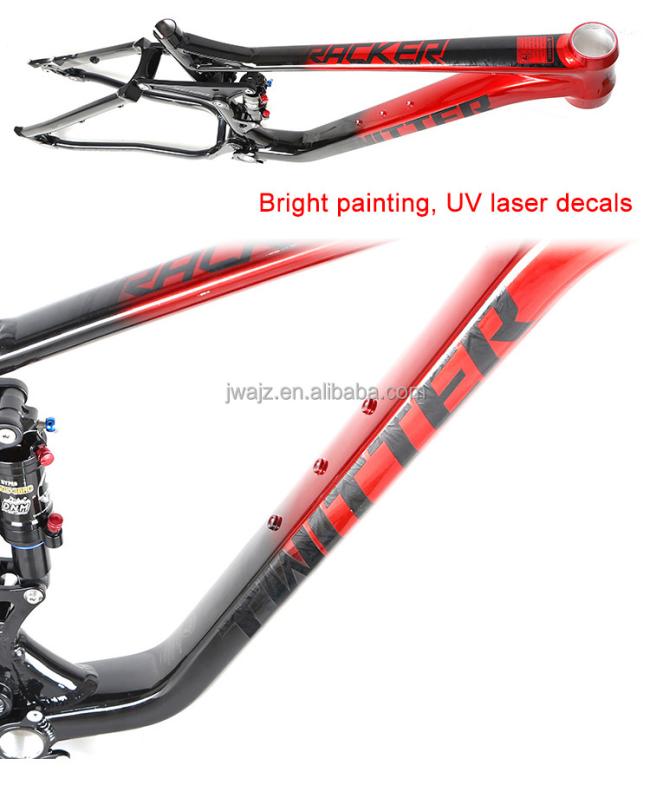

Process | Hydraulic Forming Pipe , T4/T6, Four-bar linkage, Sealed bearing turning, Smooth welding, Cable internal, Bright painting, UV laser decals |
Weight | Frame≈3.42KG, Rear Shox≈295g |
Recommended products
Products Details
Certifications
Customer Evaluation
Factory & Delivery
FAQ
Q1. What is your terms of payment?
A: T/T30% in advance, and 70% before delivery.
Q2. How about your delivery time?
A: If stocking, 3-7days, If order, 15-30 days after receiving your advance payment.
Q3. Are you factory or trading company?
A: We are both factory and trading company.
Q4. What is your sample policy?
A: Sample is available, but the customers have to pay the sample cost and shipping cost.
Q5. Do you test all your goods before delivery?
A: Yes, We have own test controler.
A: T/T30% in advance, and 70% before delivery.
Q2. How about your delivery time?
A: If stocking, 3-7days, If order, 15-30 days after receiving your advance payment.
Q3. Are you factory or trading company?
A: We are both factory and trading company.
Q4. What is your sample policy?
A: Sample is available, but the customers have to pay the sample cost and shipping cost.
Q5. Do you test all your goods before delivery?
A: Yes, We have own test controler.
