New 1NZ 2NZ Aluminum Cylinder Head Toyota BB Ist Vios 1.5L 16V Engines Model 11101-21031 11101-21030 11101-21033 11101-21034

New 1NZ 2NZ Aluminum Cylinder Head Toyo ta BB Ist Vios 1.5L 16V Engines Model 11101-21031 11101-21030 11101-21033 11101-21034

The 1.5-liter Toyota 1NZ-FE engine has been produced since 1999 at the company’s Japanese plant. The unit is placed on compact models and is equipped with a VVT-i phase regulator only at the intake. During the release, the motor received a number of updates and there are versions of 2003, 2005 and 2010.

The NZ family also includes engines: 1NZ‑FXE and 2NZ-FE.

This compact motor was developed by the Japanese branch of the company. By design, the unit strongly resembled its more voluminous counterpart with the 1ZZ-FE index: here there is an aluminum cylinder block with cast-iron liners and an open cooling jacket, an aluminum 16-valve head, a timing chain drive and a VVT-i type phase regulator at the inlet. The first version did not have hydraulic lifters and the valves periodically required adjustment.

In 2003, a slightly updated version of this motor or the so-called type 03 appeared. The unit was distinguished by the presence of hydraulic lifters, an EGR valve and a hotter thermostat. Already in 2005, the Type 05 engine with the ETCS-i electronic throttle unit was introduced. In 2010, the type 10 unit debuted and was distinguished by adaptation to more stringent eco-standards. All modifications of this engine were produced in parallel, which introduces some confusion.

2NZ engine – 4-stroke 4-cylinder gasoline with electronic fuel injection and ignition control system, in-line cylinders and pistons rotating one common crankshaft, with two overhead camshafts (usually with a variable valve timing system VVT-i). The engine has a closed-type forced circulation liquid cooling system. Combined lubrication system: pressure and spray.

Product Features:

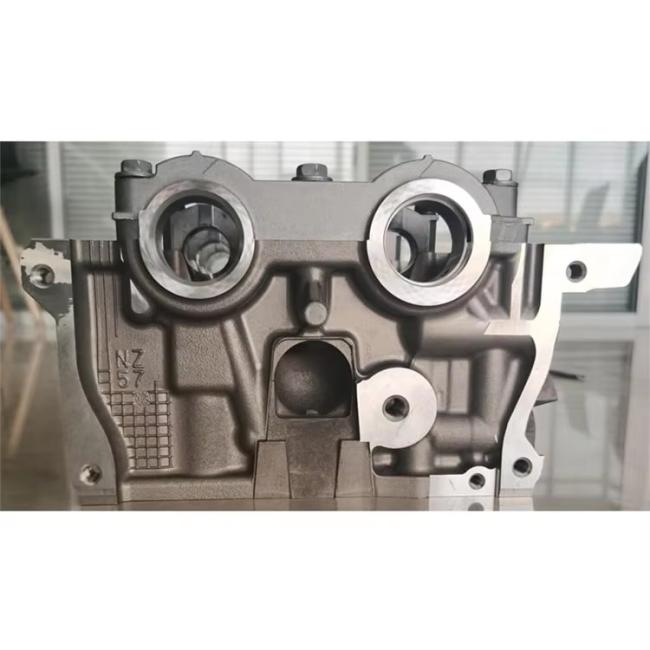

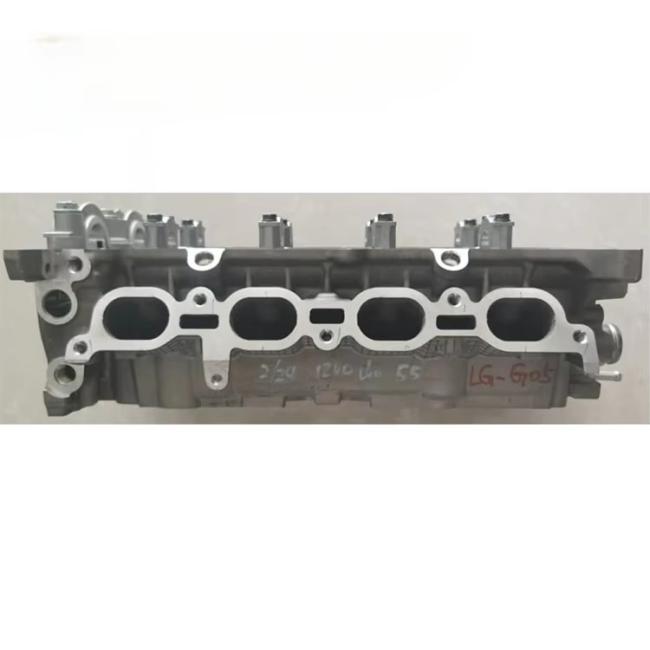

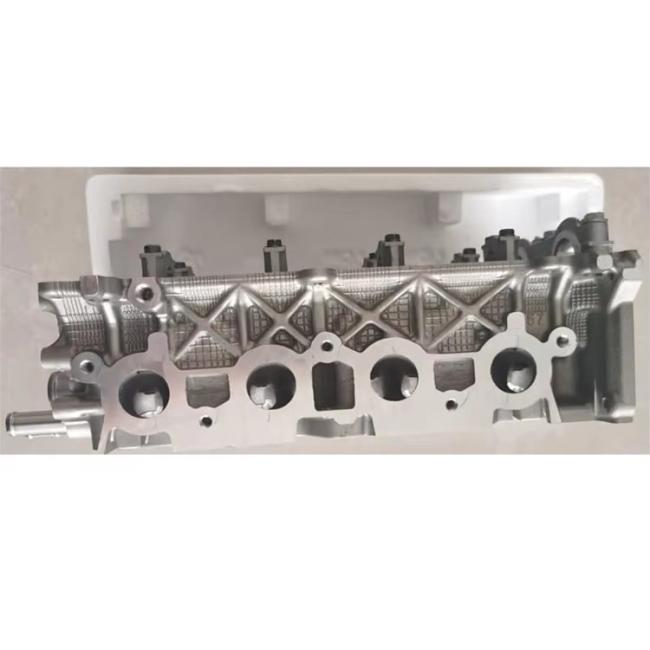

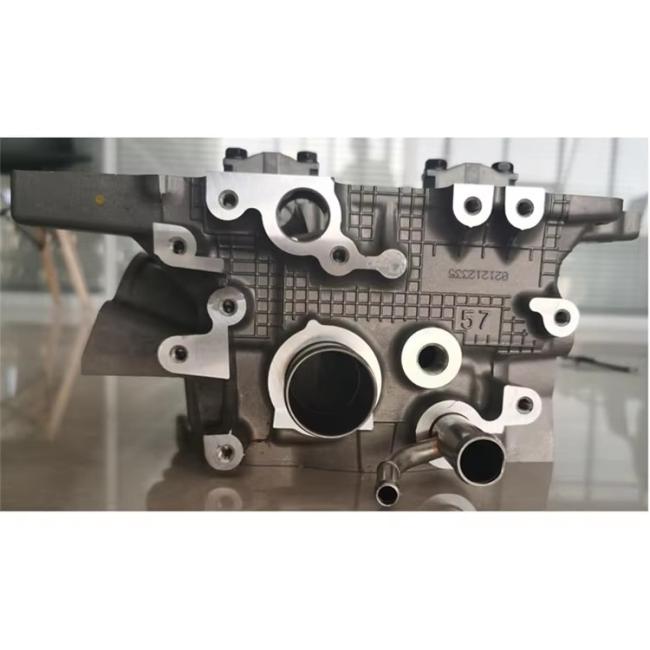

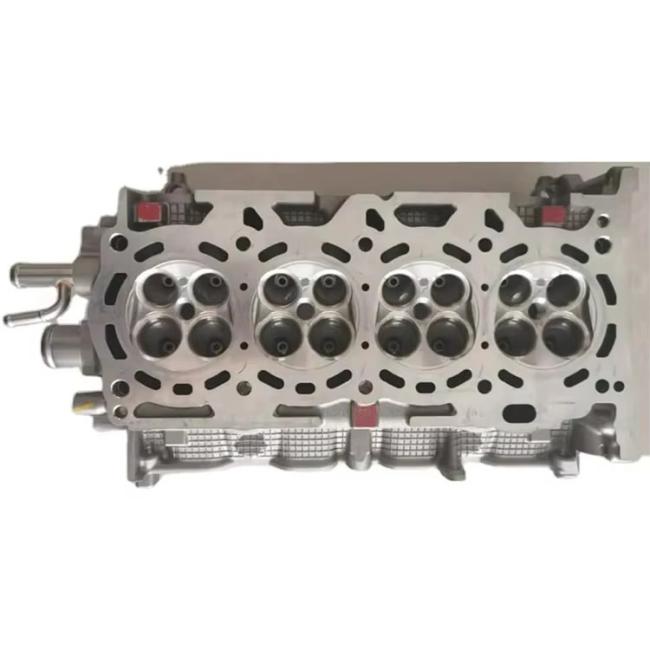

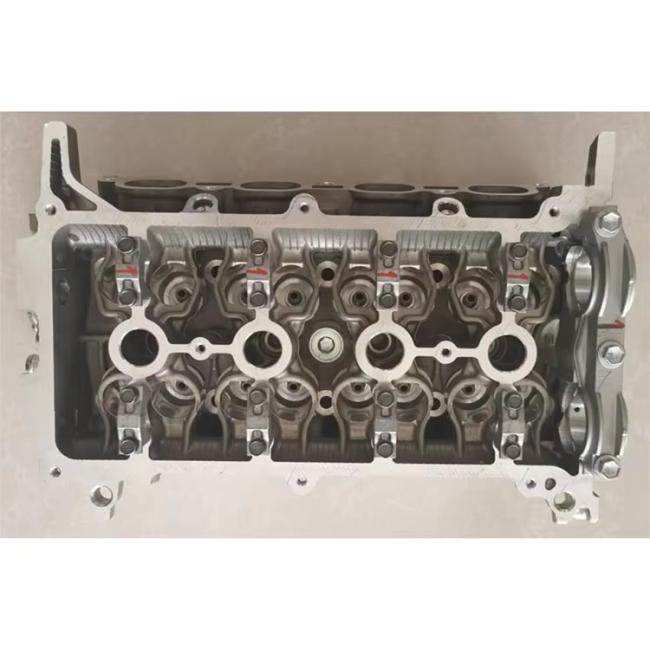

Detailed Photos:

Application:

1NZ engine is installed on/

• Toyota Allion 1 (T240), Allion 2 (T260), Auris 1 (E150), Auris 2 (E180), Corolla 9 (E120), Corolla E140, Corolla E160, Fun Cargo XP20, Porte 1 (NP10), Porte 2 (NP140), Probox 1 (XP50), Raum 2 (XZ20), Ractis 1 (XP100), Ractis 2 (XP120), Sienta 1 (XP80), Sienta 2 (XP170), Vios 1 (XP40), Vios 2 (XP90), Vios 3 (XP150), Yaris XP10, Yaris 2 (XP90), Yaris 3 (XP130);
• Scion xA XP60, xB XP30, xB E150;
• Geely CK, MK 1 (SC5);
• Great Wall Voleex C10.

2NZ engine is installed on/

• Toyota bB NCP3 in 2000 – 2005;
• Toyota Echo XP10 in 1999 – 2005;
• Toyota Ist XP60 in 2002 – 2007;
• Toyota Porte AP10 in 2004 – 2012; Porte XP140 since 2012;
• Toyota Yaris XP10 in 1999 – 2005; Yaris XP90 in 2005 – 2011; Yaris XP130 since 2011.

Packing:

Transportation:

FAQ:

Q1: Can you produce per the samples?
A: Yes, we can produce as per your samples or technical drawings. We have very professional technical team , We can build the molds and fixtures.
Q2: What is your terms of payment?
A: For stock items , we recommend full payment for fast shipping. If the items need to be produced , T/T 30% as deposit, and rest before delivery.

We'll show you the photos of the products and packages for checking before you pay the balance.
Q3: What is your package?
A: Depends on items , for light heavy goods, We usually pack our goods in neutral brown cartons , if heavy goods or big quantity ,we pack it by pallet or wooden box. Also we can customized package for your band as per your requirements.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5: What is your delivery time?

A: In general, if we have stock ,the goods can be delivered 1-3 days after your payment. If no stock, the specific delivery time will be depended on your order quantity.
Q6: Can you accept sample order?
A: Yes sure. We can supply the sample if we have the parts in stock.
Q7: Do you test all your items before delivery?
A: Yes, we have 100% test before delivery,we have strictly quality control policy.
Q8: Which shipment you can supply?
A: By sea, by air ,by train or by express (DHL, FEDEX ,TNT,UPS,EMS etc.)
