Solar PV Disconnector Switch DC1200V 4P 32A DIN Rail Mounted for Photovoltaic System
Our FMPV32-NL1 Series DC changeover switch have been specifically designed to switch Direct Current (DC) at voltages up to 1000v. Their robust design and ability to switch such voltages at reated current , mean that they are ideally suited to to be used in the switching of Photovoltaic (PV) systems . All photovoltaic installations must have a DC switch to disconnect the DC/AC inverter from the photovoltaic panels in accordance with IEC .
1.IP20 Protection Level
2.Din rail mounted
3.Switch body for 4P CB4N or CB8N
4.2 Pole,4 Poles are viable(Single l Double String)
5.Standard: IEC60947-3,AS60947.3
6.DC-PV2,DC-PV1,DC-21B
7.16A, 25A, 32A,1200V DC
| Electrical Characteristics | |
| Type | FMPV16-NL1, FMPV25-NL1, FMPV32-NL1 |
| Function | Isolator, control |
| Standard | IEC60947-3, AS60947.3 |
| Utilization category | DC-PV2 / DC-PV1 / DC-21B |
| Pole | 4P |
| Rated frequency | DC |
| Rated operational voltage(Ue) | 300V, 600V, 800V, 1000V, 1200V |
| Rated operational current(Ie) | See the next page |
| Rated insulation voltage(Ui) | 1200V |
| Conventional free air thermal current(Ith) | / |
| Conventional enclosed thermal current(Ithe) | Same as Ie |
| Rated short-time withstand current(Icw) | 1kA, 1s |
| Rated impulsed withstand voltage(Uimp) | 8.0kV |
| Overvoltage category | II |
| Suitability for isolation | Yes |
| Polarity | No polarity, "+" and "-" polarities could be interchanged. |
| Service Life / Cycle Operation | |
| Mechanical | 18000 |
| Electrical | 2000 |
| Installation Environment | |
| Ingress protection, enclosure | IP20 |
| Storage temperature | -40ºC ~ +85ºC |
| Mounting Type | Vertically or horizontally |
| Pollution degree | 3 |
| Suitable environment | Outdoor / Indoor |

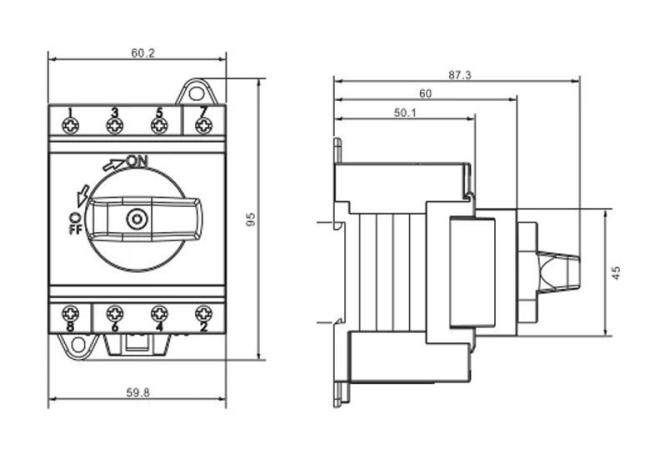

Dimension
