Rain Resistant 8ka 2 Pole Dc Isolator Switch Real Time Detection
Price:
Negotiable
MOQ:
1
Delivery Time:
Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Brand:
Golden Electric /OEM
Product Description

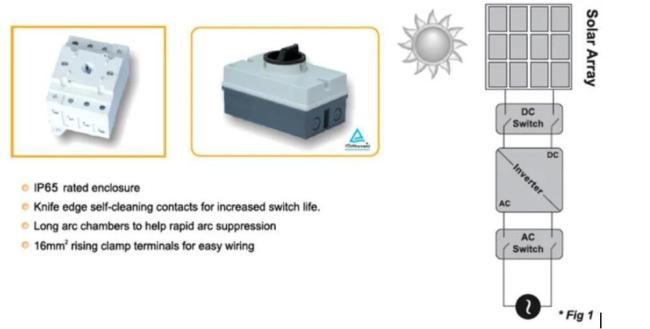

The GN4 Series DC Isolator switch have been specifically designed to switch Direct Current(DC) at voltages up to 1000Volts.Their robust design and ability to switch such voltages,at rated current,mean that they are ideally suited to be used in the switching of Photovoltaic(PV)systems.All Photo voltaic installations must have a DC Switch to disconnect the DC/AC inverter from the photovoltaic panels in accordance with IEC 60364-7-712 Illustrated Fig1.
![Solar Power 4p PV Switch DC Isolator]()
Technical Date(IEC60947-3 Rated oepration DC21B)
![Solar Power 4p PV Switch DC Isolator]()
![Solar Power 4p PV Switch DC Isolator]()
![Solar Power 4p PV Switch DC Isolator]()
![Solar Power 4p PV Switch DC Isolator]()
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.
Any more query please contact with us, thank you!
Technical Date(IEC60947-3 Rated oepration DC21B)
| Model Number | GN4-003 | Standard | IEC60947-3 |
| No.of Poles | 2&4 poles | Rated Current | 16A 25A 32A |
| IP Rating | IP65 | Mechanical life | 10 |
| Max Rated Operating Voltage | DC1000V | Rated Short-time withstand current | 8KA |
| Maximum cable cross sections solid or stranded | 4-16MM2 | Enclosure knockouts size | M20/25 |
| Maximum ambient temperature operation open | -5~+65 | Maximum ambient temperature | -5~+45 |

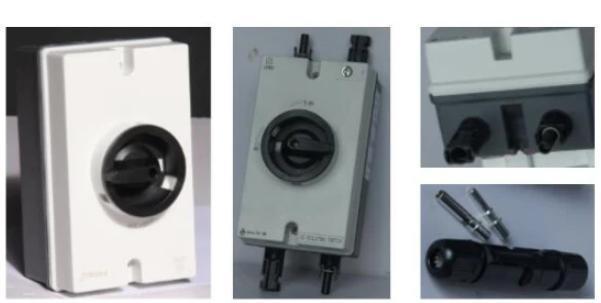

Knock out type
*IP65 rated plastic enclosure
*16A,25A,32A,1000VDC
*4*M20 knock outs
*MC4 plugs and wiring can be selected
*IP65 rated plastic enclosure
*16A,25A,32A,1000VDC
*4*M20 knock outs
*MC4 plugs and wiring can be selected
Screw type
*IP65 rated plastic enclosure
*16A,25A,32A,1000VDC

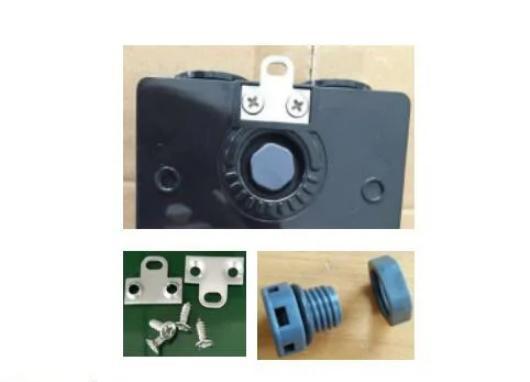

*2*SS mounting tabs
*4*M25 threaded holes
*Air valve helps air flowing and reducing temperature
*IP65 rated plastic enclosure
*16A,25A,32A,1000VDC
*2*SS mounting tabs
*4*M25 threaded holes
*Air valve helps air flowing and reducing temperature
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.
Any more query please contact with us, thank you!
