Waterproof IP67 Mc4 Cable Connector with DC/DC Interface Type Copper Terminal Material
MC-4 Solar Panel Cable Connectors with Assembly Tool,10 Pairs Copper Solar Wire Adapter Male/Female Waterproof Connector for Connecting Solar Panels 1000V 30A
1.Load Capability with big current and high voltage
2.Lower contact resistance
3.Desugn of waterproof and dustproof
4.Excellent performances of high-low temperature,fireproof ,anti-ultraviolet
| Type | PV-004-2T1 |
| Rated Voltage | 1000V DC/1500V DC |
| Contact resistance | <1mΩ |
| Rated current: | 30A/50A |
| Temperature range | -40ºC ~ +85ºC |
| Contact material | Copper,tin plated |
| Insulation Voltage | 6000V |
| Fire-proof level | UL94-V0 |
Insulating material, strong heat resistance, low flammable point. Wear-resistant, durable and corrosion-resistant; the contact hole head of the product is provided with guide insulation to prevent static electricity
The product adopts high-quality waterproof ring, and the waterproof and dustproof grade reaches IP67

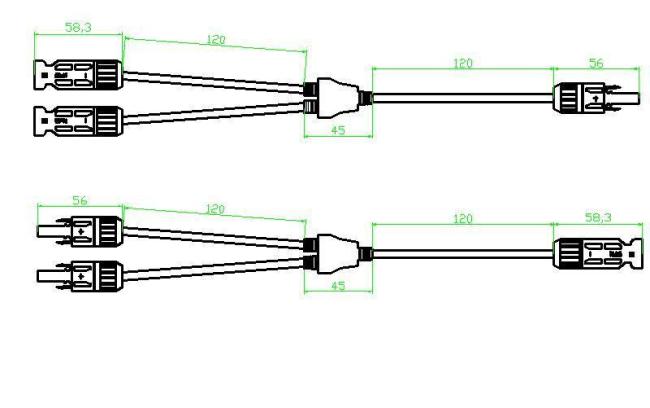

Solar photovoltaic connector PV004-2T1 (compatible with MC4 connector) is a connector when solar photovoltaic panels are connected in series to form an array module. It has the characteristics of fast and reliable connection, dustproof and waterproof, and easy to use. The shell has anti-aging, anti-ultraviolet, etc. ability
The Delivery time and shipping of MC4 solar cable connectorDeilivery time:
1-7 days after confirming order
Shipping:
1. Shipment port:GUANGZHOU
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders
