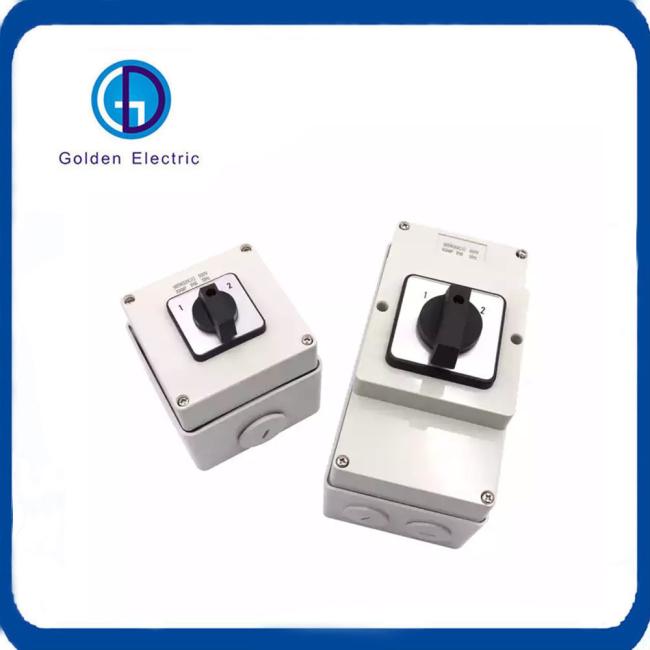

500V 3 Phase Square Changeover Switch IP66 Australia Standard 20A 32A 40A 63A Waterproof Industrial
56 SW series switches are available from 250V 10A to 500V 63A
Incorporated positive, rotary action, on/off action and clear marked impact-resistant construction
Suitable for harsh condition raised on-off lettering for clear and permanent marking
Application
Designed to give full motor control, a unit is rated IP66, KRIPALS changedover and reversing switches are housed withing single modules as part of the overall modular concept of the range. Earth and neytral
Connectors accommodating 3*6mm cables are provided with all models. KRIPAL 7 seriesscam type switch mechanisms are used and therefore special configurations are available. Contact your KRIPAL representartive for more information.
| Name | Industrial Electrical Waterproof change over switch |
| Product Model | 56SW320C/O 56SW332C/O 56SW340C/O 56SW363C/O |
| Phase | 3P |
| Rated Voltage | 250V/500V |
| Rated Current | 10A 20A 32A 40A 50A 63A |
| Certificate | CE,ROHS |
| IP Protection | IP66 |
| Service | Drilling,Installation,Painting, Design,OEM/ODM Service |
| Catalogue Number | 56SW320C/O | 56SW332C/O | 56SW340C/O | 56SW363C/O |
| Rated Operational Voltage Ue(-50HZ) Volts | 500 | 500 | 500 | 500 |
| Rated Insulation Voltage Ue(-50HZ) Volts | 660 | 660 | 660 | 660 |
| Rated Thermal Current Enclosed Amps | 20 | 32 | 40 | 63 |
| Cable Cross Section Solid Min | 1 | 1 | 6 | 6 |
| 6 | 6 | 10 | 10 | |
| Utilisation Categories Switching of Resistive Loads Ineluding Amps | 20 | 32 | 40 | 63 |
| Switching of Motor Loads or Other KW | 7.5 | 11 | 15 | 22 |
| Switching of Squirre Cage Motors Amps | 5.5 | 5.5 | 11 | 18.5 |
| Rated Short Time Withatand Current Isecond | 1.5 | 1.5 | 1.5 | 1.5 |
| Rated Short Crcuit Making Capacity | 22 | 22 | 50 | 50 |
| Product Name | Model | Specification | PCS/CTN | G.W.(kg) | Package size(cm) |
| Square waterproof Changeover switch | 56SW320C/O | 3Pole 20A | 20 | 12 | 52*23*31 |
| 56SW332C/O | 3Pole 32A | 20 | 13 | 52*23*31 | |
| 56SW363C/O | 3Pole 63A | 15 | 17 | 56*23*47 |
