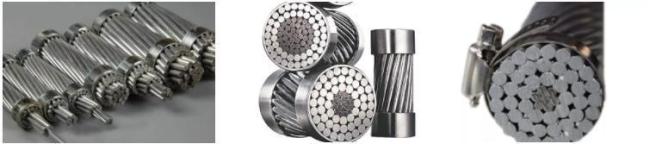

High Conductivity Stranded Aluminium Wire Power Cables for Electrical Installations
Specifications
| Conductor Technical Structure | Unit | Value | ||

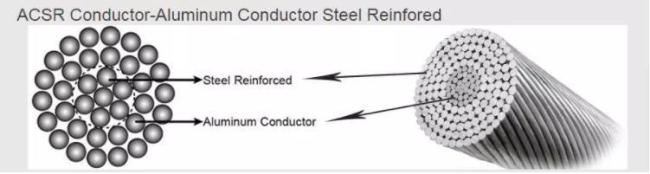

| Structure | Center: steel wire | Nos./mm | 1/2.0 | |
| Layer 1:steel wire | 6/2.0 | |||
| Layer 2: Aluminum wire | 10/2.57 | |||
| Layer 3: Aluminum wire | 16/2.57 | |||
| Standard | / | GB/T1179/IEC 61089/ASTM B232 / B232M-2009 / B498 | ||
| Stranding direction of outer layer | Direction | Right-hand | ||
| Conductor diameter | mm | 16.28±1% | ||
| Cross section | mm2 | 156.8±1% | ||
| Conductor weight | kg/km | 547.8±1% | ||
| Rated tensile strength | kN | 52 | ||
| Modulus of Elasticity | GPa | 73.9 | ||
| Coefficient of linear expansion | 10-6/ºC | 18.9 | ||
| Max. DC Resistance at 20ºC | Ohm/ft | 0.637 | ||
| Lay ratio | Aluminum layer | times | 16-wire layer 10-14 10-wire layer 10-16 | |
| Steel layer | 6-wire layer 18-30 | |||
| Properties of Aluminum Wire (Before Stranding) | Unit | Value |
| Diameter and tolerance | mm | 2.57±0.03 |
| Min. tensile strength | MPa | 175 |
| Min. elongation at 250mm | % | 1.7 |
| Max. resistivity at 20ºC | Ω·mm2/m | 0.028172 |
| Properties of Steel wire (Before stranding) | Unit | Value |
| Diameter and tolerance | mm | 2.0±0.02 |
| Min. tensile strength | MPa | 1410 |
| Min. tension at 1% elongation | MPa | 1280 |
| Min elongation at 250 mm | % | 3.5 |
| Class of zinc coating | / | Class A |
| Zinc coating quality | g /mm² | 230 |
| Conductor diameter | MM | 6.0 |
| Rated tensile strength | KN | / |

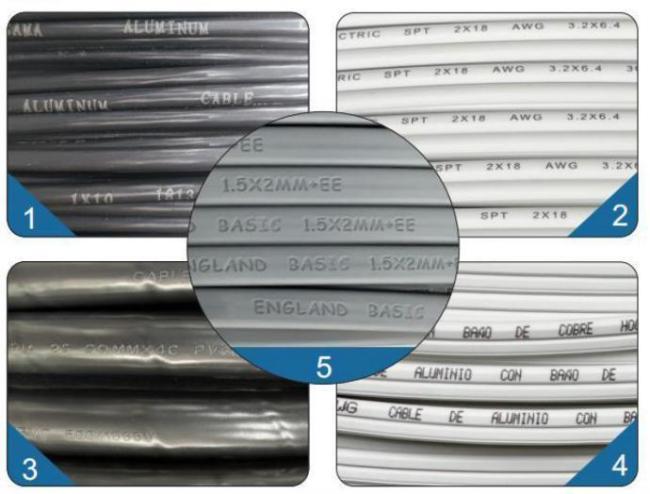

PRINTING WAYS
Application

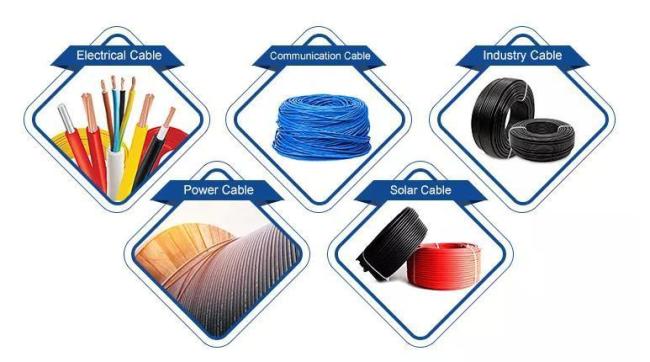

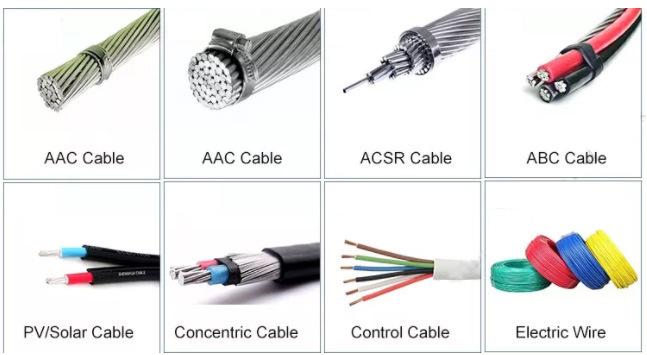

MAIN PRODUCTS
Packaging & Shipping
requirements. Drum size: As per cable length and container size *In order to quote you accurate price, kindly tell us your needed
cable length quantity. Larger quantity, more discount benefit ready for you! Shipping Port:Tianjin, Qingdao, or other ports as per
your requireents. Sea freight:FOB/C&F/CIF quotation are all available. *For some countries such as Africa countries, middle east
countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and competitive price to all customers.
