Intelligent Digital Panel Meter for Single Phase/Three Phase Current and Voltage Measurement
Intelligent digital display meter is suitable for power network,automatic control system to measure voltage,currentactive powerreactive power apparent power,power factor,frequency and etc parametersdirectlydisplavedvia LEDorLCD Advantagesdirect displayhigh accuracystable high isolation.anti-shock and etcitcanprovide different extension functionsincludingRS-485 port switching value inputswitchingvalue outputanalog conversion output and etcwith different sizes.It can replace pointer meters completely.

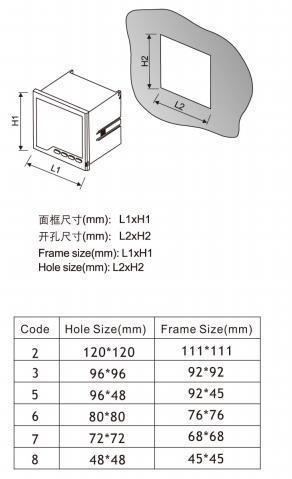

Outline dimensions:
Features:
*Forward and reverse active /reactive energy meas urement
*Division of electric energymeteringtime-sharing power timing meter reading
*Measurement of three-phase voltagethree-phase current total harmonic distortion(THD)2-31odd harmonic component
*To provide a nixie tube or liquid crystal display, local data query
*Menu button intuitivesimpleoperation.Currentvotlage gain Programmable
*Provide multiple circuit leakage current monitoring Provide mulitple loop control nodescan be used for the alarm, trip control
*Support for fire controlremote cut off the fault circuit SupportforRS-485communicationModbus-RTU protocol
*Support for switching inputoutputanalog quantity transmitting output
*Convenient installationwiringis simplesmall eng ineering quantity
*Awide range ofAC/DCpowersupply:AC/DC80V-270V

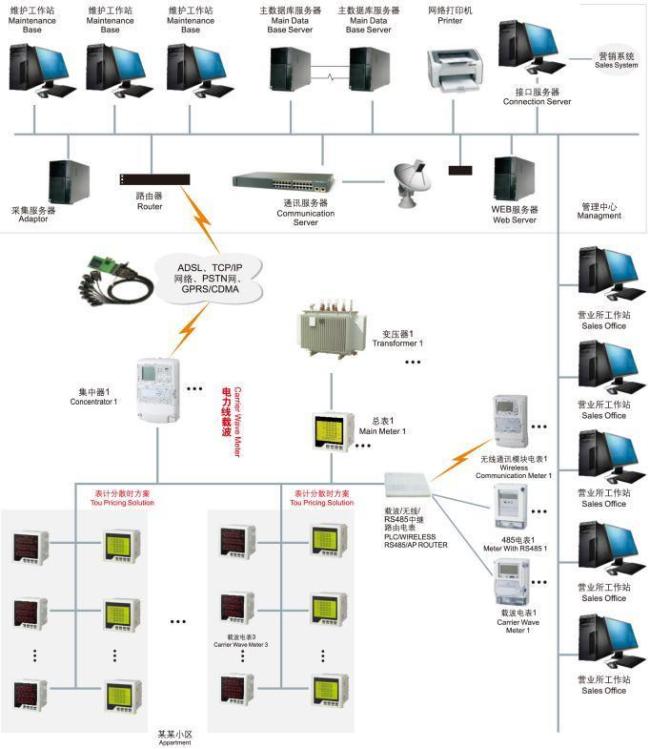

*To be completed by SCADAPLC in a variety of communications software networking

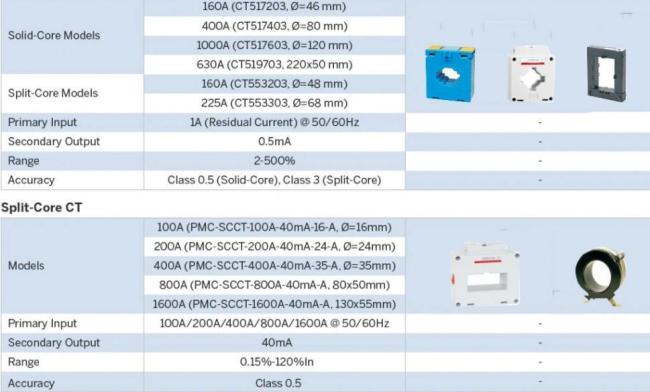

Residual Current CT
Packaging Details:
Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.
Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery Detail:
Shipped in 7 days after payment
1.When can I receive your quotation and detail information after send the enquiry?
All your enquiry will be replied within 8 hours.
2.Can I get samples before place an order ?
Of course! We also believe that sample order is the best way to prove the quality.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!
3.Can you print our own logo?
Yes,Our company are available for OEM.
4.How long is the quality guarantee?
2-5 years warranty,our products are 100% inspection.
5.How long is the delivery time?
It usually takes about 3-5 working days for sample order,and 10-20 days for official order.
