3 Pin 5mm Pitch PCB Screw Mount Type Terminal Block Connector with SATA/ATA Interface
Terminal blocks are classified based on characteristics such structure,device type, and termination options. We can provide pluggable terminal block, PCB Screw terminal block, Barrier Terminal Block and so on.
PCB Screw terminal blocks work by inserting bare wires into the module where a clamp secures the wire in the housing. The housing is then soldered to a PCB in common footprints. PCB mount terminal blocks can be single, dual, or multi-level modules.

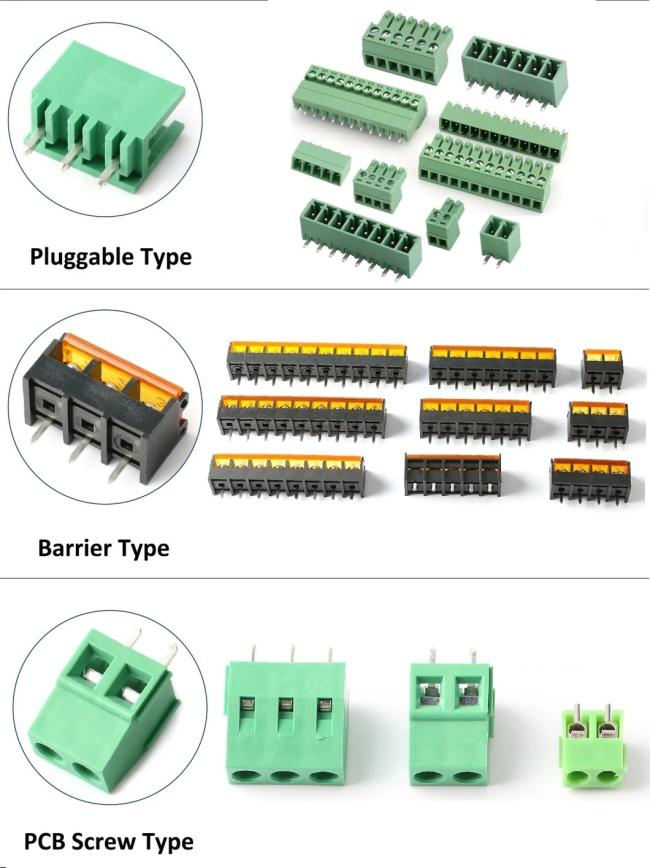

Terminal blocks come available in three common orientations: horizontal, vertical, and 45°. Horizontal and vertical are also known as 90° and 180°, respectively. The wire orientation can often be determined by physical restrictions in the overall design that make one option more feasible than the other.
Terminal block is a set of two or more similar screw-down connection points. You can connect wires at these points. A terminal strip combines many similar blocks in a single device. In a strip, the blocks are insulated from one another.
Terminal block must first be mounted in a safe, stable location away from moisture.You then insert the bare wires into the block's metal connectors and screw them down until they're securely fastened.
| Rated Voltage | 300V |
| Rated Current | 15A |
| Contact resistance | 20mΩ |
| Insulation resistance | 5000MΩ/1000V |
| Withstanding Voltage | AC1500V/1Min |
| Wire range | 22~14A WG/2.5mm² |
| Pitch | 5.0mm |
| Poles | 3P |
| Screws | M2.5 steel Zinc plated |
| Contact | phosphor bronze Ni plated or stainless steel |
| Pin header | Brass,Tin plated |
| Housing | PBT,UL94V-0 |
| Temp.Range | 30ºC~ + 120ºC |
| MAX Soldering | +250ºC for 5 Sec. |
| Torque | 0.5Nm(3.6lb.in) |
| Strip length | 4. 5- 5mm |
