100A 230V Voltage Protective Device Electric Type Three Phase With Adjustable Limiter

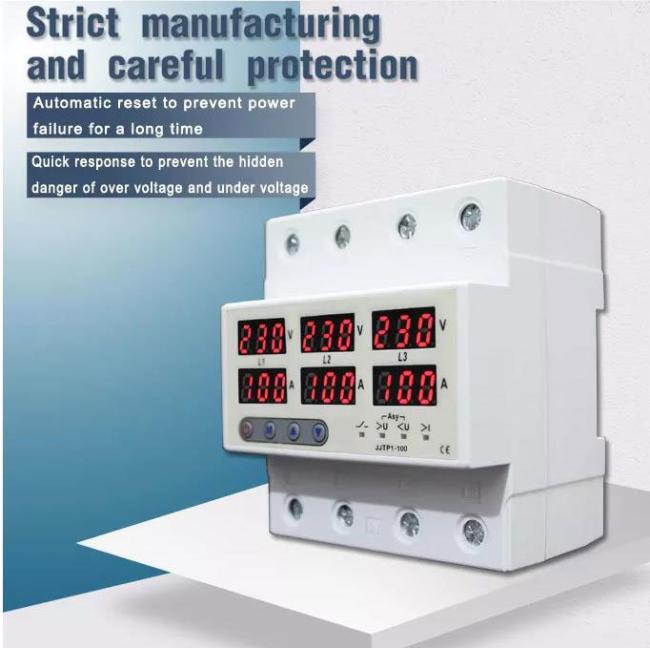

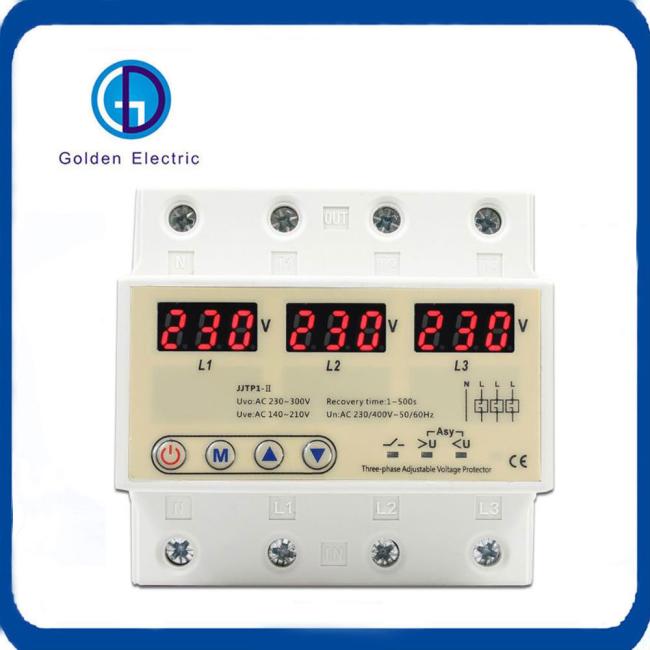

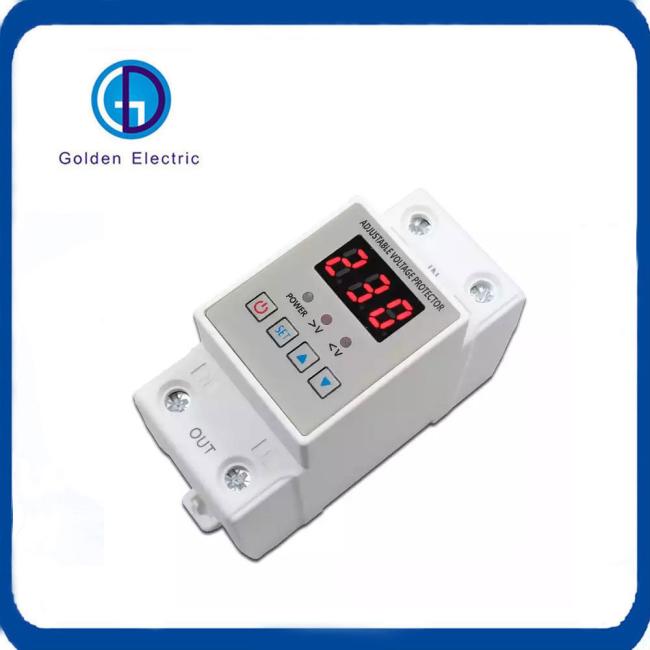

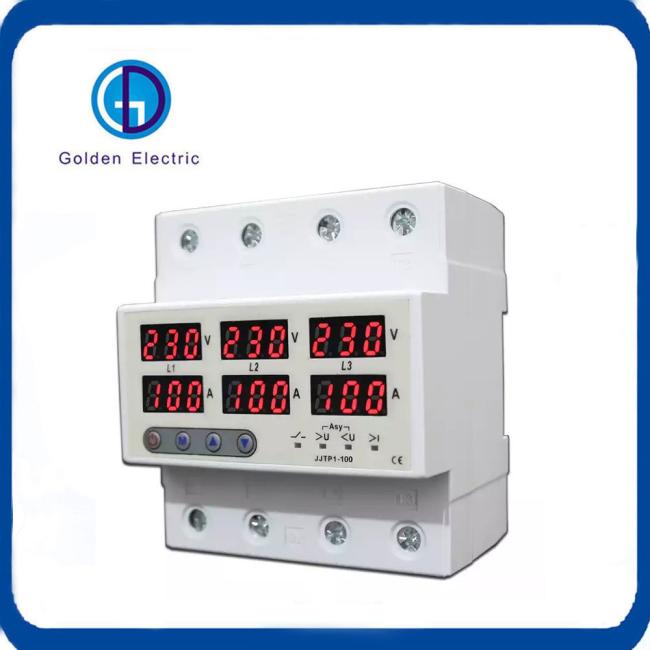

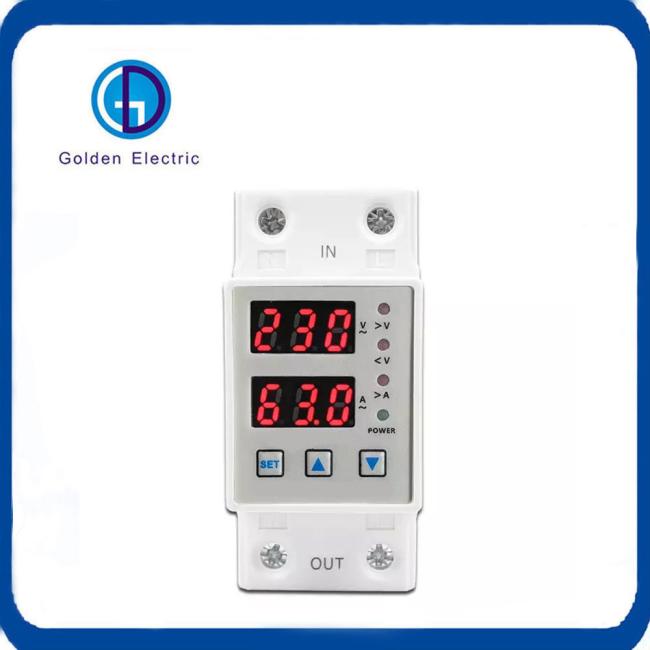

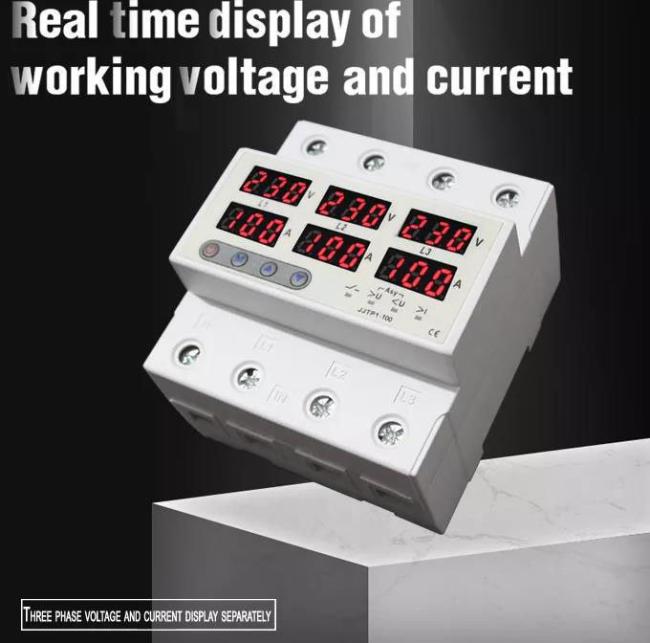

3Phase Voltage and Current Protector
Three phase voltage/current protector integrates over-voltage protection, under-voltage protection, over-current protection and integrated intelligent protector. When there is over-voltage, under-voltage and over-current solid barriers in the line, this product can instantly cut off the circuit, avoiding unnecessary damage to electrical equipment. When the circuit returns to normal, the protector can automatically restore the circuit to make the electrical equipment work normally. The overvoltage value, undervoltage value, overcurrent value, circuit recovery time value and overcurrent protection reset time value of this product can be set by themselves. Adjust the corresponding parameters according to local actual conditions and electrical usage conditions.
1.Over-voltage protection
2.Under-voltage protection

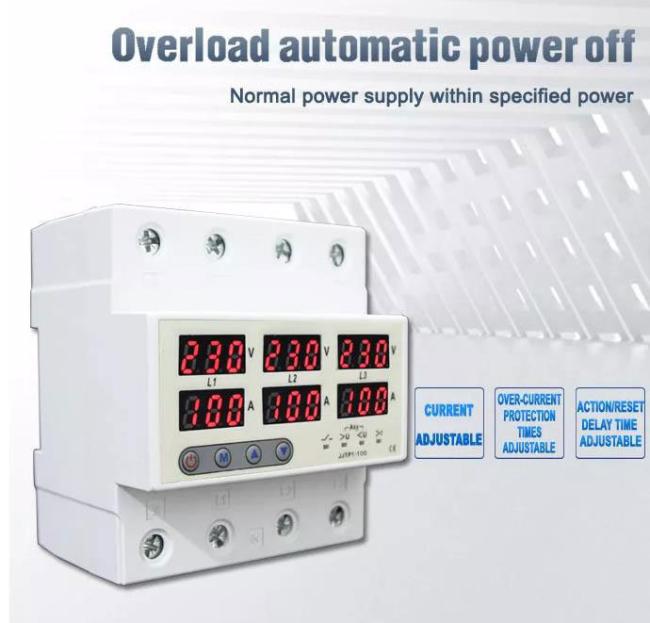

3.Over-current protection
4.Asymmetry protection
5.Phase squence protection
| Code | Technical Parameter | Minimum Protection Value | Maxmum Protection Value | Default Protection Value | Function Description |
| P1 | Power-on delay time | 1s | 500s | 10s | After external power cut,the time needed for power-on when power recovery. |
| U1 | Over-voltage protection value | 230V | 300V | 270V | When the voltage is higher than the set value, the protector will cut off the line. |
| U2 | Over-voltage recovery value | 225V | 295V | 265V | When the voltage is lower than the set value, the protector will automatically reset. |
| U3 | Over-voltage recovery delay time | 1s | 500s | 30s | After voltage recovery,the time needed for automatic reset. |
| U4 | Over-voltage protection action time | 0.1s | 30s | 1.0s | When the voltage is higher than the set value,the time needed for protection action. |
| U5 | Under-voltage protection value | 140V | 210V | 170V | When the voltage is lower the set value, the protector will cut off the line. |
| U6 | Under-voltage recovery value | 145V | 215V | 175V | When the voltage is higher than the set value, the protector will automatically reset. |
| U7 | Under-voltage recovery delay time | 1s | 500s | 30s | After voltage recovery,the time needed for automatic reset. |
| U8 | Under-voltage protection action time | 0.1s | 30s | 1.0s | When the voltage is lower than the set value,the time needed for protection action. |
| U9 | Three phase voltage error value | -9.50% | 9.50% | 0 | Correct the three phase voltage error. |
| U10 | Three phase voltage unbalance protection value | 20V | 99V | 20V | When three phase voltage unbalance value is higher than the set value, the protector will cut off the line. |
| U11 | Three phase voltage unbalance recovery value | 15V | 94V | 20V | When three phase voltage unbalance value is lower than the set value, the protector will automatically reset. |
| U12 | Phase sequence protection switch | OFF | ON | ON | Switch on or off the phase sequence protection function. |
| C1 | Over-current protection value | 1A | 100A | 30A | When the current is higher than the set value, the protector will cut off the line. |
| C2 | Over-current recovery delay time | 1s | 500s | 30s | After current recovery,the time needed for automatic reset. |
| C3 | Over-current protection action time | 0.1s | 30s | 1.0s | When the current is higher than the set value,the time needed for protection action. |
| C4 | Three phase current error value | -9.50% | 9.50% | 0 | Correct the three phase current error. |
| C5 | Times of continuous over current protection | 0 | 20 | OFF | When The times of continuous over-current protection exceeds the set value,the protector will cut off the line,then it needs to be opened manually. |
| Phase-loss protection | ON | One of the three-phase voltages is losing,the protector will cut off the line. |

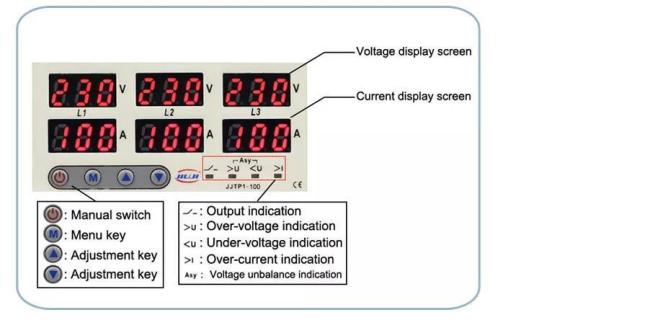

Panel Introduction:

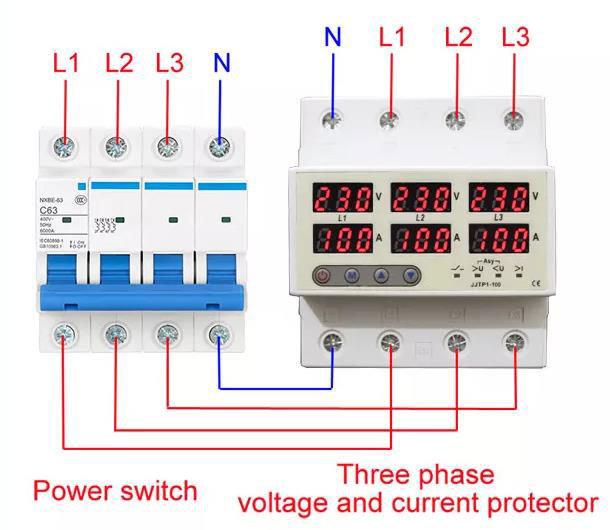

Wiring Diagram:
