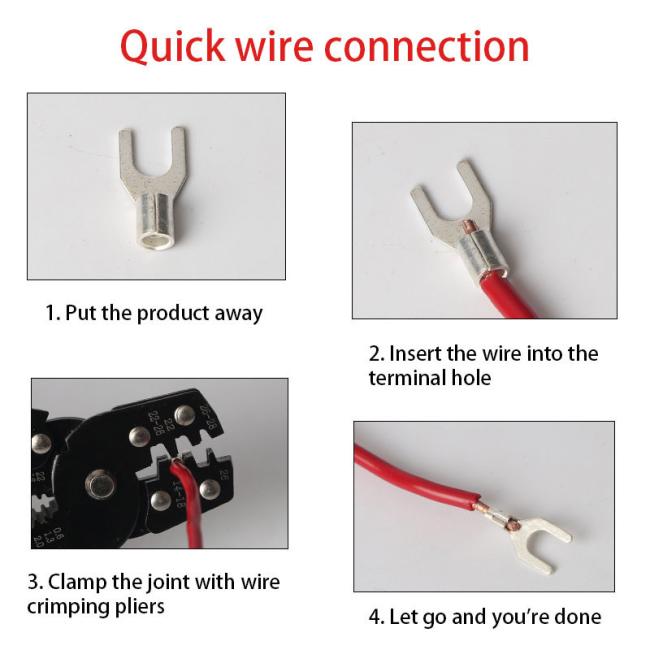

Customization Snb Non-Insulated Spade Bare Terminals Fork U-Shape Type Naked Tinning
GoldenElectricCo., Ltd.
is professional make of Electrical products .Such as distribution box, waterproof plug, socket, wall switch, waterproof plastic ,Aluminum box ,Changeover Switch and disconnecting switch,MC4 Connector.isolator switch.fusebreaker.distribution box,PV combiner box .surge protector, Indicatorlamp,Solar Charge Controller,Industrialplugandsocket,BusbarInsulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.at present we have exported to many countries and have serve these customers with professional electrical solution.
The Insulated Terminal is applied for kinds of industrial and mining enterprises such as steel smelting, prtrochemical industry, electric power, electron, railway, construction, airport, mine, stope, water supply and drain processing factory, port, store, hotel and so on, and it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit. The Insulated Terminals are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European, Americal and so on areas as well,they are quite enjoyed by clients.
| ITEM NO | Cable Size mm² A.W.G | Thickness(mm) | Max Current | USA Screw | Screw Dia d²(mm) | Dimension (mm) | |||||
| W | L | F | E | DΦ | dΦ | ||||||
| SNB 0.5-3 | 0.2-0.75 (24-18) | 0.5 | 10A | #4 | 3.2 | 5.7 | 14.2 | 5.1 | 4.3 | 2.3 | 1.3 |
| SNB 0.5-4 | #8 | 4.3 | 6.4 | 14.2 | 5.3 | ||||||
| SNB 1.25-3 | 0.5-1.5 (22-16) | 0.8 | 19A | #4 | 3.2 | 5.7 | 16 | 6.5 | 5 | 3.4 | 1.7 |
| SNB 1.25-3.7S | #6 | 3.7 | 5.7 | 16 | 6.5 | ||||||
| SNB 1.25-3.7L | #6 | 3.7 | 6.4 | 16 | 6.5 | ||||||
| SNB 1.25-4S | #8 | 4.3 | 6.4 | 16 | 6.2 | ||||||
| SNB 1.25-4M | #8 | 4.3 | 7.2 | 16 | 6.5 | ||||||
| SNB 1.5-4L | #8 | 4.3 | 8.1 | 16 | 6.5 | ||||||
| SNB 1.25-5S | #10 | 5.3 | 8.1 | 16 | 6.2 | ||||||
| SNB 1.25-5L | #10 | 5.3 | 9.6 | 16 | 6.5 | ||||||
| SNB 1.25-6S | 1/4 | 6.4 | 9.6 | 16 | 6.5 | ||||||
| SNB 1.25-6L | 1/4 | 6.4 | 12 | 22 | 11 | ||||||
| SNB 2-3 | 1.5-2.5 (16-14) | 0.8 | 27A | #4 | 3.2 | 5.7 | 16 | 6.5 | 4.8 | 4.1 | 2.3 |
| SNB 2-3.7S | #6 | 3.7 | 5.7 | 16 | 6.5 | ||||||
| SNB 2-3.7L | #6 | 3.7 | 6 | 16 | 6 | ||||||
| SNB 2-4S | #8 | 4.3 | 6.6 | 16 | 6 | ||||||
| SNB 2-4M | #8 | 4.3 | 7.3 | 16 | 6.5 | ||||||
| SNB 2-4L | #8 | 4.3 | 8.1 | 16 | 6 | ||||||
| SNB 2-5S | #10 | 5.3 | 8.1 | 16 | 6.5 | ||||||
| SNB 2-5L | #10 | 5.3 | 9.5 | 16 | 6.5 | ||||||
| SNB 2-6S | 1/4 | 6.4 | 9.5 | 16 | 6.5 | ||||||
| SNB 2-6L | 1/4 | 6.4 | 12 | 22 | 11 | ||||||
Mc4 3 in 1 out Connector Stainless Steel Doudoor -Door Meter Box Distribution Box
Packaging Details: Product Name: Non-Insulated Spade Terminal
Size:10*10*10
Weight:1 kg
Lead time:
| Quantity(pieces) | 1 - 1 | >1 |
| Lead time (days) | 15 | To be negotiated |
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.
Any more query please contact with us, thank you!
