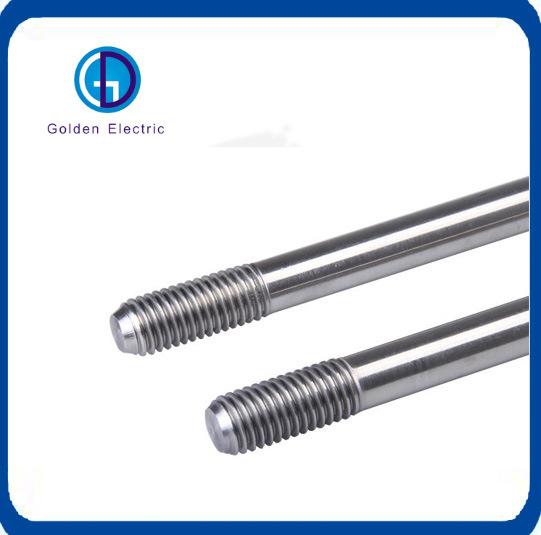

The THREADED grounding rod made of low-carbon steel core combines 99.9% pure electrolytic copper or other materials, which has good conductivity, corrosion resistance and tensile strength, with a service life of more than 30 years. There are three different types of copper clad steel grounding rod, among which the threaded type can effectively slow down the oxidation rate of the grounding rod in the underground. It can be widely used in communication industry, power system, building system, military facilities, railway system, etc., especially for the ground engineering with poor environment and high corrosion resistance requirements. It has a broad market prospect.
Advantages of copper clad steel material:The copper-clad steel grounding rod has the characteristics of both high conductivity motor and steel. The copper-clad steel grounding rod is used in general environment and special environment of wet, salt alkali,acid mud, copper-clad steel grounding rod soil and chemical erosion medium. Generally, anti-corrosion treatment is not required.After copper corrosion, the surface is close to the steel, so that it can better integrate into the earth.
There are three types of products: one point one flat, two thread, thread with a point, in order to adapt to a variety of occasions
One point one flat earth rod:
The one point and one flat earth bar produced by Balic is the one with the highest overall strength among all the earth bar styles. It can be driven into the ground directly by heavy hammer without other accessories, which is convenient and quick to use and has low installation cost.
| Ground rod dimensions and tolerances | ||||
| diameter Φ(mm) | diameter and tolerance d(mm) | length L(mm) | end structure a(mm) | end structure b(mm) |
| 14.2 | 14.2±0.05 | 1200 1500 1800 3000 | 3±1 | 2.5±0.5 |
| 16 | 16±0.05 | 1200 1500 1800 3000 | 3±1 | 3.0±0.5 |
| 17.2 | 17.2±0.05 | 1200 1500 1800 3000 | 4±1 | 3.5±1 |
| 18 | 18±0.05 | 1200 1500 1800 3000 | 4±1 | 3.5±1 |
| 20 | 20±0.05 | 1200 1500 1800 3000 | 5±1 | 4.0±1 |
| 25 | 25±0.05 | 1200 1500 1800 3000 | 5±1 | 5.0±1 |
Two thread earth rod:
| Ground rod dimensions and tolerances | |||||||
| diameter Φ(mm) | diameter and tolerance d(mm) | length L(mm) | screw thread L1(mm) | screw thread L2(mm) | screw thread P(mm) | end structure a(mm) | end structure b(mm) |
| 14.2 | 14.2±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M16 5/8 | 6±1 | 2.5±0.5 |
| 16 | 16±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M18 | 6±1 | 3.0±0.5 |
| 17.2 | 17.2±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | 3/4 | 7±1 | 3.5±1 |
| 18 | 18±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M20 | 7±1 | 4.0±1 |
| 20 | 20±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M22 | 8±1 | 4.0±1 |
| 25 | 25±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M27 | 8±1 | 5.0±1 |
Thread with a point earth rod:
| Ground rod dimensions and tolerances | |||||||
| diameter Φ(mm) | diameter and tolerance d(mm) | length L(mm) | screw thread L1(mm) | screw thread L2(mm) | screw thread P(mm) | end structure a(mm) | end structure b(mm) |
| 14.2 | 14.2±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M16 5/8 | 3±1 | 2.5±0.5 |
| 16 | 16±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M18 | 3±1 | 3.0±0.5 |
| 17.2 | 17.2±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | 3/4 | 4±1 | 3.5±1 |
| 18 | 18±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M20 | 4±1 | 4.0±1 |
| 20 | 20±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M22 | 5±1 | 4.0±1 |
| 25 | 25±0.05 | 1200 1500 1800 3000 | 35 (+3,-2) | 37 (+3,-2) | M27 | 5±1 | 5.0±1 |
Copper Screw Terminal Block Connecting Crimping Terminal Cable Lug
Packaging Details: woven belt+Iron pallet+container
Lead time:
| Quantity(pieces) | 1 - 1000 | >1000 |
| Lead time (days) | 15 | To be negotiated |
