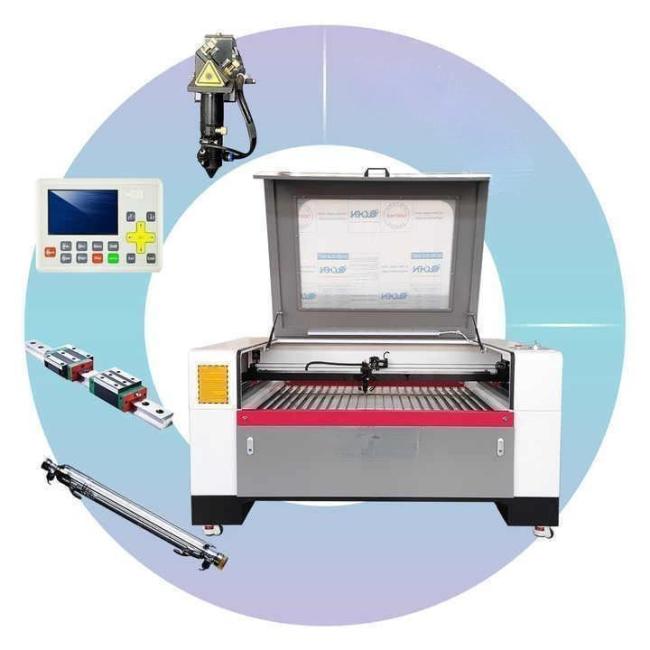

Wood Acrylic Board Plywood Laser Engraving Machine 1390 With Ruida Controller
1390 Ruida Controller Wood Acrylic Board Plywood Cnc Laser Engraver
Product Descriptions:
The non-metallic engraving machine can perform laser processing on non-metallic materials such as bamboo, crystal, horn, paper, plexiglass, marble, cloth, leather, rubber, plastic, etc. Leather, leather cutting and surface engraving in the clothing, embroidery, cloth toys, home furnishing fabrics, handbags, gloves, and toy industries. Precision cutting of non-metallic sheets such as acrylic boards and medium-density decorative boards in the crafts, models, advertising, decoration, electrical appliances, and plastic industries.
| Mode | MT-1390 |
| Work Area (mm) | 1300*900 |
| Laser Generator | Water cooled Co2 glass sealed laser tube |
| Laser Power | 30W/150W(Optional) |
| Drive Motors | Micro stepping stepper motor system |
| Control System | 64 Bit DSP |
| PC Interface | USB 2.0 Port,USB Disk |
| Cutting Speed | 0-36000mm/min |
| Engraving Speed | 0-64000mm/min |
| Resolution Ratio | <4000dp |
| Power Supply | AC110V/220V-240V±10%,50HZ |
| Location Precision | <0.05mm |
| Operating Temperature | 0°C-45℃ |
| Graphic Format Supported | HPGL(PLT),JPGE,PCS,TGA,DST DXP,DXF,DWG,CDR |
| Optional Engraving Device | (cylinder)Dia(10~100)(50~300)mm |
| Dual Laser Head | No |
| Gross Power | <1250W |
| Engraving Parts Thickness (mm) | 0-140 |
| Weight (kg) | 580 |
| Warranty | 12 Months |
Advantages:
Imported linear guide rails and high-speed stepper motors and drivers make the cutting effect smooth and ripple-free;
The integrated frame structure design makes the machine run stably and noiselessly;
The operation is simple, the engraving sequence and processing levels can be arbitrarily controlled, and partial or all one-time output of laser power, speed, and focal length can be adjusted flexibly;
Open software interface, compatible with Autocad, Coreldraw, Wentai Engraving, Photoshop and other vector design software;
Equipped with a water cutoff protector to better protect the laser and extend the life of the laser. An optional foot switch makes your operation easier and faster.
Exquisite appearance design; super-strength steel plate, industrial grade; effectively guaranteeing the smooth operation and life of the equipment;
Double guide rail operation; belt drive; optional configuration of honeycomb/bar/flat/lift;
Patented technology: unique upper and lower exhaust, smoke and dust removal system; air blowing protection; engraving and cutting materials.
