4 Pin M8 Connector Female Field Wireable Waterproof IEC 61076-2-104
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
4 Pin M8 Connector Female Field Wireable Waterproof IEC 61076-2-104
Product Attributes
| Attribute | Value |
|---|---|
| Product name | M8 Field Wirable Assembly Connector |
| Contact nut material | Brass, nickle-plated |
| Contact carrier material | PA, black |
| Housing material | PBT/PA, black |
| Seal material | FPM/FKM |
| Insulation Resistance | ≥ 100MΩ |
| Ambient temperature | -25~+85℃ |
| Degree of protection | IP67 |
Product Description
IEC 61076-2-104 M8 Connector Field-wireable Assembly Connectors 4 Pin Female Waterproof
The M8 connector plays an important role in electronic devices, especially in situations that require stable signal transmission. This connector features a waterproof design, ensuring stable signal transmission even in outdoor or humid environments. Moreover, its male and female pin design allows for easy and flexible combinations of 3 to 6 pins, making it very convenient to use.
Technical Data
| Standard | IEC 61076-2-104 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | PBT/PA, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

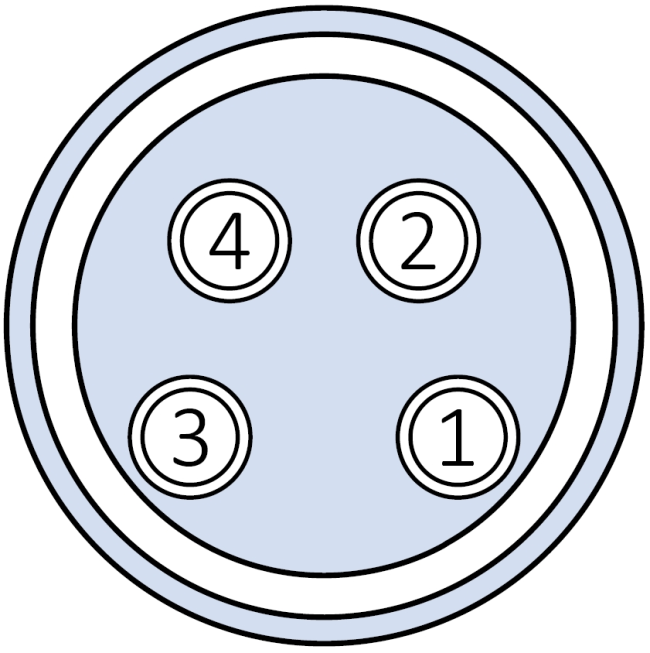

| Pin assignment | Connection method | Coding | Rated current | Voltage | Cable outlet | External cable diameter | Model No. |
|---|---|---|---|---|---|---|---|
 |
Screw connection | A | 3A | 60V | Straight | 3.5-5mm | H0804F-0 |
