Angled M8 Circular Connector Female 4 Pin
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
M8 Circular Connector Angled Female 4 Pin A Code PVC Molded Cable
Product Description
M8 connector installation: ensure that the connectors are compatible with the devices and cables being used. Align the connectors properly before mating to avoid damaging the pins or contacts.Tighten the threaded locking mechanism securely to ensure a reliable connection and maintain the IP rating.
Technical Data
| Standard | IEC 61076-2-104 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

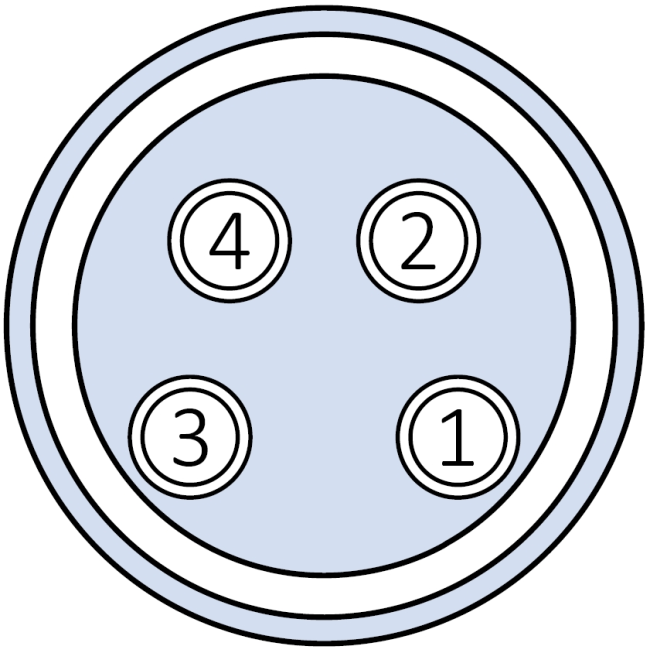

| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
 |
1=BN 2=WH 3=BU 4=BK | A | 3A | 60V | 4x0.25 (4x24AWG) PVC, black | Angled | 2M | M0804FA-2/POOR |
| 5M | M0804FA-5/POOR | |||||||
| 10M | M0804FA-10/POOR |
*Cable length:2/5/10m,other cable lengths are available on request! Freely selectable cable material(P00R:black,PVC ,P01R:black,PUR)
