Unshielded M12 5 Pin Female Connector Pre Assembled 5M Cable IP67 Straight PVC
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
Unshielded M12 5 Pin Female Connector Pre Assembled 5M Cable IP67 Straight PVC
Product Attributes
| Attribute | Value |
|---|---|
| Description | M12 Pre-assembled Cable Connector |
| Length | 2M/5M/10M |
| Housing Material | TPU, black |
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickle-plated |
| Contact resistance | ≤ 5mΩ |
| Ambient temperature | -25~+85℃ |
| Wire Gauge | 5×0.34 (5×22AWG) PVC, black |
Product Description
M12 Connector Pre-assembled 5 M Cable Unshielded 5 Pin IP67 Female Straight PVC
Industrial Automation: M12 connectors are extensively used in industrial automation systems for connecting sensors, actuators, and control devices. Their robust design ensures reliable connections in environments with high vibration, dust, and moisture.
Technical Data
| Standard | IEC 61076-2-101 |
|---|---|
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

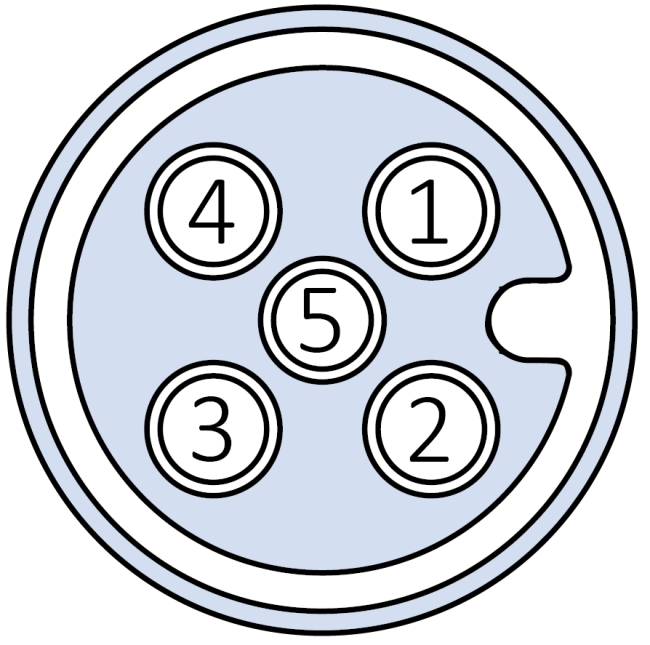

Pin Assignment
| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
|---|---|---|---|---|---|---|---|---|
 |
1=BN 2=WH 3=BU 4=BK 5=GY |
A | 4A | 60V | 5×0.34 (5×22AWG) PVC, black |
Straight | 2M | M1205F-2/P00R |
| 5M | M1205F-5/P00R | |||||||
| 10M | M1205F-10/P00R |
