M12 Connector 8 Pin Straight with 2 Meter PVC Cable Female Circular Connectors
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
M12 Connector 8 Pin Straight with 2 Meter PVC Cable Female Circular Connectors
Product Overview
M12 connector with pre-assembled cable designed for industrial applications requiring reliable connectivity in demanding environments.
Key Features
- 8-pin straight configuration with 2 meter PVC cable
- Female circular connectors with IP67 protection
- Designed for food and beverage industry washdown environments
- Stainless steel construction withstands cleaning agents
Technical Specifications
| Attribute | Value |
|---|---|
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

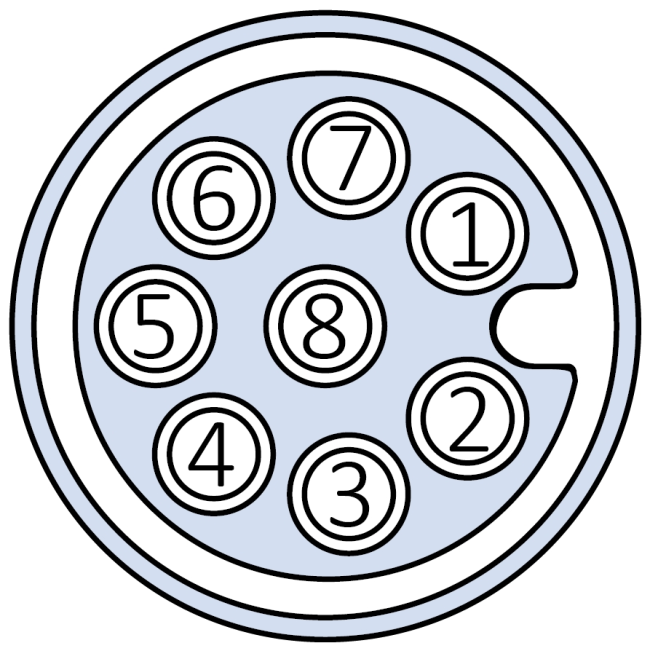

Pin Configuration & Cable Details
| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
|---|---|---|---|---|---|---|---|---|
 |
1=WH 2=BU 3=GN 4=YE 5=GY 6=PK 7=BU 8=RD |
A | 2A | 30V | 8×0.25 (8×24AWG) PVC, black | Straight | 2M | M1208F-2/P00R |
| 5M | M1208F-5/P00R | |||||||
| 10M | M1208F-10/P00R |
