Moulded Cable M8 8 Pin Male Connectors With A Code 1.5A 2M Cable Straight
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
Moulded Cable M8 8 Pin Male Connectors With A Code 1.5A 2M Cable Straight
Product Attributes
| Attribute | Value |
|---|---|
| Type | Contactor |
| Description | M8 Pre-assembled Cable Connector |
| Cable | PVC Black |
| Cable Outlet | Straight |
| Wire Gauge | 8×0.14 (8×26AWG) |
| Gender | Male |
| Degree of Protection | IP67 |
| Cable Length | Customized |
Product Description
M8 Connectors 8 Pin with Moulded Cable A Code Male 1.5A 2M Cable Straight
M12 connectors are typically made from high-strength materials such as nickel-plated brass, stainless steel, or durable plastics (like polyamide) for the housing. The contacts are usually made from gold-plated brass or bronze to ensure excellent electrical conductivity and corrosion resistance. Rubber or silicone gaskets and O-rings are used for sealing to achieve high ingress protection ratings.
Technical Data
| Standard | IEC 61076-2-104 |
|---|---|
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

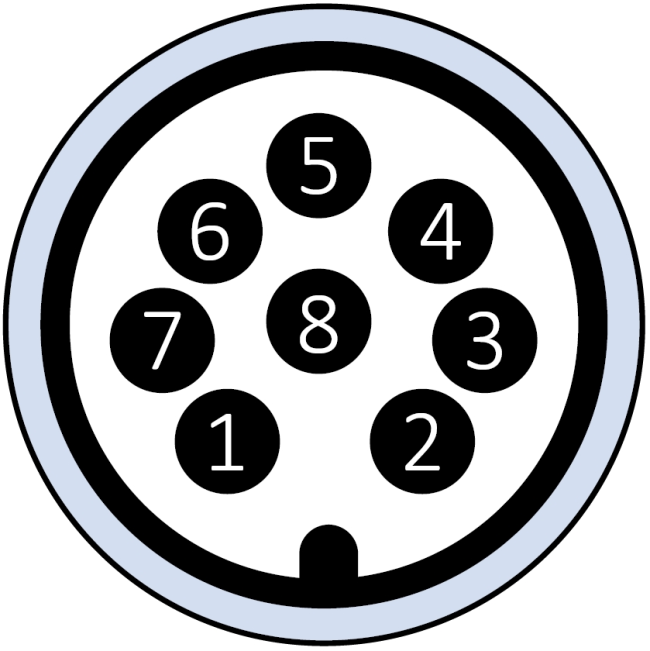

Pin Assignment
| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
|---|---|---|---|---|---|---|---|---|
 |
1=WH 2=BN 3=GN 4=YE 5=GY 6=PK 7=BU 8=RD |
A | 1.5A | 30V | 8×0.14 (8×26AWG) PVC, black |
Straight | 2M 5M 10M |
M0808M-2/POOR M0808M-5/POOR M0808M-10/POOR |
