Flange M12 Connector Female 5 Pin Panel Mounted Straight IEC 61076-2-101
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
Flange M12 Connector Female 5 Pin Panel Mounted Straight IEC 61076-2-101
Product Specifications
| Attribute | Value |
|---|---|
| Type | M12 connector |
| Description | Male flange connectors |
| Voltage | 250V |
| Contacts | Solder cup |
| Coding | A |
| Pin | 3 |
Product Description
M12 Panel Mount Connector Female 5 Pin Straight Flange Connectors IEC 61076-2-101
- Female 5-pin M12 panel mount connector with screw locking front mounting
- IP67 protection rating: dustproof and complete protection against contact
- Protection against permanent submersion up to 1 meter water depth
- Suitable for areas with pollution degree 3 (conductive contamination or condensation)
- Operating temperature range: -25°C to +85°C
- Rated voltage: 60V | Rated current: 4A
- Complies with IEC 61076-2-101 standard
Technical Data
| Standard | IEC 61076-2-101 |
|---|---|
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
Configuration Details

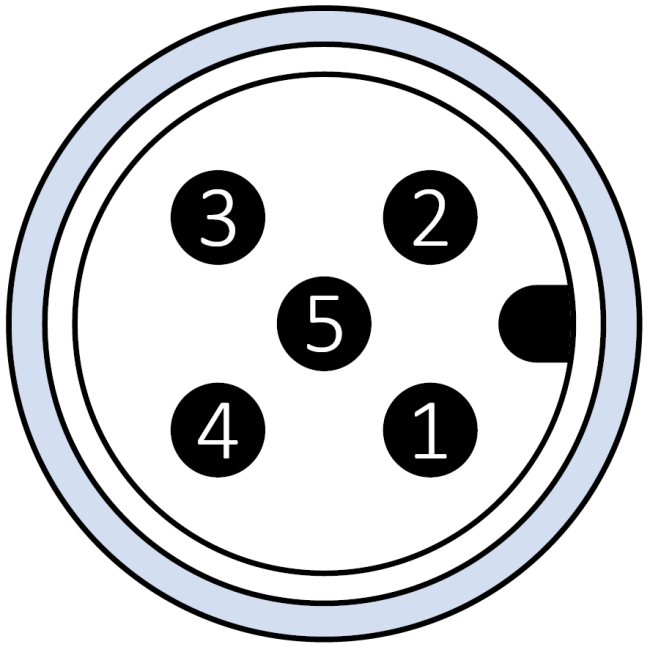

| Pin assignment | Mounting type | Coding | Rated current | Voltage | Cable outlet | Contacts termination | Part No. |
|---|---|---|---|---|---|---|---|
 |
Front mounting | A | 4A | 60V | Straight | Solder cup | F1205M-SF/M16 |
For additional requirements, please contact the seller.
