Flange Panel Mount M12 Connector Male 5 Pin Female Rear Mounting IP67
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
Flange Panel Mount M12 Connector Male 5 Pin Female Rear Mounting IP67
Product Specifications
| Attribute | Value |
|---|---|
| Type | M12 connector |
| Description | Male flange connectors |
| Voltage | 60V |
| Contacts | Solder cup |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
Product Overview
The M12 Panel Mount Connector Male 5 Pin with Female Rear mounting and IP67 rating offers reliable performance for industrial applications. This flange connector features a 5-pin design that ensures stable signal transmission in complex electrical systems.
- IP67 protection rating provides excellent dust and water resistance
- Suitable for use in pollution level 3 environments
- Maintains stable operation in conductive or condensing conditions
- Compliant with IEC 61076-2-101 standard for broad compatibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | Brass, nickel-plated |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
Configuration Details

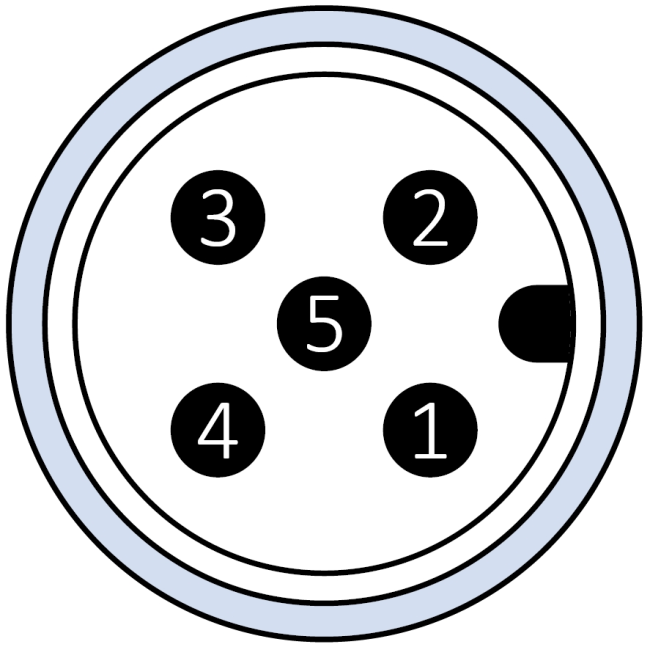

| Pin assignment | Mounting type | Coding | Rated current | Voltage | Cable outlet | Contacts termination | Part No. |
|---|---|---|---|---|---|---|---|
 |
Rear mounting | A | 4A | 60V | Straight | Solder cup | F1205M-SR/M16 |
