M12 Circular Connector Female 1m Pre-molded Cable IP67 Waterproof 3 Pin A-coding
Price:
To Be Confirm
MOQ:
50
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
M12 Circular Connector Female 1m Pre-molded Cable IP67 Waterproof 3 Pin A-coding
Key Specifications
| Attribute | Value |
|---|---|
| Standard | IEC 61076-2-101 |
| Pollution degree | 3 |
| Mating cycles | >100 |
| Rated current | 4A |
| Seal material | FPM/FKM |
| Cable outlet | Straight |
| Contact resistance | ≤5mΩ |
| Cable length | 1M/2M/3M/5M/10M/15M |
Product Overview
The M12 Circular Connector is a high-performance, IP67-rated waterproof solution designed for demanding industrial environments. With its 4A current rating and A-coding configuration, this connector delivers reliable performance in factory automation, robotics, machine control, and automotive applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Ambient temperature | -25~+85℃ |
| Degree of protection | IP67 |

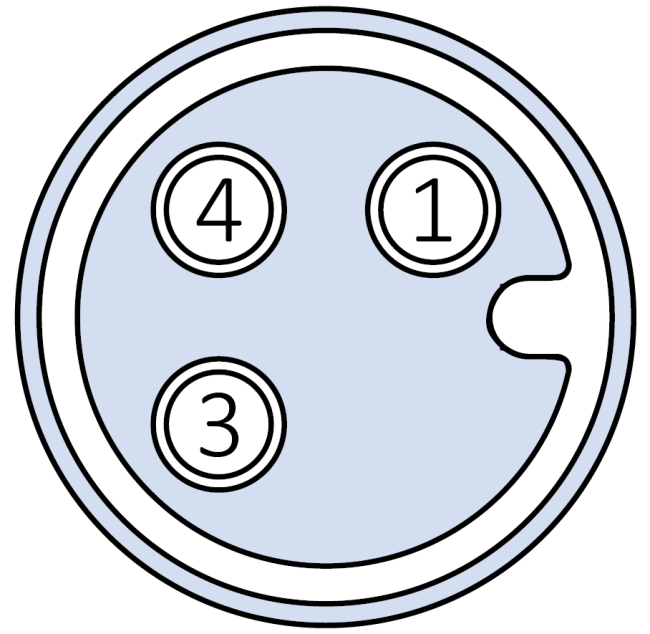

Pin Configuration
| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
|---|---|---|---|---|---|---|---|---|
 |
1=BN 3=BU 4=BK |
A | 4A | 250V | 3×0.34 (3×22AWG) PVC, black |
Straight | 1M | M1203F-1/P00K |
Industrial Applications
- Factory automation systems
- Robotics and motion control
- Production line equipment
- Sensor and actuator connections
- Food and pharmaceutical processing equipment
- Warehouse automation systems
Key Features
- Rugged IP67 waterproof construction
- Gold-plated contacts for reliable connections
- Straight cable outlet for easy installation
- Compact design for space-constrained applications
- Multiple cable length options available
- Compliant with IEC 61076-2-101 standard
Customization Options
The KRONZ M1203F-1/P00K waterproof connector offers flexible configuration options to meet specific application requirements. Manufactured in Guangdong, China, this high-quality industrial connector is built to withstand harsh environments while maintaining reliable electrical performance.
