Industrial M12 Connector Customized Cable 3 Pin Female KRONZ Cable Connector
Price:
Negotiable
MOQ:
50
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
Industrial M12 Connector Customized Cable 3 Pin Female KRONZ Cable Connector
Key Specifications
| Attribute | Value |
|---|---|
| Pin | 3 |
| Contact carrier material | PA, Black |
| Degree of protection | IP67 |
| Mating cycles | >100 |
| Cable length | 1M/2M/3M/5M/10M/15M |
| Housing material | TPU, Black |
| Ambient temperature | -25~+85℃ |
| Wire gauge | 3×0.34 (3×22AWG) PVC, Black |
Product Overview
This industrial-grade M12 connector features a brass contact nut with nickel plating for enhanced corrosion resistance, ensuring reliable performance in demanding environments. With an IP67 protection rating, it is completely dustproof and can withstand temporary immersion in water up to 1 meter deep for 30 minutes.
The connector's high insulation resistance (≥100MΩ) prevents electrical leakage, while the durable TPU housing provides excellent mechanical protection. Available in straight cable configuration for easy system integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |

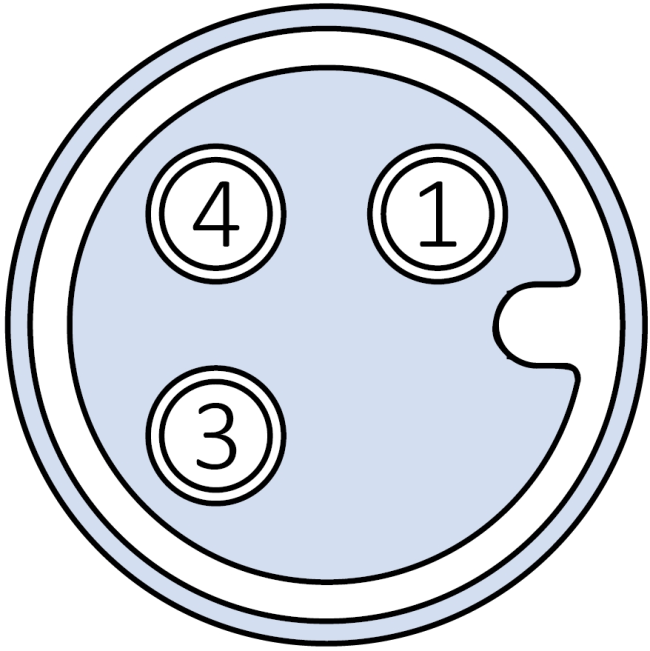

Pin Configuration
| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
|---|---|---|---|---|---|---|---|---|
 |
1=BN 3=BU 4=BK |
A | 4A | 250V | 3×0.34 (3×22AWG) PVC, black | Straight | 3M | M1203F-3/P00K |
Support & Services
Our technical team provides comprehensive support for product specifications, installation guidance, and troubleshooting. Additional services include:
- Maintenance and repair services
- Custom design and engineering solutions
- On-site training programs
Packaging & Shipping
Packaging: Each connector is individually packed in plastic bags within protective cardboard boxes containing cushioning material.
Shipping: Orders processed within 3-5 business days. Multiple shipping options available (Express, Sea, Truck, Train) via carriers including DHL, FedEx, and UPS. Tracking information provided upon shipment.
