IP67 Waterproof TPU M8 3-Pin Male Straight Connector for Unshielded Sensor Cable
Price:
Negotiable
MOQ:
50
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
IP67 Waterproof TPU M8 3-Pin Male Straight Connector for Unshielded Sensor Cable
Product Attributes
| Attribute | Value |
|---|---|
| Housing material | TPU, Black |
| Degree of protection | IP67 |
| Cable outlet | Straight |
| Shielded | No |
| Mating cycles | >100 |
| Gender | Male |
| Ambient temperature | -25~+85℃ |
| Application | Sensor |
Product Description
The M8 cable connector provides superior protection against environmental factors with IP67 rating and pollution degree 3 certification. Engineered for industrial applications, it maintains reliable performance across a wide temperature range (-25~+85℃).
Technical Specifications
| Standard | IEC 61076-2-104 |
|---|---|
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

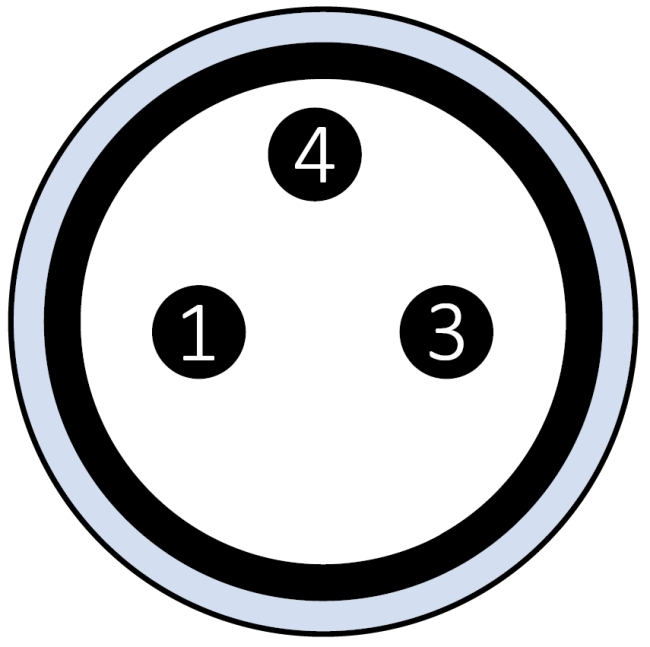

Pin Configuration
| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
|---|---|---|---|---|---|---|---|---|
 |
1=WH 3=BU 4=BK |
A | 3A | 60V | 3×0.25 (3×24AWG) PVC, black |
Straight | 1M | M0803M-1/P00K |
Industrial Applications
- Industrial automation systems and robotics
- Sensor networks in manufacturing environments
- Automotive electronics and sensor connections
- Aerospace electronic device interfaces
- High-performance equipment requiring reliable micro-connections
Customization Options
We offer comprehensive customization services including:
- Gender options: female and male connectors
- Pin configurations: 3pin/4pin/5pin/6pin/8pin
- Coding variations: A code/B code/D code/X code
- Application-specific modifications
Contact our sales team to discuss your customization needs:
Email: sales02@kronz.cn
Email: sales02@kronz.cn
